Specifications
1.Material:Steel,Galvanized steel,Galvalume Steel2.Thickness:0.8mm-1.2mm
3.Cover width:688/750mm
4.Length:costumized

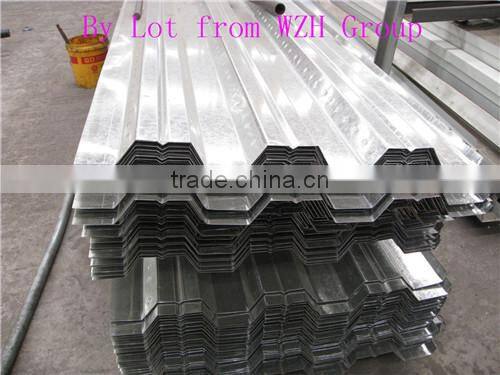

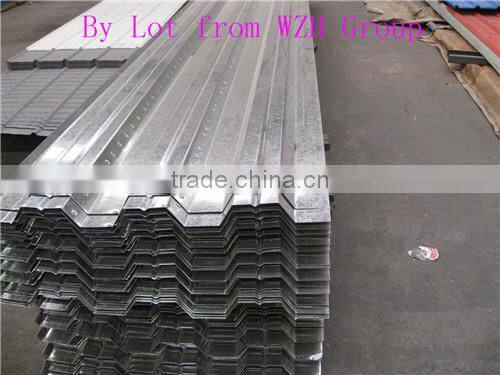

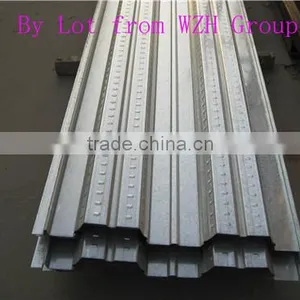

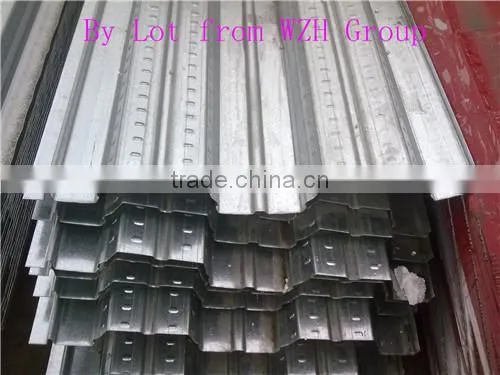

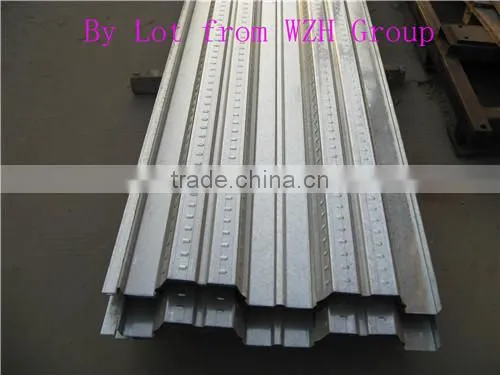

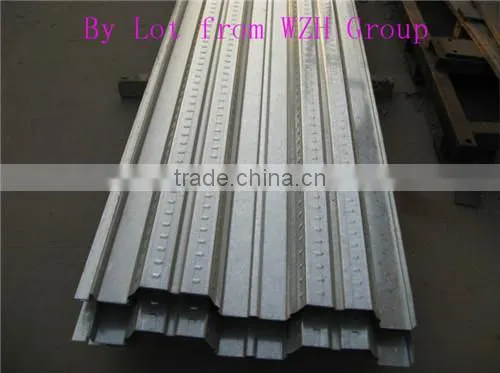

Galvanized steel floor decking
Galvanized steel floor decking is the permanent upholding slab used in the steel structure buildings, bearing the construction load and concrete weight. In using stage, it will be fixed above the steel beam and used at the bottom of the reinforcing steel bar and will generated composite effect after concrete reaches the strength.
Specifications
Material:Steel,Galvanized steel,Galvalume Steel
Thickness:0.8mm-1.2mm
Cover width:688/750mm
Length:any length
Specification
No |
Item |
Spefication |
|
1 |
Total width |
750mm |
688mm |
2 |
Length |
1m to 11.8m |
1m to 11.8m |
3 |
Zinc coating |
80g/m2 to 180g/m2 |
80g/m2 to 180g/m2 |
4 |
Thickness |
0.7mm to 1.5mm |
0.7mm to 1.5mm |
5 |
Standard |
ASTM,JIS,GB,DX51D |
ASTM,JIS,GB,DX51D |
6 |
wave pitch |
51mm |
76MM |
7 |
wave space |
250MM |
344MM |
3.Technique index:
YX750 | ||
Thickness |
Section of inertia cm4/m |
Section of resistance cm3/m |
0.7mm |
43.47 |
14.34 |
0.8mm |
46.69 |
16.39 |
1.0mm |
62.11 |
20.48 |
1.2mm |
74.53 |
24.59 |

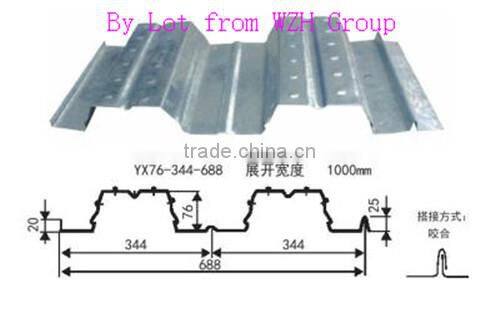

YX688 | ||
Thickness |
Section of inertia cm4/m |
Section of resistance cm3/m |
0.7mm |
80.19 |
20.53 |
0.8mm |
91.62 |
23.46 |
1.0mm |
119.38 |
30.61 |
1.2mm |
142.01 |
36.98 |
Application:
Outdoor: roof, roof structure, surface sheet of balcony, frame of window, door, door of garage, roller shutter door, booth, Persian blinds, cabana, refrigerated wagon and so on.
Indoor: door, isolater, frame of door, light steel structure of house, sliding door, folding screen, ceiling, internal decoration of toilet and elevator.
Notes for processing of color coated steel sheet
Processing flow
Manual Uncoiler — Entry Beach — Roll Forming Machine — Automatic Shearing Mechanism — Computer Control Cabinet —Run-out Tables

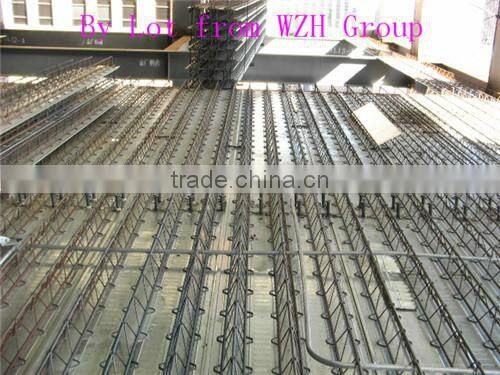

The installation way:
A : By weldeding procedure, the steel decking floor sheet is fusion welded on the steel beam
B : The connections of steel floor decking hseet is fixed by clamp
C : Nails is fixed on the composite wind beam by welding gun
D : Department will meet with a gun fixation nail scissors
E : colligate steelfabric as the desgin requirement
F : bolt pouring
Advantages
1) light in weight, high intensity,huge loading capacity as well as good anti-earthquake capacity
2) simple in construction operation, easy to install
3) can take place of conventional templates and eliminate the disadvantages of the traditional
4) can act as a part of the structure of weight bearing, to reduce the cost of material
5) enable easy operation in reinforecement, wiring, piping floor decking steel sheet is roll formed by roll forming machine, mainly using galvanized steel, at thickness 0.8-1.2mm, simple shape with high rip and high strength.
6) Put the panel above the welded wire net, fill cement between them
