High quality zinc coated corrugated steel floor decking sheet for construction
- 5000 Ton / Tons per Month
- Tianjin xingang port
- T/T L/C D/P D/A Credit Card PayPal
- standard export seaworthy packing construction materials composite floor decking steel sheets,steel floor decking sheet
- Wear resistant construction materials composite floor decking steel sheets,steel floor decking sheet
- Processing available construction materials floor decking steel sheets composite floor decking sheets,steel floor decking sheet
- Thin steel sheet construction materials composite floor decking steel sheets,steel floor decking sheet
- excellent export packing building materials composite floor decking steel sheets,steel floor decking sheet
- Uniform surface finish construction materials composite floor decking steel sheets,steel floor decking sheet
Product Details
Place of Origin: | Hebei, China | Brand Name: | WZH | Model Number: | WZH-YX-floor decking |
Material: | Other, Galvanized Sheet, Steel,Galvanized steel,Galvalume Steel |
Product Description

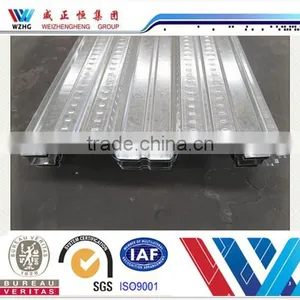

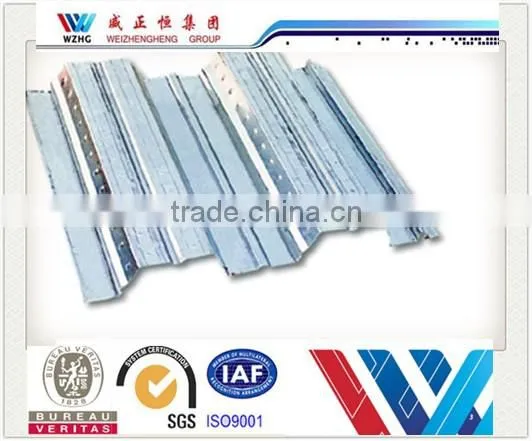

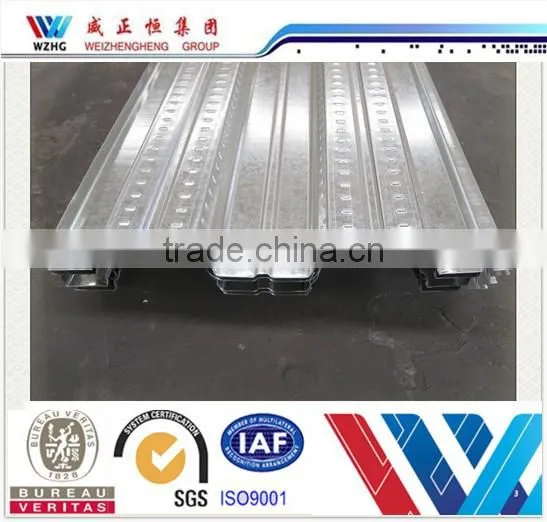

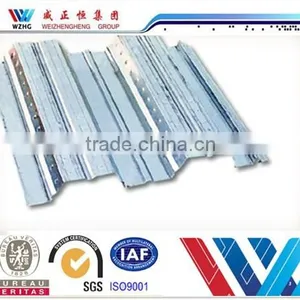

High quality zinc coated corrugated steel floor decking sheet for construction
Specification
1. High tensile floor decking sheets
2. Thickness: 0.8 mm, 1 mm, 1.2 mm
3. Yield Strength: 240 Mpa, 350 Mpa, 550 Mpa
4. Pre coated galvanized under side giving durable
5. Attractive appearance and minimum future maintenance
composite floor decking sheets are the permanent upholding slab used in the steel structure buildings, bearing the construction load and concrete weight. steel floor decking sheet In using stage, it will be fixed above the steel beam and used at the bottom of the reinforcing steel bar and will generated composite effect after concrete reaches the strength.
Model WZH-AC-2015-FD688
Floor decking: YX76-344-688
Total width: 688mm
Length: 1m to 11.8m
Zinc coating: 80g/m2 to 180g/m2
Standard: ASTM,JIS,GB,DX51D
wave pitch: 76mm
wave space: 344mm
Model WZH-AC-2015-FD720
Floor decking: YX51-240-720
Total width: 720mm
Length: 1m to 11.8m
Zinc coating: 80g/m2 to 180g/m2
Standard: ASTM,JIS,GB,DX51D
wave pitch: 51mm
wave space: 240mm
Model WZH-AC-2015-FD600
Floor decking: YX75-200-600
Total width: 600mm
Length: 1m to 11.8m
Zinc coating: 80g/m2 to 180g/m2
Standard: ASTM,JIS,GB,DX51D
wave pitch: 75mm
wave space: 200mm
Model WZH-AC-2015-FD1025
Floor decking: YX51-342-1025
Total width: 1025mm
Length: 1m to 11.8m
Zinc coating: 80g/m2 to 180g/m2
Standard: ASTM,JIS,GB,DX51D
wave pitch: 51mm
wave space: 342mm
Other floor decking sheets from WZH Group
YX750 | ||
Thickness | Section of inertia cm4/m | Section of resistance cm3/m |
0.7mm | 43.47 | 14.34 |
0.8mm | 46.69 | 16.39 |
1.0mm | 62.11 | 20.48 |
1.2mm | 74.53 | 24.59 |
YX688 | ||
Thickness | Section of inertia cm4/m | Section of resistance cm3/m |
0.7mm | 80.19 | 20.53 |
0.8mm | 91.62 | 23.46 |
1.0mm | 119.38 | 30.61 |
1.2mm | 142.01 | 36.98 |
Application:
Outdoor: roof, roof structure, surface sheet of balcony, frame of window, door, door of garage, roller shutter door, booth, Persian blinds, cabana, refrigerated wagon and so on.
Indoor: door, isolater, frame of door, light steel structure of house, sliding door, folding screen, ceiling, internal decoration of toilet and elevator.
Notes for processing of color coated steel sheet
Processing flow
Manual Uncoiler — Entry Beach — Roll Forming Machine — Automatic Shearing Mechanism
— Computer Control Cabinet —Run-out Tables
The installation way:
A : By weldeding procedure, the steel decking floor sheet is fusion welded on the steel beam
B : The connections of steel floor decking hseet is fixed by clamp
C : Nails is fixed on the composite wind beam by welding gun
D : Department will meet with a gun fixation nail scissors
E : colligate steelfabric as the desgin requirement
F : bolt pouring
Advantages
1) light in weight, high intensity,huge loading capacity as well as good anti-earthquake capacity
2) simple in construction operation, easy to install
3) can take place of conventional templates and eliminate the disadvantages of the traditional
4) can act as a part of the structure of weight bearing, to reduce the cost of material
5) enable easy operation in reinforecement, wiring, piping floor decking steel sheet is roll formed by roll forming machine, mainly using galvanized steel, at thickness 0.8-1.2mm, simple shape with high rip and high strength.
6) Put the panel above the welded wire net, fill cement between them
Our service:We can supplier a service for the follow products Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet , Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel the best service :
1.Sample free.the freight cost will be paid by customers.
2.You are very welcome to visit our factory before the order,or during the prodction or after the production before loading.
3.We are very professional in all kinds of different payment terms,FOB,CIF,CFR,CIP by sea container or by train.
4.For the steel frame you are very welcome to offer your own design,or you give us your ideas,we can supplies our design,the production,the loading all for you.
WZH GROUP
We are a group company, which has the follow filiales
Weizhengheng Group covers an area of over 48,000 sq.m., with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.
Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd,Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd,Shandong Office, Manzhouli Office and Uganda Office.
We are the china supplier of the follow metal building materials :
Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet,Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel,Glass fiber mat.
