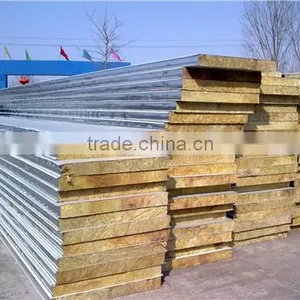

Glass fiber Sandwich panels

Brief Introduction

The usual sandwich panels include rock wool Sandwich panel,  EPS sandwich panels,  PU Sandwich Panel, glass fiber sandwich pannels. The up & down surface of this panel is Galvanized & Prepainted steel sheets, core material is rock rood, EPS, PU, and glass fiber. It is formed by heating, foaming & laminating. It is the best material for temperature keeping and sound insulation. It is widely used as the wall or roof for cold storage, industrial workshop, public building etc.

Specifications introduce

(1)Core Material: Rock Wool, EPS, PU; Surface Materials: Galvanized Steel sheets or Prepainted Steel sheets.

(2)Wall Thickness: 40, 50, 60, 80,100,120,150,180,200,250mm

(3)Max. Width: 1200mm

(4)Length: according to client's demands, engineering requirements and shipment conditions
(5) Application: for ceiling & wall, partition wall

(6) Widely used in common steel structure and storey adding projects,e.g. adding storey to small steel structure industrid factory building worehouse,suburbon temporary office,residentid quarters,school,hospital,etc.

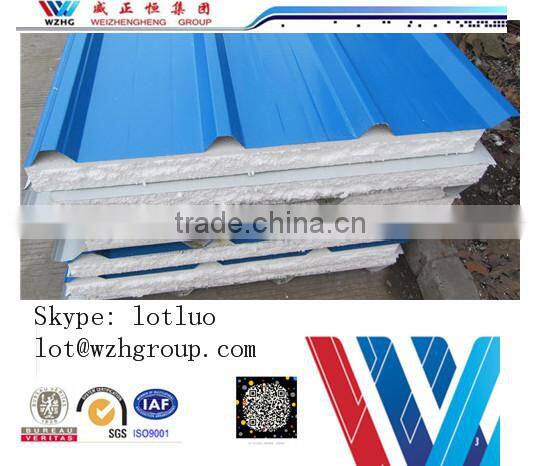

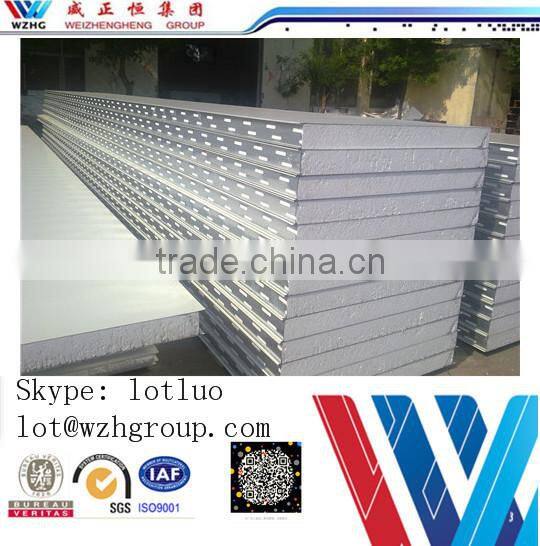

EPS sandwich panel

Characteristics:

1. Our EPS sandwich panel is lightweight

2. The sandwich panels have low water absorption

3. All our panels possess good insulation and heat transfer resistance

4. The EPS sandwich panel can be used in low temperature environments

Specifications:

1. Width of panels 950mm/1150mm

2. Galvanized sheet steel thickness 0.30 to 0.6mm

3. Total thickness 50 to 200mm

4. Length of panelscustomized

5. Resistance of heat-transfer process 0.03 to 0.04W/m.K

6. Density 8 to 20kg/m3

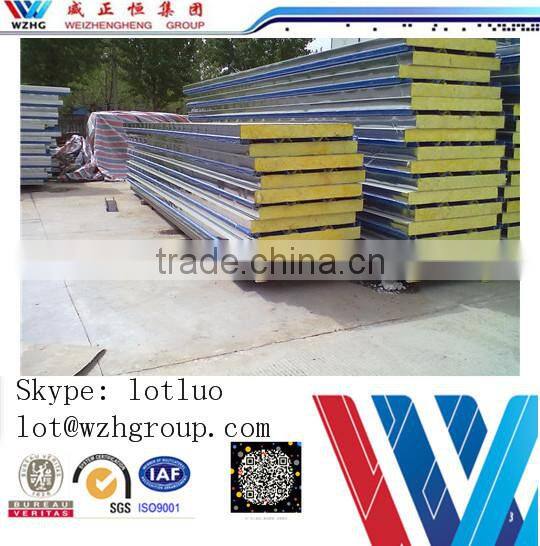

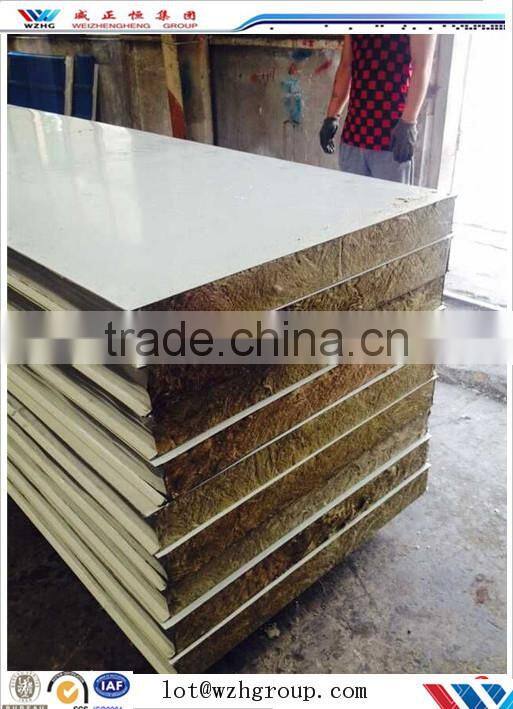

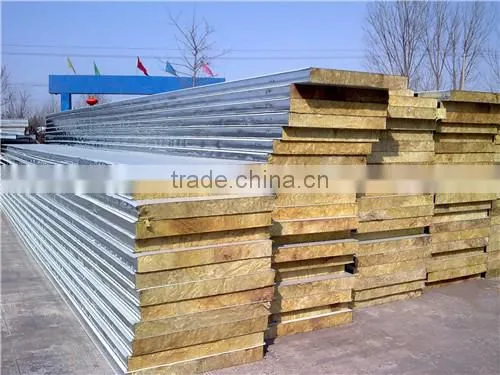

Rock wool Sandwich panel

Characteristics:

 1. Sound insulation Fire-proof

 2. Good insulation and heat transfer resistance

 3. Good bend and compression resistance

 4. High bearing capacity

 5. Flexibility in fixing

Specifications:

 1. Galvanized sheet steel thickness 0.4 to 0.6mm

 2. Total thickness 50 to 200mm

 3. Width of panels 930mm

 4. Length of panelscustomized

 5. Resistances of heat-transfer process≤0.044W/m.K

 6. Density 80 to 120kg/m3

Fiber glass sandwich panel

Characteristics:

 1. Light weight, easily installed

 2. Non-combustible, A1 class fire proof

 3. Antisepsis, aging resistance, corrosion resistance

 4. Strong vibration resistance, high durability

 5. Acoustic noise reduction

 6. Low moisture absorption

Specifications:

 1. Width: 930mm 950mm, 1150mm

 2. Galvanized steel sheet thickness: 0.3-0.6mm

 3. Thickness of fiber glass: 50-200mm

 4. Length of the panel: customized

 5. Density 60kg/m3

 6. Resistances of heat-transfer process: 0.028-0.033w/m.k

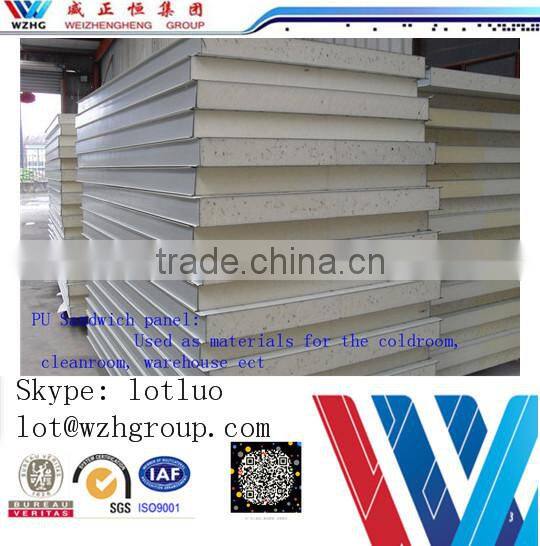

PU sandwich panel

Characteristics

 1. Sandwich panels are lightweight

 2. PU sandwich panel possesses high strength

 3. Panels have a high bearing capacity

 4. They are easy and quick to install

 5. They have a low water-absorbing capacity

 6. All our PU sandwich panels have good bending  and compression resistance

Specifications:

1. Width of panels 1,000mm

2. Galvanized sheet steel thickness 0.40 to 0.6mm

3. Total thickness 50 to 150mm

4. Length of panelscustomized

5. Resistance of heat-transfer process≤0.023W/m.K

6. Sound proofing 21.5dB

7. Limits of fire resistance≥220kPa

8. Density 40 to 43kg/m3

9. Water absorption for 24 hours≤5%

Layers:

Sandwich panels are made of three layers,

Bottom layer : color coated steel sheets

Insulation layer : expandable polystyrene, rock wool, polyurethane, glass fiber wool and mix insulation of rock wool (glass fiber wool) and polyurethane

Upper layer: color coated steel sheets

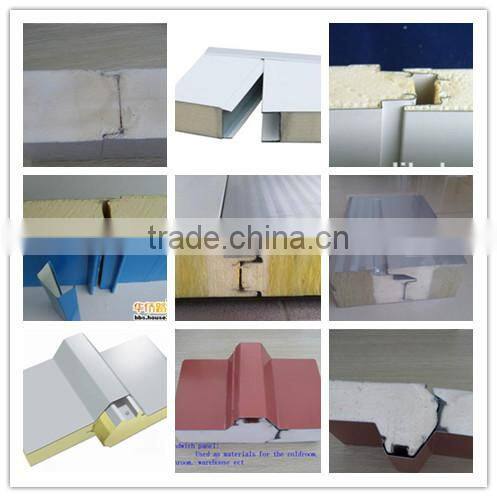

Connection detailed

Use:

Steel warehouse, prefabricated houses, container houses, parking sheds, workshop. etc.

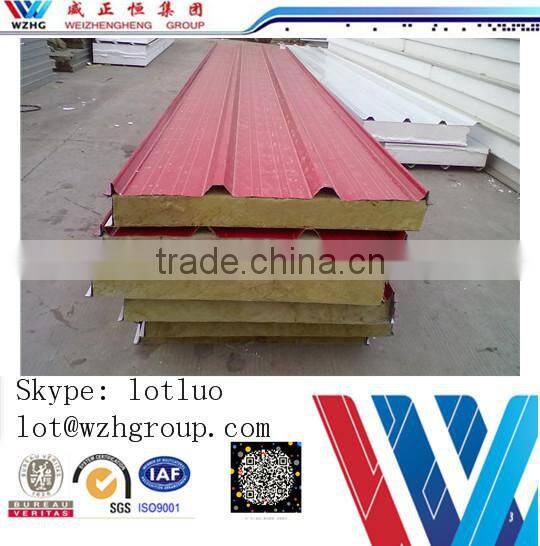

It is also widly used as roofing material for steel structure plant, gym, Supermarket,commercial and civilian facilities.

Details:

Height of corrugation :40mm

Length :5.8 m. MAX. for 20'GP and 11.8m.MAX.for 40'HQ or according to the buys’ request

Interface width: 950mm/ 1150mm / 960mm/ 980mm

Thickness: 50mm/ 75mm/ 100mm/ 120mm/ 150mm/ 200mm or due to the customer

Length: according to the buys’ request

Density of insulation is 120kg/m3.

Color : Many color are available, but white grey, sea blue and bright red sell well both domestically and abroad.

PASSED ISO 9001
