China Supplier High Quality Galvanized Corrugated PPGI Roofing Sheet

China Supplier High Quality Galvanized Corrugated PPGI Roofing Sheet

Specification:

1.Prepainted corrugated metal roofing

2.Anti-corrosion,Thermal-Insulation

3.High tensile strength

4.Fireproof,Waterproof

5.Aesthetically pleasing

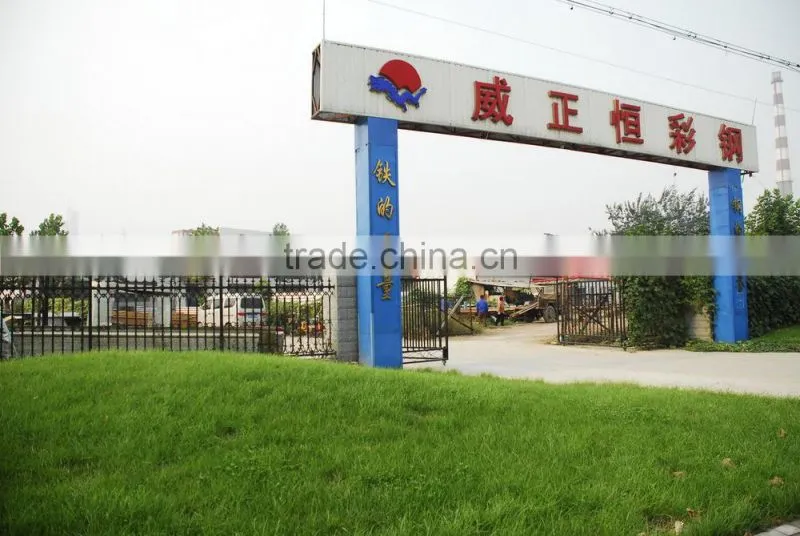

Our company is mainly engaged in production of various of steel coils, corrugated color steel sheets and sandwich panels, prefabricated house,as well as large-scale steel structure design, production and installation.

     Color steel plates are made by cold rolled galvanized steel sheet, then treated by degressing,phosphating, chromated and others. coated with organic fluorine resin coating..

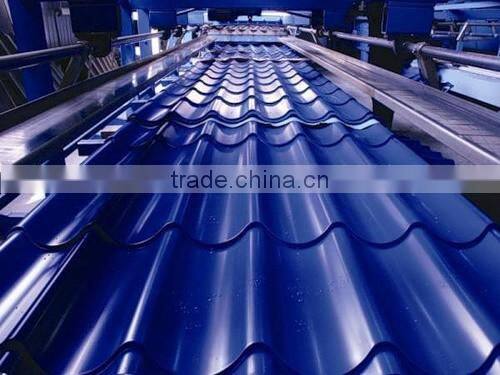

    They are manufactured through a continuous baking and a variety of profiling machine.

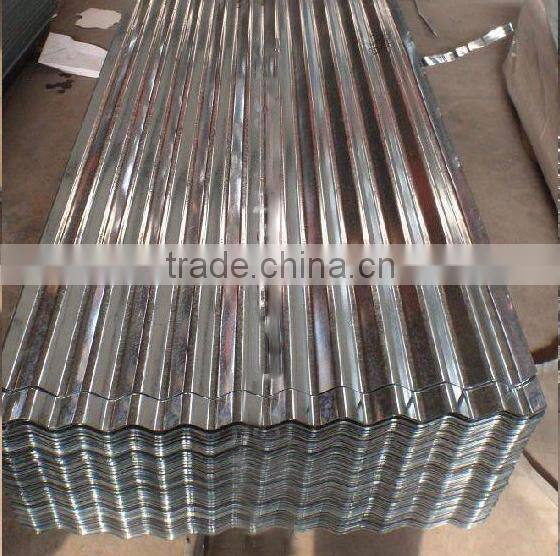

    WZH Group creates corrugated metal roofing panels in many popular styles and in nearly any gauge. Some of the industry’s most popular corrugated roofing materials include Galvanized-corrugated metal, Galvalume corrugated metal, painted finishes for metal roofing, corrugated fiberglass, and corrugated stainless steel. We offer corrugated materials for any application and fabricate corrugated panels to any specification.

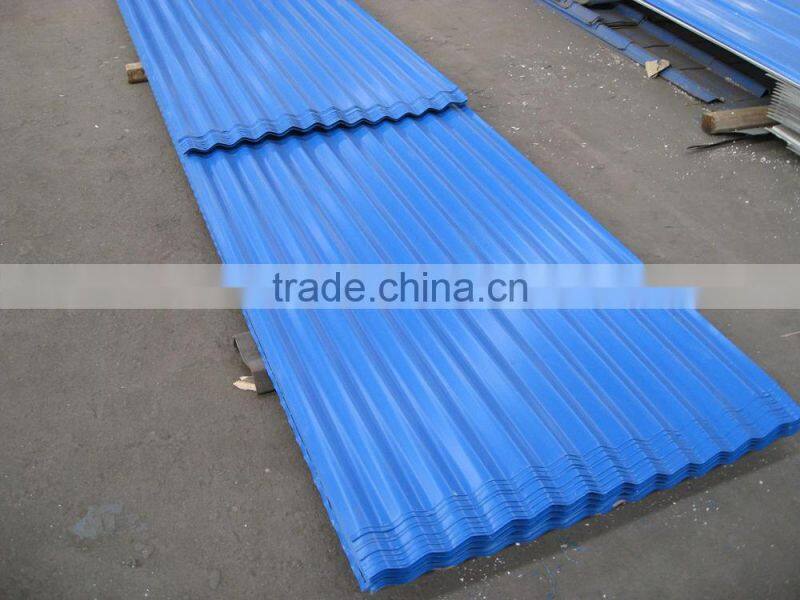

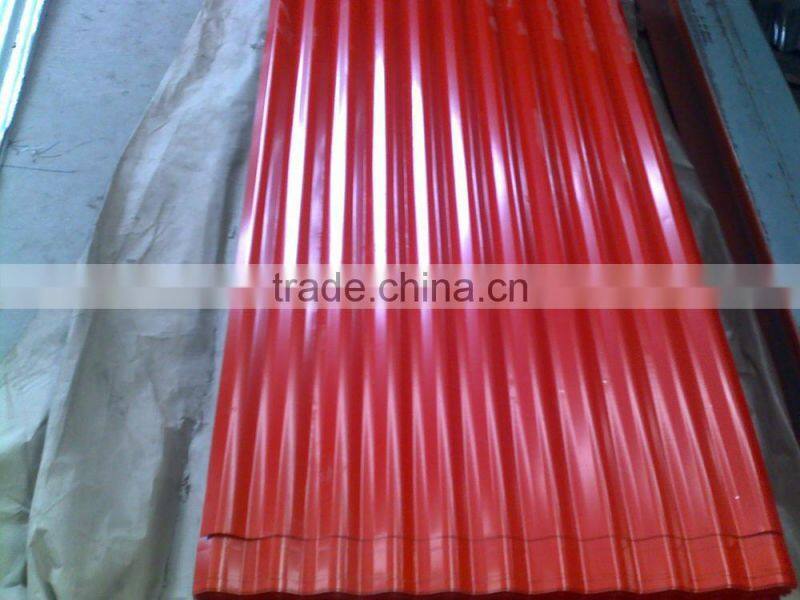

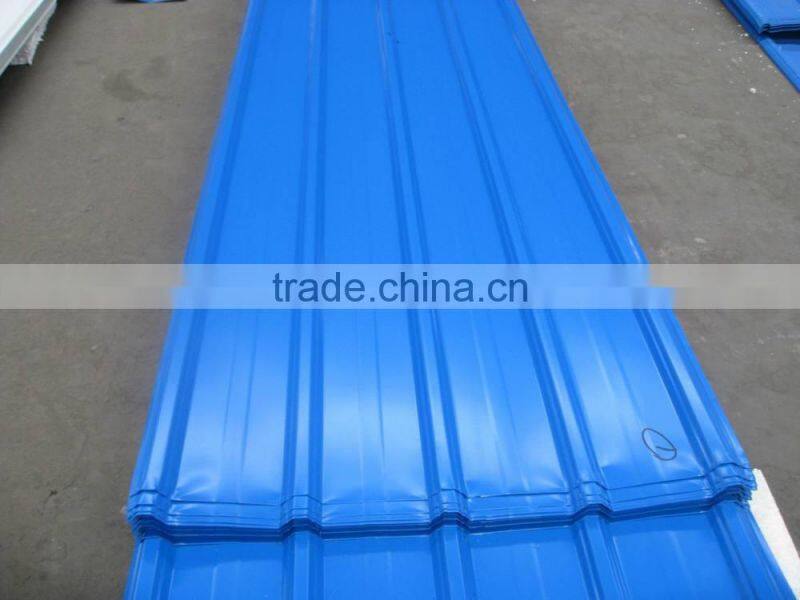

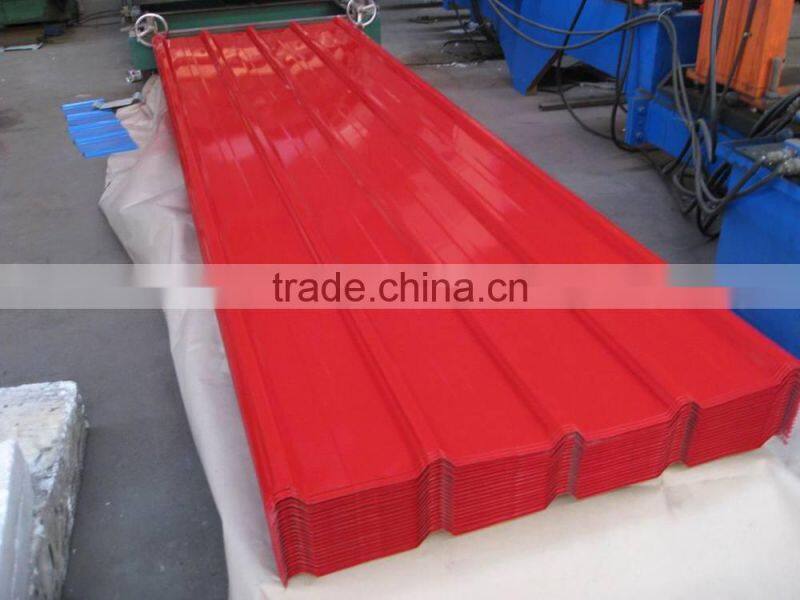

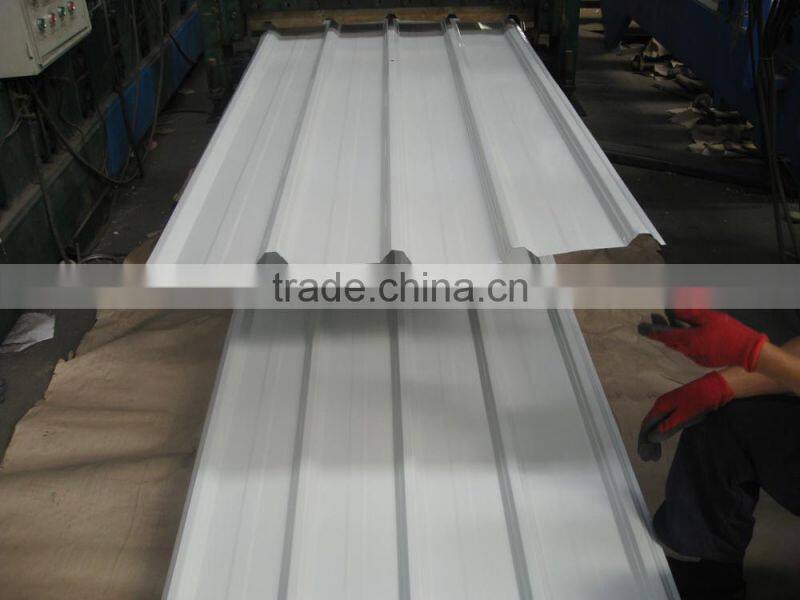

    WZH corrugated metal roofing panel is economical, strong and aesthetically pleasing. It has a trapezoidal profile, important for many architectural applications. The standard corrugated metal roofing panel is 38 7/8"overall,with a 36"coverage.

     The WZH 1/2" corrugated roofing panel is our most economical. It's useful for standard applications which require both durability and economy.We manufacture our roof and products from our stocked, 44"coil width and a 36"width.

2. The specification of pre-painted corrugated Metal Roofing

    WZH group manufacturers a variety of metal roofing panels,including corrugated, ribbed, and recessed.Some of these metal panels can be used for roofing and siding.

   This traditional building panel, available in 26 and 24 gauge, is compatible with many existing buildings, provides the most economical use of your dollars. Cost saving and the value of strength that comes from galvanized steel coils make our Roofing Panels a real value.

1. Length: 1m to 12m

 2.Effective width: 665mm to 980mm

 3.Color: navy blue,white grey or any RAL colors

 4.Thickness: 0.2 mm to 0.6 mm

 5.Hardness: 60HRB to 90HRB

 6.Strength Tensile:400mpa to 550mpa

 7.Zinc coating: 60g/m2 to 120 g/m2

 8.Standard:  ASTM A653, JIS G3312

 9.Top coating: 15um to 25um   Back coating:5um to 8um

 10.Certification:ISO9001:2000

 11.HS code:7210700000

3.The advantages of pre-painted corrugated Metal Roofing

     WZH corrugated metal roofing panel combines strength with a deep,wide panel for a clean,bold look.It's easy to install and lasts for years.

a:Waterproof and fireproof:it is made by color steel and can be applicative in 500℃.

b:Anti-corrosion:it is made by zinc or aluzinc coating hot dippped steel

c:Its coating has good adhesion,high tenacity,which can use more than 30 years

4. Application of pre-painted corrugated Metal Roofing

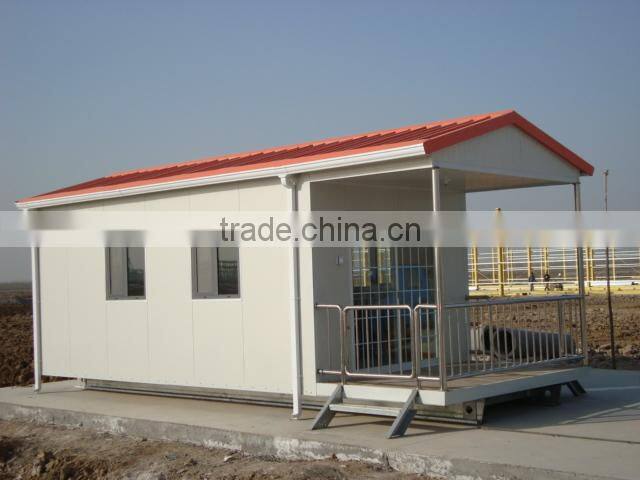

They are used as the roofing sheet of the factory,residential house,steel structure.

5. Product description

 6.Galvalume steel sheet roofing materials

         Galvalume steel sheet is the preferred product for long-term resistance to atmospheric corrosion.It outlasts a galvanized coating of comparable thickness, and offers cut-edge protection that is not available with aluminum-coated sheet.This cut-edge protection means there is less rust-staining along sheared edges, at scratches, and other imperfections in the coating.Also,since the coating is so resistant to corrosion, it retains a very bright surface appearance when exposed to most conditions.These attributes make galvalume steel sheet the preferred material for roofing.The superior corrosion resistance of galvalume steel sheet is achieved by the presence of microscopic zinc-rich and aluminum-rich areas within the coating.The aluminum-rich areas,which corrode very slowly, provide the long-term durability while the zinc-rich areas,which corrode preferentially,provide galvanic protection.In most cases we offer only certain styles and profiles in the galvalume material but are adding new products daily.
