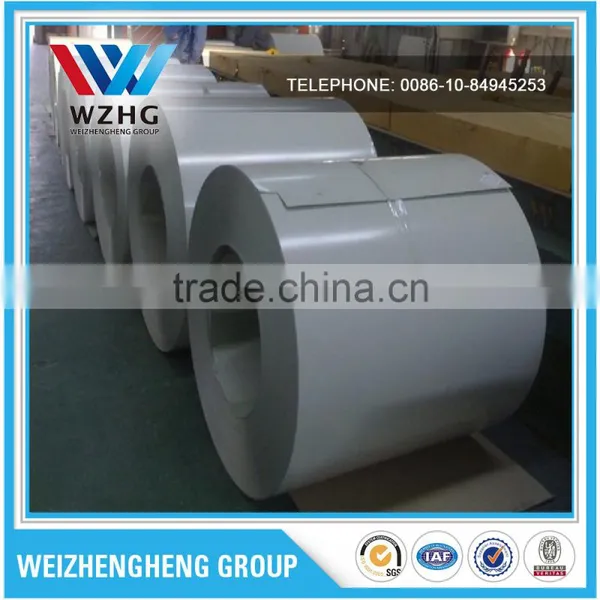

color coated steel coil/ galvanized steel coil /prepainted galvanized steel coil

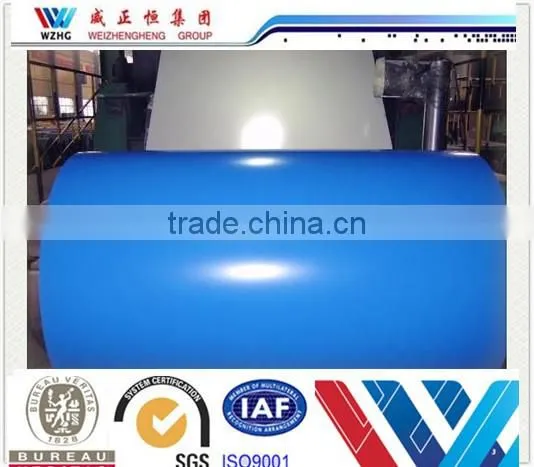

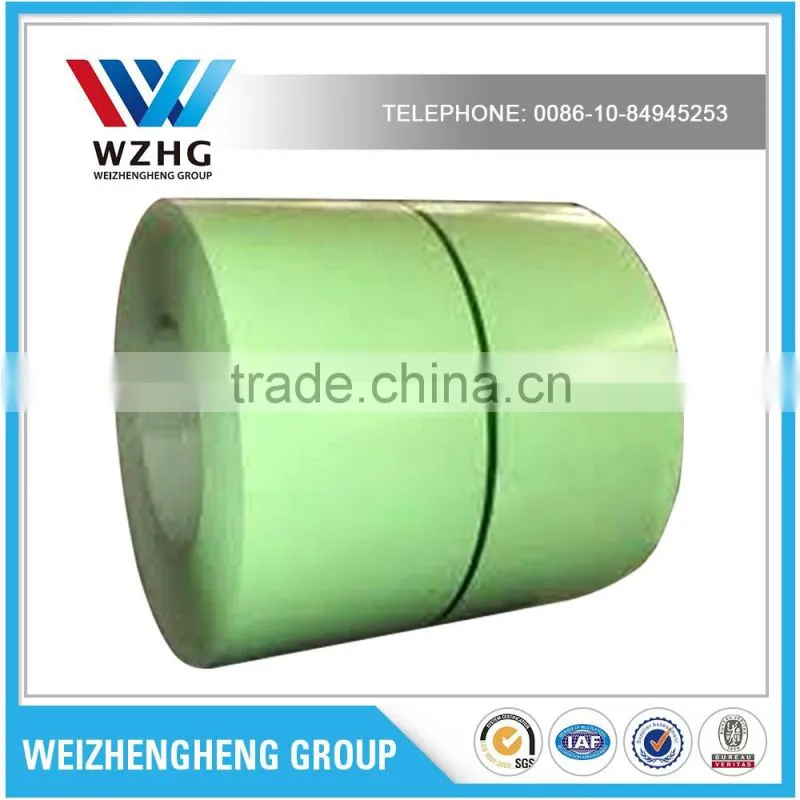

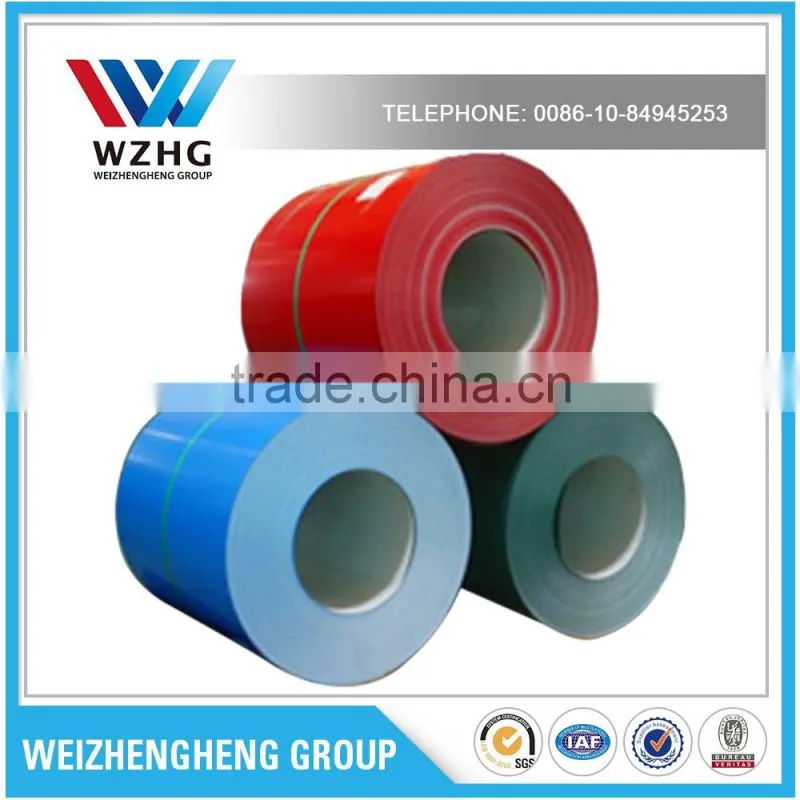

PPGI steel coil

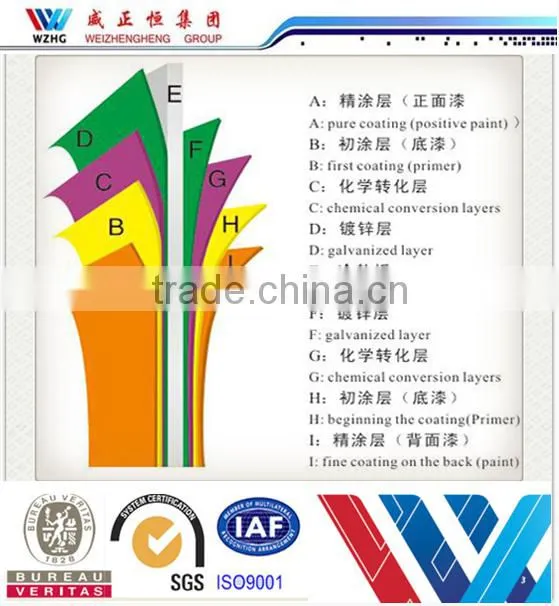

1. Color Coated steel Coil is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.
2. The base metals for Color Coated Steel Coil consist of cold rolled, HDG electro-galvanized and hot-dip zinc coated steel. The finish coats of Color Coated Steel Coil can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.
3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.

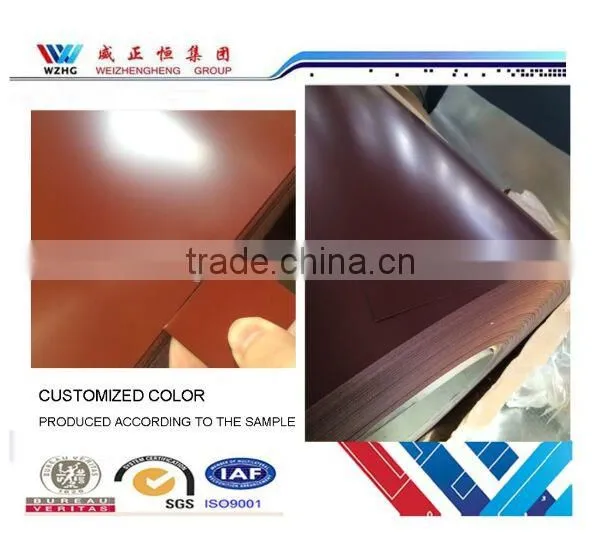

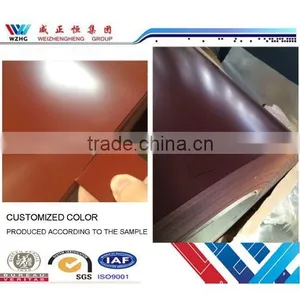

4. The color of the Color Coated Steel Coil has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.
5. The Color Coated Steel Coil can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.
PPGI/PPGL coil
ITEM |
PPGI COIL |
|
Grade: |
SGCC,SGCD,SGCH,SGCE,DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z, Q195,Q215,Q235,, DC01/02/03/04, SPCC,SS400 |
|
Specification |
Thickness:0.12-1.2 mm |
Width:700mm-1250mm |
Standard |
JIS G3002,EN 101402,ASTM A653,GB/T251B,AS 1397 |
|
Zinc Coating: |
60g-180g/m2 |
|
Tensile Str |
270-550N/mm2 |
|
Surface Treatment |
Galvanized, Chromed, Unoiled/Oiled, Bright Finished, Matt, Spangle, flat surface, as requirement |
|
coil weight |
3-5 tons |
|
Coil ID |
508mm/610mm |
|
Technique |
cold rolled galvanized |
|
Pre-Paint Coating |
12μm -25μm |
|
Paint Material |
PE / PVDF |
|
Color |
Any Color by RAL |
|
ITEM |
PPGL COIL |
|
Grade: |
SGCC,SGCD,SGCH,SGCE,DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z, Q195,Q215,Q235,, DC01/02/03/04, SPCC,SS400 |
|
Specification |
Thickness:0.12-1.2 mm Width: 700mm-1250mm |
|
Standard |
JIS G3002,EN 101402,ASTM A653,GB/T251B,AS 1397 |
|
Basic Alu-Zinc Coating |
AZ50-AZ275 |
|
Tensile Str |
270-550N/mm2 |
|
Hardness |
Normal Soft / Semi Hard / Full Hard |
|
Surface Treatment |
Anti finger print, Non anti finger print |
|
Coil Inner Diameter |
508mm / 610mm |
|
Pre-Paint Coating |
12μm -25μm |
|
Technique |
cold rolled galvanized |
|
Paint Material |
PE / PVDF |
|
Color |
Any Color by RAL |
|

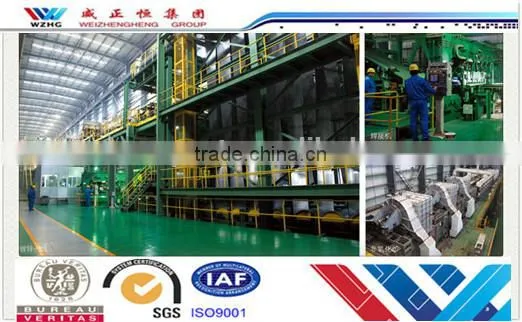

Produce line
Related product

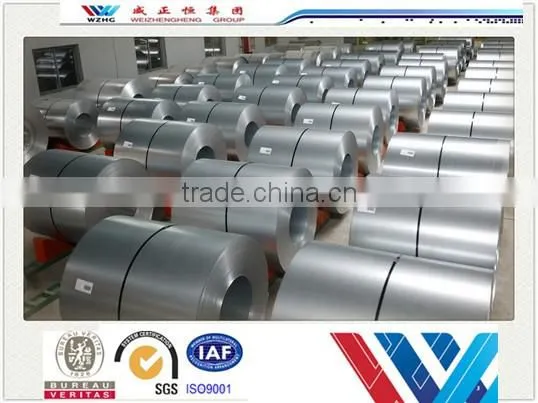

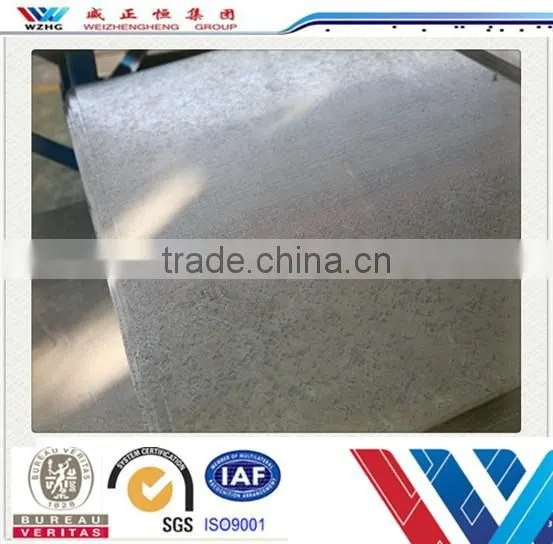

Galvanaized Steel Coil/ Galvalume Steel Coil

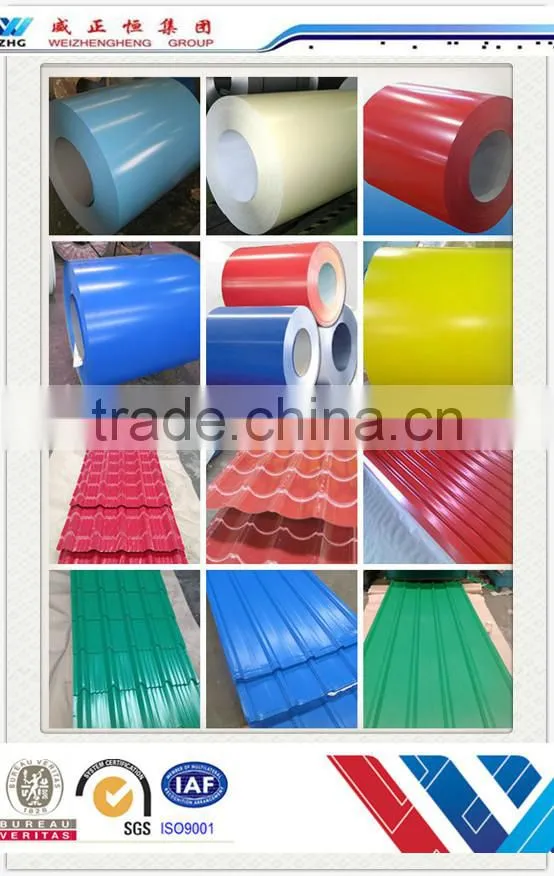

PPGI coil and PPGI sheet
Our color coated steel coil/ galvanized steel coil /prepainted galvanized steel coil will be packing as follow : Standard export seaworthy packing: 4 eye bands and 4 circumferential bands in steel, galvanized metal fluted rings on inner and outer edges, galvanized metal & waterproof paper wall protection disk, galvanized metal & waterproof paper around circumference.
1. Sample free. the freight cost will be paid by sustomer.
2. You are very welcome to visit our factory before the order, or during the prodction or ater the production before loading.
3. We are very proffecionel in all the kinds of different payment term, FOB, CIF, CFR, CIP by sea container or bt train.
4. For the steel frame you are very welcome to orffer your own design, or you give us your idea,we supplier our design, the production,the loading all for you.

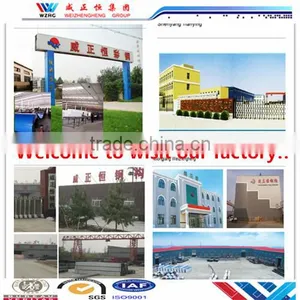

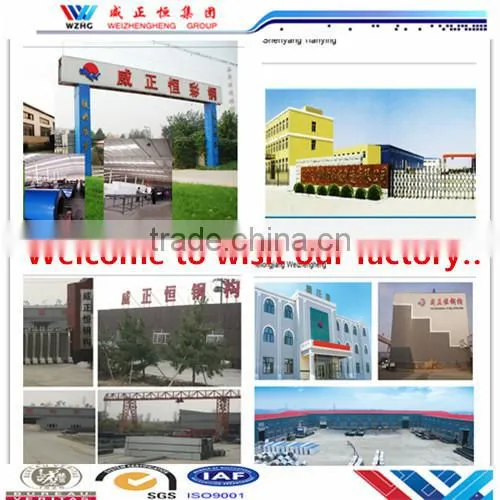

We are a group company, which has the follow filiales
Weizhengheng Group covers an area of over 48,000 sq.m., with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.
Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd, Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd, Shandong Office, Manzhouli Office and Uganda Office.
We are the china supplier of the follow metal building materials :
Steel Structure , Prefabricated House , Galvanized Steel Coil , Galvalume Steel Coil , PPGI / PPGL , Galvanized Steel Sheet , Galvalume Steel Sheet , Cold Storage Panel , Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel , Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel, Glass fiber mat .
