China steel structure warehouse/greenhouse prefabricated/steel warehouse building
Brief Introduction:
Light steel structure warehouse is a new type of building structure system,which is formed by the main steel framework linking up H section,Z section,C section or U section steel components,roof and walls using a variety of panels and other components such windows,doors,cranes,etc.Light steel structure building is widely used as warehouses,workshops,large factories...etc.
Characteristics:
1.Wide span: single span or multiple spans, the max span is 36m without middle column.
2.Low cost: unit price range from USD 30/m2 to USD 60/m2 according to customers request.
3.Fast construction and easy installation.
4.Long using lifespan: up to 50 years.
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.
Specifications:
Main steel structure | |||
NO | Item | Specification | Remarks |
1 | Column | H:HN200-550*100-200*5-10*8-16 | Painted Q235 or Q345 |
2 | Roofing beam | HN550*200*10*16 | Painted Q235 or Q345 |
3 | Crane beam | 5Tons-15 TONS | Q235 |
4 | Foundation bolt | M24-M45 | 0.5M-1.3M |
5 | High strengh bolt | 10.9S |
|
Secondary steel structure | |||
1 | wall purlin | C160*60*2.5 | Painted Q235 or Q345 |
2 | roofing purlin | C200*70*3 | Painted Q235 or Q345 |
3 | roofing beam support | L100*63*6 | Painted Q235 or Q345 |
4 | column support | L100*63*6 | Painted Q235 or Q345 |
5 | bracing | 8mm-15mm round steel | Painted |
6 | stay tube | 38mm*1.5mm-3mm round tube | Painted |
Envelope system | |||
1 | Door | 4m*5m or 1.8m *2.1m | Engine rolling door |
2 | window | 0.8m *2m | plastic steel swing window |
3 | wall panel | 950mm*50-100mm | white grey 0.4mm eps or rockwool |
4 | roofing panel | 960mm*50-100mm | white grey 0.4mm eps or rockwool |
5 | Ridge | 333mm | 0.5mm prepainted steel |
Fitting |
|
|
|
1 | Edge Cover | Steel sheet 0.5mm thinckness |
|
2 | Bolts | M24,M22,M16 |
|
3 | Foundation | Cement and steel foundation bolts |
|
4 | Accessory | self-tapping scew,rivet, side and front closure,gutter,skylight window | |

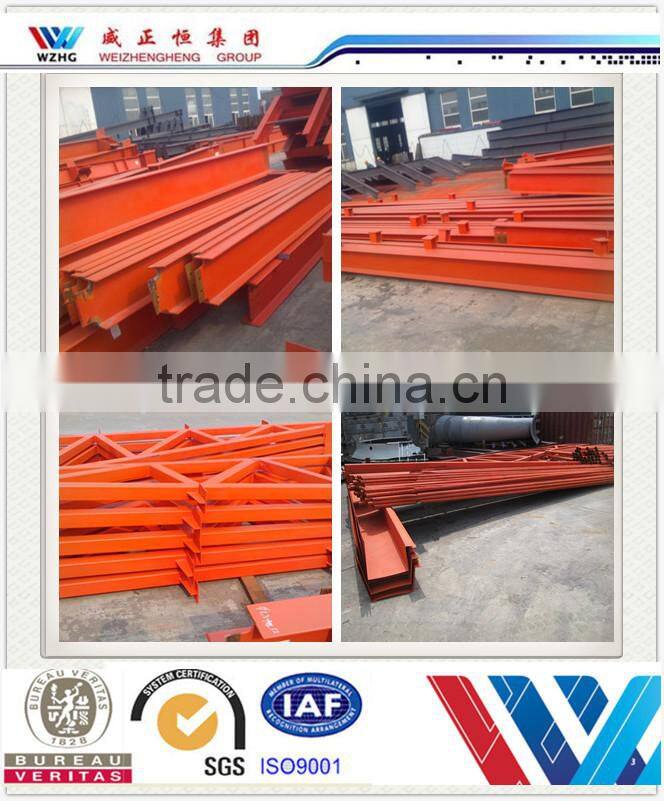

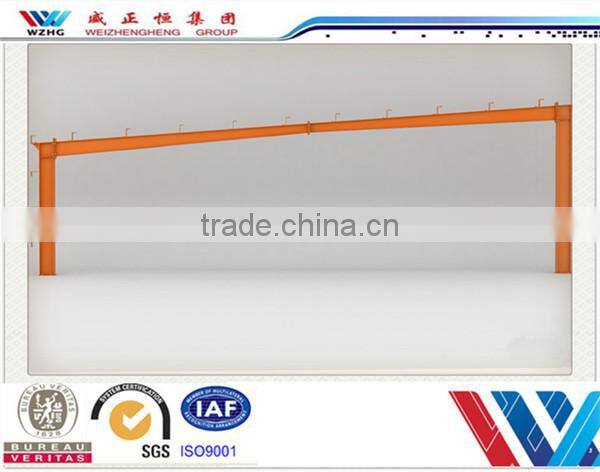

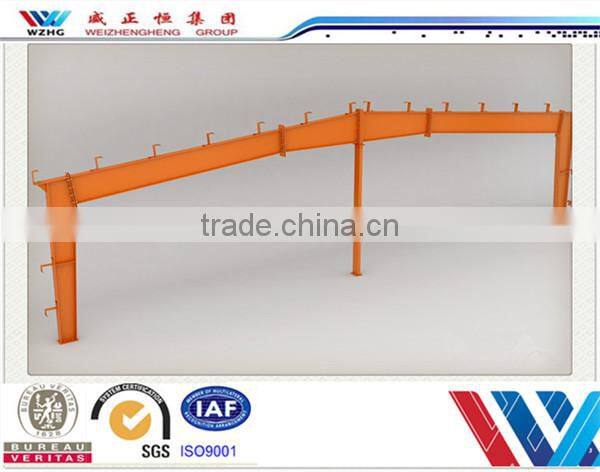

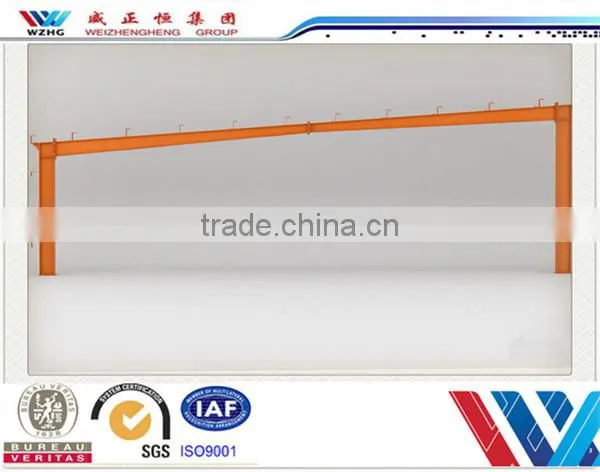

Steel beam

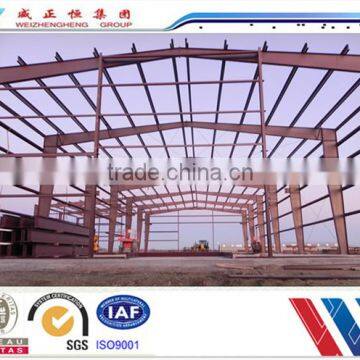

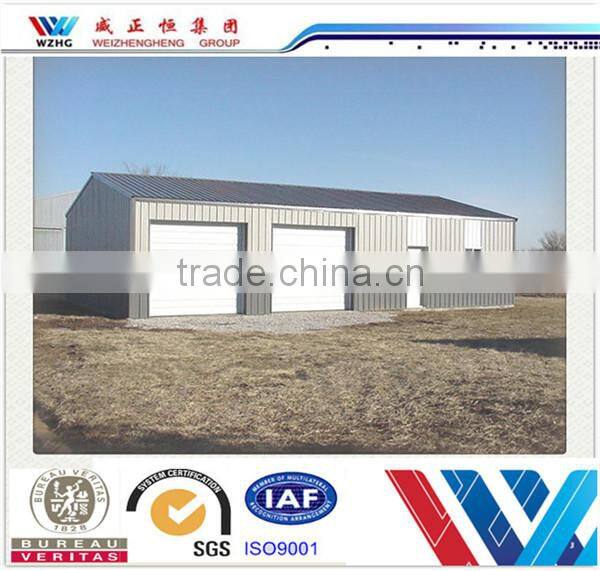

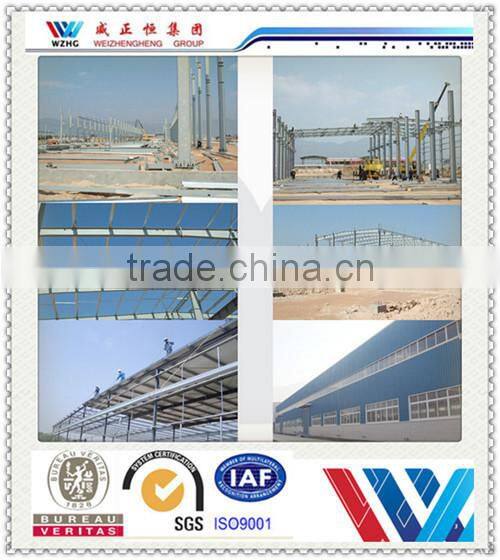

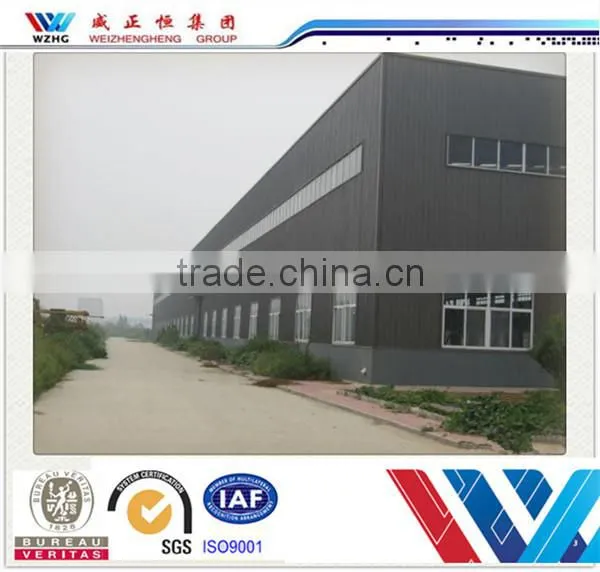

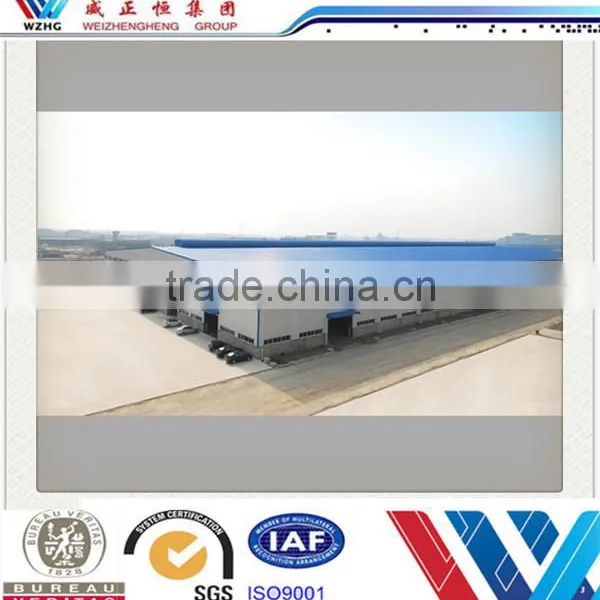

Steel structure warehouse

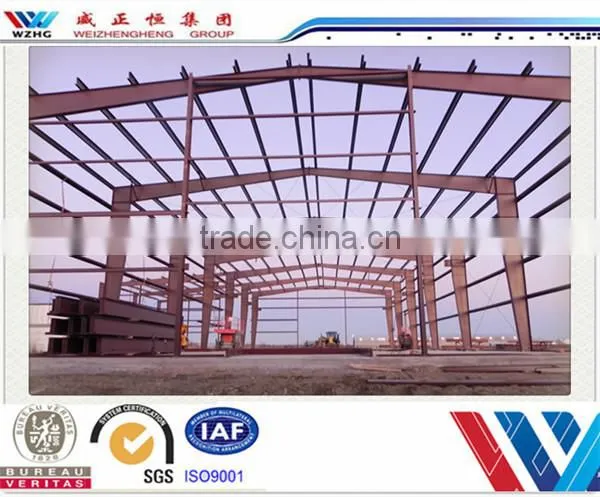

Steel structure workshop

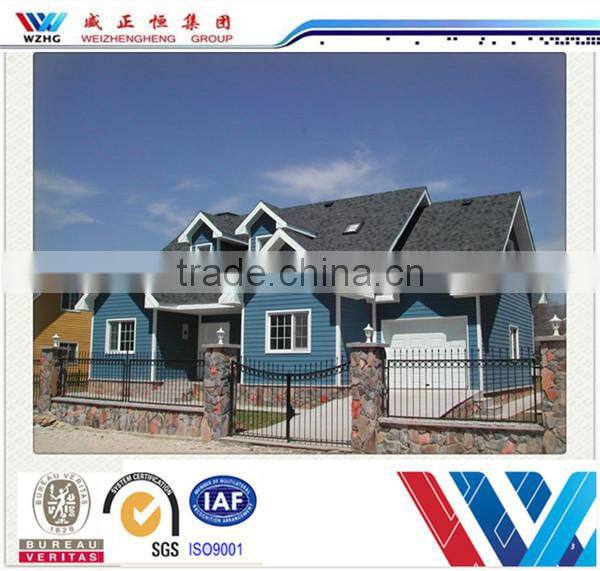

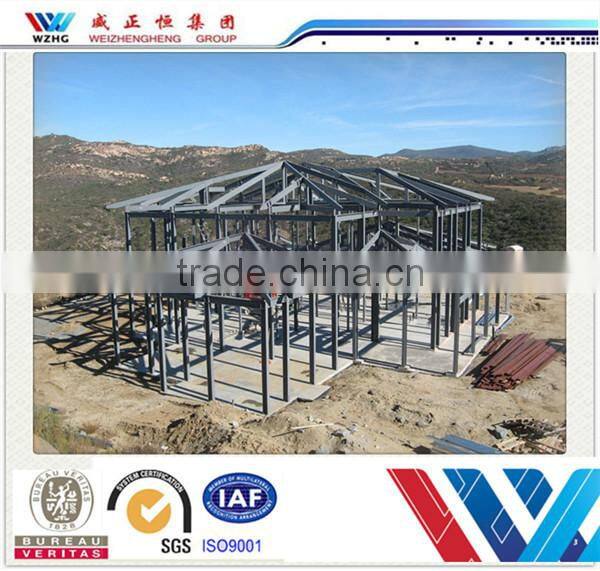

Steel structure prefabricated villa house

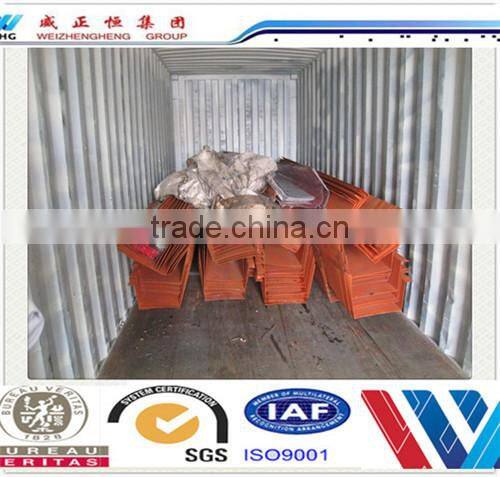

main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ!
Our service:We can supplier a service for the follow products Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet , Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel the best service :
1.Sample free.the freight cost will be paid by customers.
2.You are very welcome to visit our factory before the order,or during the prodction or after the production before loading.
3.We are very professional in all kinds of different payment terms,FOB,CIF,CFR,CIP by sea container or by train.
4.For the steel frame you are very welcome to offer your own design,or you give us your ideas,we can supplies our design,the production,the loading all for you.

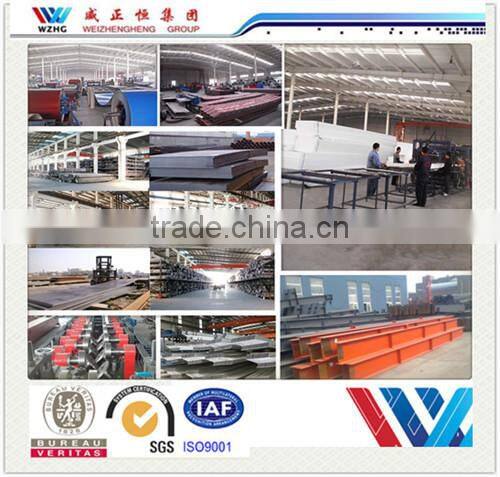

WZH GROUP
We are a group company, which has the follow filiales
Weizhengheng Group covers an area of over 48,000 sq.m., with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.
Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd,Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd,Shandong Office, Manzhouli Office and Uganda Office.
We are the china supplier of the follow metal building materials :
Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet,Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel,Glass fiber mat.
WZH Group excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1 Location (where will be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height
