Fabricated Portal Frame Steel Structure Warehouse/workshop,prefabricated Light Steel Structure Space Frame

US$ 600 - 1,200 MOQ: 25 Tons

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

WZH

Model Number:

steel structure

Hebei Weimeng Import & Export Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name WZH

Model Number steel structure

Material Other, Steel, H steel, C purlin, Z purlin,sandwich panel

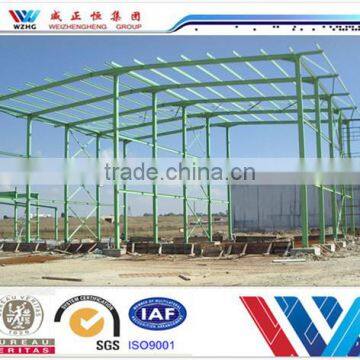

Fabricated portal frame steel structure warehouse/ workshop, prefabricated light steel structure space frame

1. Brief instruction of the prefabricated steel strucutre/building/ warehouse:

Light steel structure project includes three process:design, producing and construction. It main

has three systems: main steel structure system, secondary steel structure system and envelope system...

2. The following the detailed spefication of the prefabricated steel structure/building/warehouse:

Main steel structure
NO	Item	Specification	Remarks
1	Column	H:HN200-550100-2005-10*8-16	Painted Q235 or Q345
2	Roofing beam	HN55020010*16	Painted Q235 or Q345
3	Crane beam	5Tons-15 TONS	Q235
4	Foundation bolt	M24-M45	0.5M-1.3M
5	High strengh bolt	10.9S
Secondary steel structure
1	wall purlin	C160602.5	Painted Q235 or Q345
2	roofing purlin	C200703	Painted Q235 or Q345
3	roofing beam support	L100636	Painted Q235 or Q345
4	column support	L100636	Painted Q235 or Q345
5	bracing	8mm-15mm round steel	Painted
6	stay tube	38mm*1.5mm-3mm round tube	Painted
Envelope system
1	Door	4m5m or 1.8m 2.1m	Engine rolling door
2	window	0.8m *2m	plastic steel swing window
3	wall panel	950mm*50-100mm	white grey 0.4mm eps or rockwool
4	roofing panel	960mm*50-100mm	white grey 0.4mm eps or rockwool
5	Ridge	333mm	0.5mm prepainted steel
6	Accessory	self-tapping scew,rivet, side and front closure,gutter,skylight window

3. For the prefabricated steel structure/factory/building/warehouse,we need to know the following information to design it for you:

No	Item	Specification
1	Dimension	1.Total width: 2.Total length: 3. Building area 4.side wall height 5.Span 6.Column spacing 7.roofing pitch 8. Surface treatment 9. usage of the builidng
2	Design Index	1.Design live load(KN/M2) on floor live load(KN/M2) on wall 3. Max crane load(Ton) 4. Max crane lift height (M) 5.Max window Load (KN/M2) 6. Max Rain Load (KN/M2) 7.Max snow load (KN/M2) 8. Max earthque Load (KN/M2)
3	Enclosing system	1.Exterior wall-material and thickness 2. roofing material and thickness 3.partition wall -material and thickness
4	Window	1.style: swing,sliding, or rolling 2. manual or engine 3. Size 4. quantity 5. position
5	Door	1.style: swing, sliding or rolling 2. manual or enging3. size 4. quantity 5. position
6	Others	1.drainage system 2.ventilation 3.skylight
