prefabricated metal industrial warehouse buildings

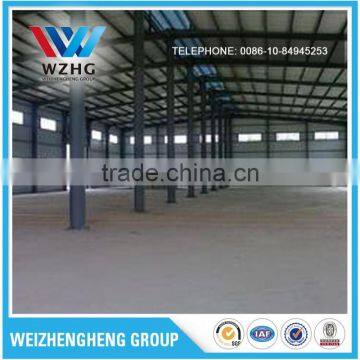

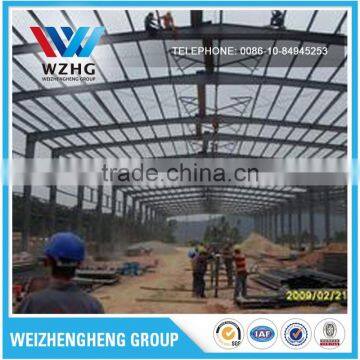

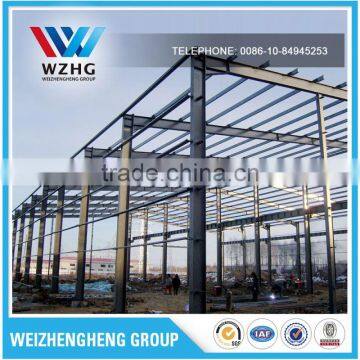

Light steel structure warehouse is a new type of building structure system,which is formed by the main steel framework linking up H section,Z section,C section or U section steel components,roof and walls using a variety of panels and other components such windows,doors,cranes,etc.Light steel structure building is widely used as warehouses,workshops,large factories...etc.
Main steel structure | |||
NO | Item | Specification | Remarks |
1 | Column | H:HN200-550*100-200*5-10*8-16 | Painted Q235 or Q345 |
2 | Roofing beam | HN550*200*10*16 | Painted Q235 or Q345 |
3 | Crane beam | 5Tons-15 TONS | Q235 |
4 | Foundation bolt | M24-M45 | 0.5M-1.3M |
5 | High strengh bolt | 10.9S |
|
Secondary steel structure | |||
1 | wall purlin | C160*60*2.5 | Painted Q235 or Q345 |
2 | roofing purlin | C200*70*3 | Painted Q235 or Q345 |
3 | roofing beam support | L100*63*6 | Painted Q235 or Q345 |
4 | column support | L100*63*6 | Painted Q235 or Q345 |
5 | bracing | 8mm-15mm round steel | Painted |
6 | stay tube | 38mm*1.5mm-3mm round tube | Painted |
Envelope system | |||
1 | Door | 4m*5m or 1.8m *2.1m | Engine rolling door |
2 | window | 0.8m *2m | plastic steel swing window |
3 | wall panel | 950mm*50-100mm | white grey 0.4mm eps or rockwool |
4 | roofing panel | 960mm*50-100mm | white grey 0.4mm eps or rockwool |
5 | Ridge | 333mm | 0.5mm prepainted steel |
Fitting |
|
|
|
1 | Edge Cover | Steel sheet 0.5mm thinckness | |
2 | Bolts | M24,M22,M16 |
|
3 | Foundation | Cement and steel foundation bolts |
|
4 | Accessory | self-tapping scew,rivet, side and front closure,gutter,skylight window | |
1.Wide span: single span or multiple spans, the max span is 36m without middle column.
2.Low cost: unit price range from USD 30/m2 to USD 60/m2 according to customers request.
3.Fast construction and easy installation.
4.Long using lifespan: up to 50 years.
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.
We can supplier a service for the follow products Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet , Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel the best service :
1.Sample free.the freight cost will be paid by customers.
2.You are very welcome to visit our factory before the order,or during the prodction or after the production before loading.
3.We are very professional in all kinds of different payment terms,FOB,CIF,CFR,CIP by sea container or by train.
4.For the steel frame you are very welcome to offer your own design,or you give us your ideas,we can supplies our design,the production,the loading all for you.
