Specifications
Large spanShort install time
Firepreef and rustproof,earthquake- resistant.
Easy to assemble or disassemble

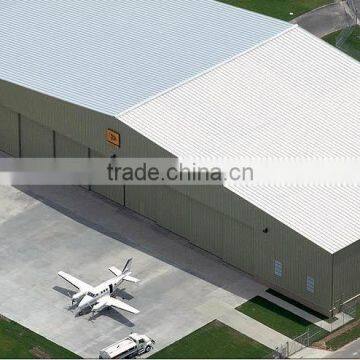

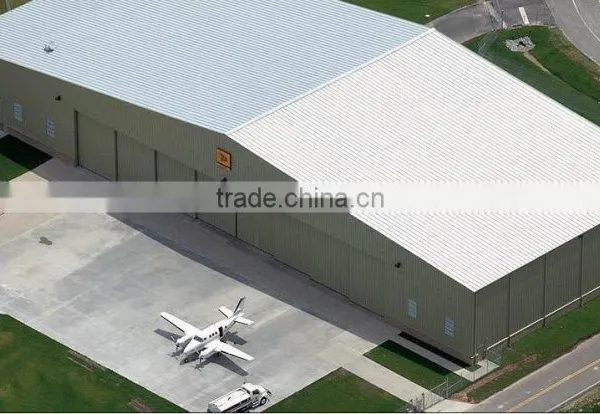

AirCraft Hangar
With our fabric structures, we have a durable and uncomplicated hangar solution for your aircrafts with wingspan sizes up to ca. 46 m.
Our aluminum framed TFS (Tension Fabric Structure) can be designed as a temporary hangar for aircraft maintenance on the spot or as a permanent hangar solution from a sun shade type up to a hangar equipped with doors, HVAC, lighting and insulation package. The unique roof shape design of our TFS enables its use at the most harsh locations in the world. No super heavy steel truss structure is required to resist to high snow loads as the TFS sheds snow. Transport is very efficient. It requires up to 6 times less space compared to an equivalent sized steel hangar.
In case local regulations or customer specifications require a steel hangar solution, our SFS (Steel Fabric Structure) can provide you the solution you are looking for.
Specifications :
1) Different sizes: MOQ is 100 m2, width x length x eave height.
2) Different types: Single slope , Double slope ,
Single span , Double span , Multi-span
Single floor , Double floor
3)Different bases: Cement and Steel foundation bolts
4)Different columns and beams: Material Q345 (S355JR) or Q235 (S235JR),
all bolt connections , straight cross-section and kinds of cross-section.
5) Different bracings: X type or V type or other type bracing .
6) Different purlins: C or Z type, size from C120-C320 , Z100-Z200.
7) Different roof and wall panel: Sing colorful corrugated steel sheet (150mm wide) or sandwich panel with EPS , Rock wool , PU etc. Thickness of insulation material is around 50mm-100mm.
8) All accessories: Semi-transparent skylight belts , ventilators , dwn pipe , eave gutter ,etc.
9) Surface: Two layers of anti-rust paint.
10) Packing: Main steel frame without packing load in 40’OT , roof panel and wall panel load in 40’HQ.
Please kindly provide the following important technical parameters to us for a specific quotation:
| 1) Live load on roof (kn/m²) |
| 2) Wind speed (km/h) |
| 3) Snow load (kg/m²) - If Applicable |
| 4) Earthquake load - If Applicable |
| 5) Style of Doors and Windows |
| 6) Crane (if you have), Crane span, Crane lift height, max lift capacity, max wheel pressure and min wheel pressure |
| 7) Size: width × length × eave height, roof slope |
| 8) Or your idea! |
We can supply following
| 1) Steel Structure Building |
| 2) Metal Building |
| 3) Modular House |
| 4) Steel Structure Warehouse |
| 5) Workshop / Factory |
| 6) Garage |
| 7) Steel beams other riveting and welding parts |
| 8) OEM projects |
What JDCC can do for you.....
We have an excellent reputation for the quality and cost effectiveness of our hangars and hangar doors. We also have our own patented method and apparatus that enables us to produce large span hangars for less. So whatever the hangar design and wherever the location, our experienced team can help. The earlier you involve us the quicker you'll have your hangar up and ready to use.
Our Advantages
We have the knowledge of nearly a century of hangar design and construction, and all our hangars are designed to fully meet the individual needs of each client
Worldwide Delivery Our export team has arranged shipping and erection of hangars across 130 countries including some of the most remote and difficult to reach parts of the world
