Specifications
1.low prices,2.light weight and durable,
3.easy installation,
4.wide range of applications

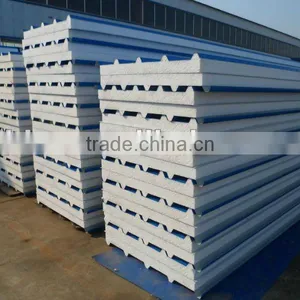

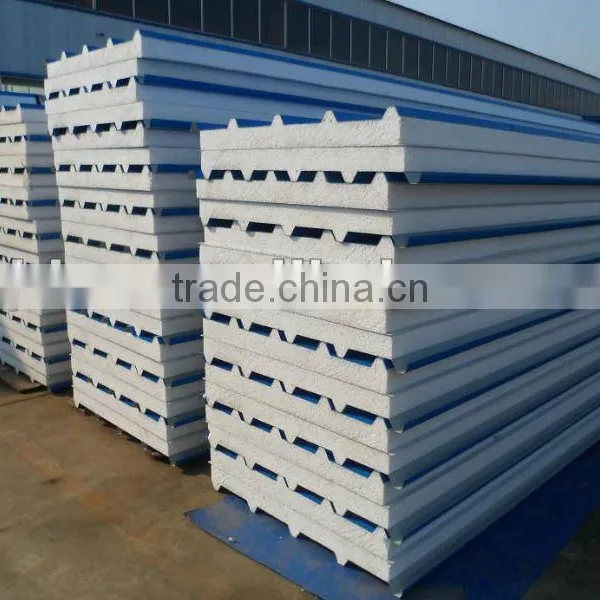

EPS sandwich panel is a new-type lightweight building material. It is stable and of low price, with wide application fields. It is a new type, highly efficient and composite construction material by adopting colored steel sheet as the surface layers, closed-hole self-extinguishing polystyrene bubble as core materials, through pressing the colored steel sheet by an automatic continuous molding machine and adhering it with the core material by adhesive. It is heat insulation, water proof, durable, beautiful, and can be constructed quickly.
EPS sandwich panel is mainly used in public buildings, roof, walls of industrial plants and cold storage plant, building access layer, commercial kiosks and so on.
Material:
1. Colored steel sheet thickness: up / down 0.3 ~ 0.5mm
2. Core material: polystyrene (EPS). The bulk density is 12 ~ 16kg / m3
Specifications:
1. Width: wall panel 950mm; roof panel 960mm
2. Thickness: 50mm ~ 150mm
3. Length: length can be determined according to the customers’ requirements.
Characteristics:
1. Advantages: low prices, light weight and durable, easy installation, wide range of applications
2. Disadvantages: none fireproof, and is highly toxic when getting burned
3. Fire rating: None
Applications:
EPS sandwich panel is widely used for roof, walls, ceiling and room partitions in steel plants and prefabricated houses.
