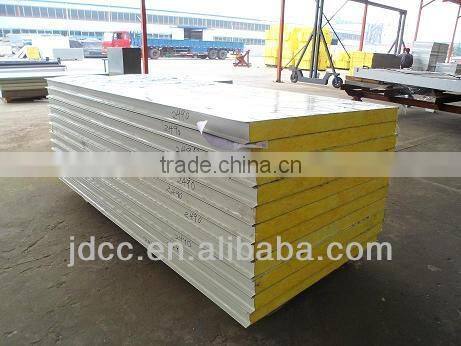

Insulation Rock Wool Sandwich Panel

Specifications

Rockwool wall sandwich panel:
Steel Thickness: 0.35~0.6 mm
Panel thickness: 50/75/100/125/150 mm
Effective width
(1) 950mm ---for roof
(2) 1150mm---for wall
Length: According to customer's request, less than 11.8m
Materials: Inner is Rockwool, two sides is Color steel tile

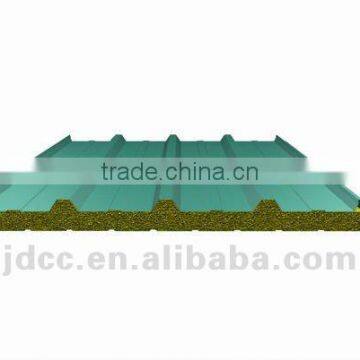

Structure: three layers:
(1) upper layer is steel sheet,
(2) the inner layer is  rock wool sandwich,
(3) the bottom layer is also steel sheet
Rockwool density: 120(kg/m3),etc
Color: According to the customers’ requirement
Parts: Steel line for easy connect one by one
Film covering in order to protect the steel of panels
Lifetime: 15~20 years
Character: Light in weight, heat insulation, fireproof and waterproof, benvironmental

Usage: various roofs and walls referring to the large size factory buildings, storages,
exhibition halls, gymnasiums ,etc
