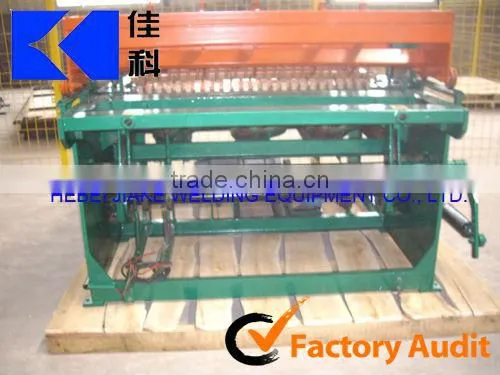

Wire Mesh Panel Welding Machine

Wire mesh panel welding machine

Function Characteristics:

This machine adopts electrical synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate , it has stable function , firm welded point, and without welded tracks. Not only welding speed is fast, but also it is easy to learn and operate. Fallen weft structure and drawing materials are automatic, so it is even and accurate , the edge of mesh is regular, it is unnecessary to slice the ends, drawing mesh system adopts the device with elastic tension link and fixing mesh , it is easy to regulate mesh hole, and mesh size is rather accurate, welding aperture could also adjust randomly within range.

Use of The Product:1 welding for breed auqatic mesh (poultry mesh)

2 welding buliding mesh(reinforcing mesh,floor warming mesh,seed-bed mesh and room mesh).

Main parameter:

Wire diameter         1.8-3.0(mm)

Rated voltage          380V

Welding aperture      25 x 25-200 x 200(mm)

Rated electrical power    160KVA

Width of mesh        1200mm

Overall dimension    2.2 * 1.9 * 1.5M

Number of warp       16

Machine weight        2.8T

Welding speed         60 (times/minute)
