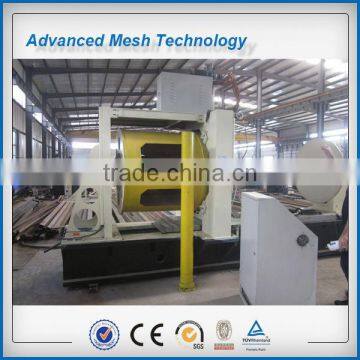

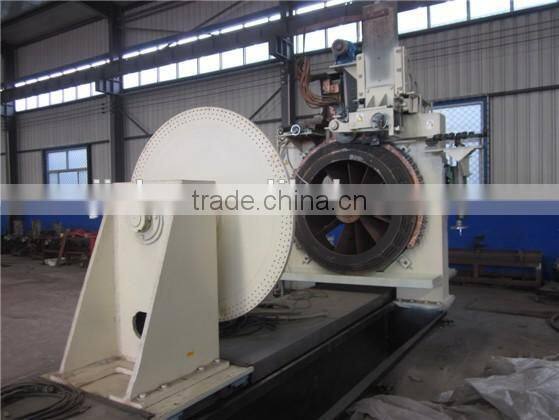

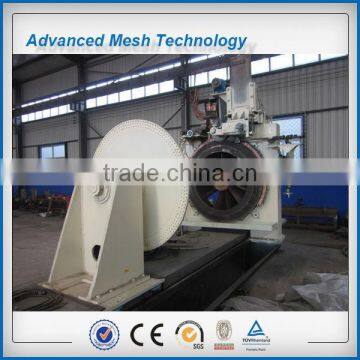

Wedge wire mesh filter welding machine (100-400mm)
1. Spit-hair accuracy of welding, control for both axises, servo feed
2. Contro system: Panasonic (Janpan)
3. Servo-feeds and ser-drives:Panasonic(Japan)
4. Ball-and screw unit: (Taiwan)
5. Liner slider bearing(South Korea)
1.The machine tool is intended for manufacturing of wedge wire screens in length up to max.4000mm.
2.The strength, precision and design flexibility that characterize our screens makes them the choicein a broad range of industries and applications.
3.It made up of CNC mainframe, welding transformer, control cabinet and so on.
4.The usage for welding wedged wire wrapped screen pipe, mineral filter mesh, coal washing mesh, water wells creen etc.
Wedge wire screen diameer range | 100-400mm |
Wedge wire screen length | max6000mm |
Suitable wire | stainless steel or carbon steel, diameter 2.0-5.0mm |
Slot(aperture)/Space between welding lines | 0.2-16mm
|
Welding precision | If wire diameter tolerance is within 0.001mm,welding precision will be within +/-0.04mm |
Welding speed | 6-30rpm adjustable based on tube diameter |
Welding transformer power | AC 100kw |
Driving motor power | servo motor(one 3kw and one 2kw and one1.5kw) |
Welding material | stainless steel wire &low-carbon steel wire |
Voltage | 3 phase, 380V,50HZ or according to customer’s requirement. |
Dimension | 13m*1.5m*3.3m |
Weight | 10 ton |
Hebei Jiake Welding Equipment Co., Ltd. founded in 2000, located at the junction of Beijing, Tianjin and Shijiazhuang, Anping County, which is famous as “Hometown of wire mesh” in China, is a professional manufacturer for wire mesh machineries. The company has been developing smoothly and quickly and it has more than 100 employees. And the company has own wire mesh machineries and several pilot plants with strong technical force and advanced production and checkout equipments.
Our main products: Steel bar mesh welding machine, CNC fence mesh welding equipment , 3D panel wire mesh machine (Bevel inserting combination joint machine), welding equipment of mine sieve mesh, chicken cage mesh welding machine, electric welded mesh machine, 3D panel production line and so on.
Hebei Jiake Welding Equipment Co.,Ltd. (Manufacturer)
Factory Add: Wire Mesh Industrial Zone, Anping County, Hebei, China.
Tel: +86-311-80796160
Fax: +86-311-86053790
Sales manager:Jenny Yang
Mobile(Whatsapp):+86 13739793519
Skype: dapu_machine
QQ:3050875416
Inquiry now, and I will reply ASAP!!!
Welcome to our factory!!!
