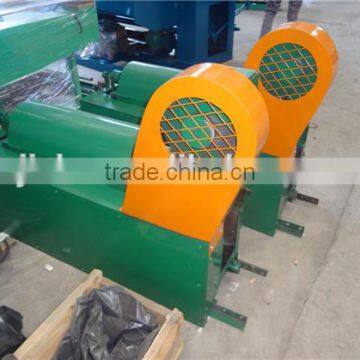

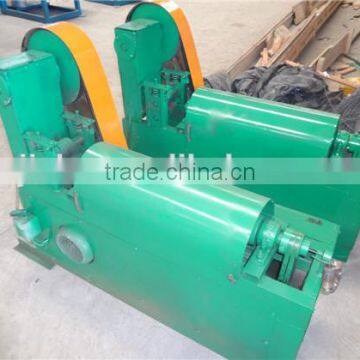

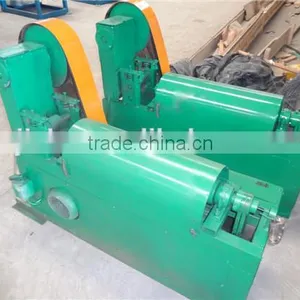

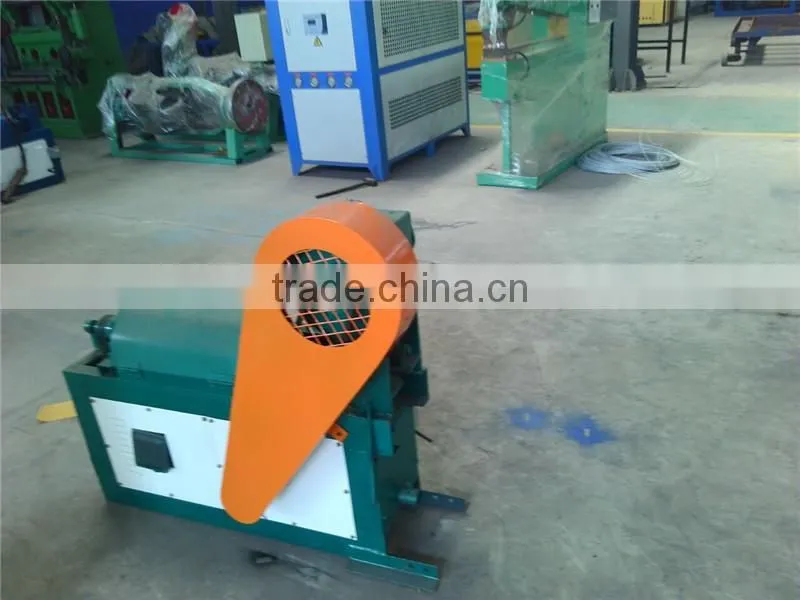

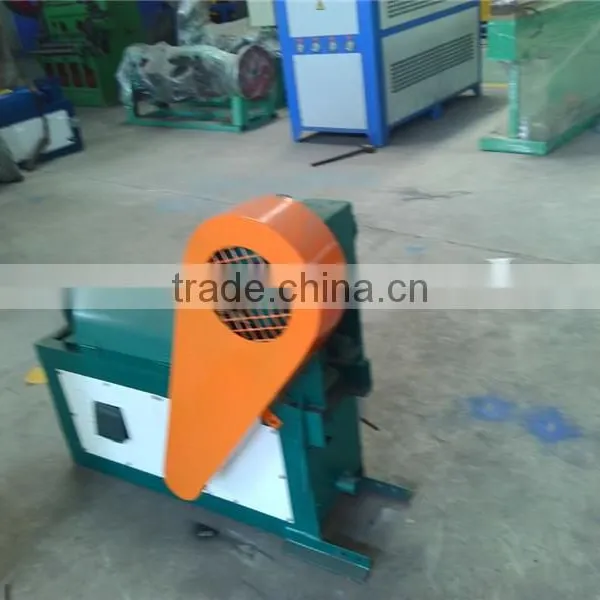

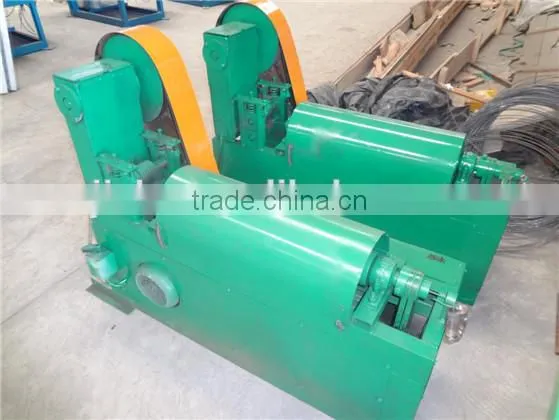

steel wire straighting and cutting machine for wire cut
It is one of the producing machine. It is used to straight and cut the wire metal which diameter is under 12mm, then rust the metal film. It is consist of by straightening barrel, pull line, cut machine, fixed-length frame, frame and drive machine.
Parameter of the machine
Model | SC1.5-3.5 | SC2-5 | SC4-8 | SC4-12 | SCHA | SCHB |
Wire diameter(mm) | 1.5-3.5 | 2-5 | 4-8 | 4-12 | 5-12 | 5-12 |
Straight length (mm) | 30-2000 | 30-6000 | 200-6000 | 200-6000 | 700-12000 | 700-9000 |
Straight speed (m/min) | 25 | 30 | 35 | 30 | 45 | 45 |
Straight motor (kw) | 1.5 | 1.5 | 4 | 7.5 | 11 | 11 |
Cutting motor (kw) | 0.75 | 0.75 | 3 | 4 | 4 | 4 |
Size(m) | 1.7X0.4X0.8 | 1.2X0.4X0.9 | 7.3X0.6X1.2 | 8X0.8X1.3 | 2.1X0.7X1.3 | 1.9X0.6X1.4 |
Weight(kg) | 130 | 150 | 650 | 1000 | 1200 | 900 |
error of Straight length | ±1 | ±1 | ±1 | ±1 | ±10 | ±10 |
Certificate

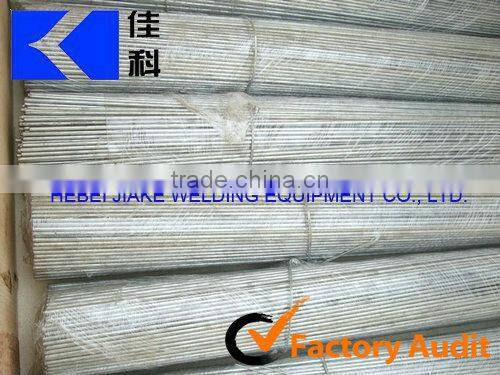

Finished products

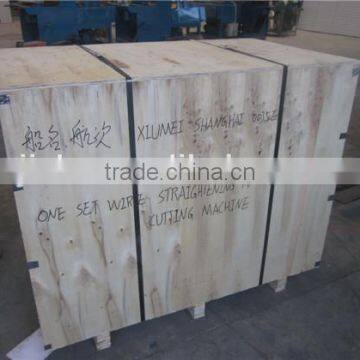

packing
Our service
