Steel Wire Straightening and Cutting Machine

Steel Wire Straightening and Cutting Machine photo-1
Steel Wire Straightening and Cutting Machine photo-2
Steel Wire Straightening and Cutting Machine photo-3

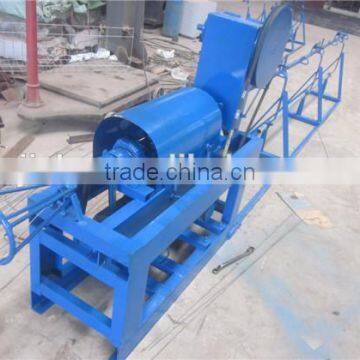

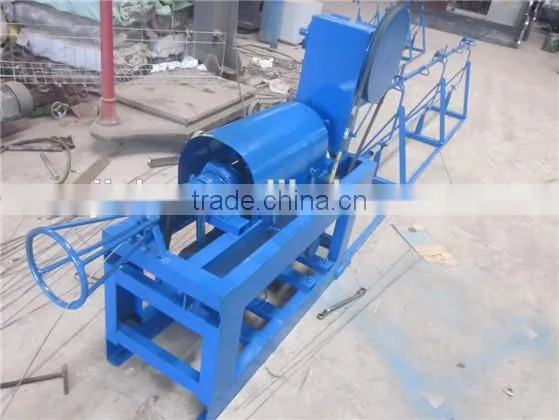

Steel Wire Straightening and Cutting Machine photo-4
Steel Wire Straightening and Cutting Machine photo-5
Steel Wire Straightening and Cutting Machine photo-6
US$ 980 - 5,000 MOQ: 3 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Model Number:
SC1.5-3.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name JIAKE
Model Number SC1.5-3.5
Condition New
After-sales Service Provided Engineers available to service machinery overseas

steel wire straightening and cutting machine

steel wire straightening and cutting machine
Packing of steel wire straightening and cutting machine

steel wire straightening and cutting machine





Automatic wire straightening machine

wire straightening machine

wire straightening  machine can straighten and cut all types of metal wire,the straightening metal wire is widely used in construction.



wire straightening machine mainly includes:



tray bar rack

straightening rack

tractor cutting device

base support

motor rotation facility

control box of electric appliances. .





Parameter of the wire straightening machine

Model

SC1.5-3.5

SC2-5

SC4-8

SC4-12

SCHA(Mechancial)
5-12

SCHB(Hydraulic)
5-12

wire diameter

( mm)

1.5-3.5

2-5

4-8

4-12

5-12

5-12

Cutting length

 (mm)

30—2000

30-6000

200-6000

200-6000

700—12000

700—9000

Cut error

 (mm)

±1

±1

±1

±1

±10

±10

Speed

(m/min)

25

30

35

30

45

45

Straight motor

 (kw)

1.5

1.5

4

7.5

11

11

Cut motor

 (kw)

0.75

0.75

3

4

4

4

Overall size

 (m)

1.7*0.4*0.8

1.2*0.4*0.9

7.3*0.6*1.2

8*0.8*1.3

2.1*0.7*1.3

1.9*0.6*1.4

Weight

(kg)

130

150

650

1000

1200

900
