Twisted Square Bar Drawing Machine Production Line

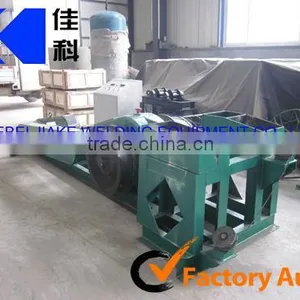

Twisted Square Bar Drawing Machine Production Line thumbnail-1
Twisted Square Bar Drawing Machine Production Line photo-1
US$ 8,000 - 8,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Model Number:
JK1200T
Contact Supplier Request Quote Chat Now
Hebei Jiake Welding Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name JIAKE
Model Number JK1200T
After-sales Service Provided Engineers available to service machinery overseas

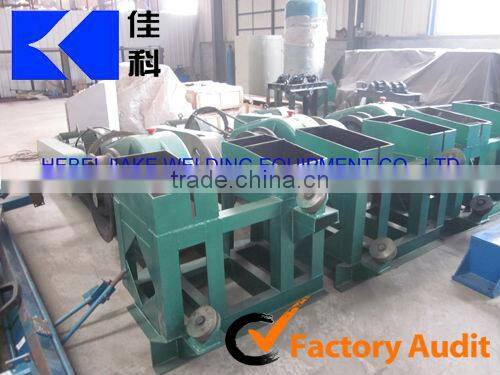

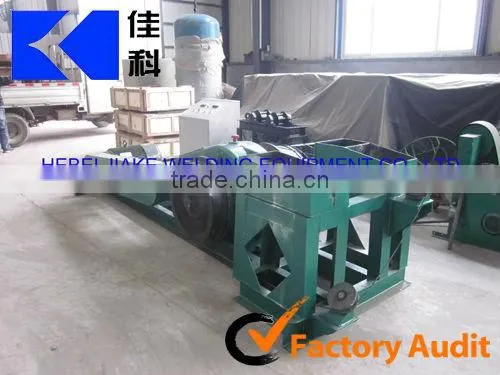

Twisted square bar drawing machine production line

Twisted square bar drawing machine production line

Machine characters:

This machine is to twist from rod wire to twisted square bar by special drawing mould. It’s made up of sheller, drawing machine part and control cabinet. It is controlled by inverter, which the frequency can be adjusted. So ,the speed can be adjusted



Frequency motor :22kw

Weight:3500kg

Machine size :4.5*1.1*0.8M



Twisted bar specification

Inlet Wire  Round drawing mould Outlet square bar
6.5mm 6.1mm 5*5mm
8mm  7.2mm  6*6mm
10mm  9.2mm  8*8mm

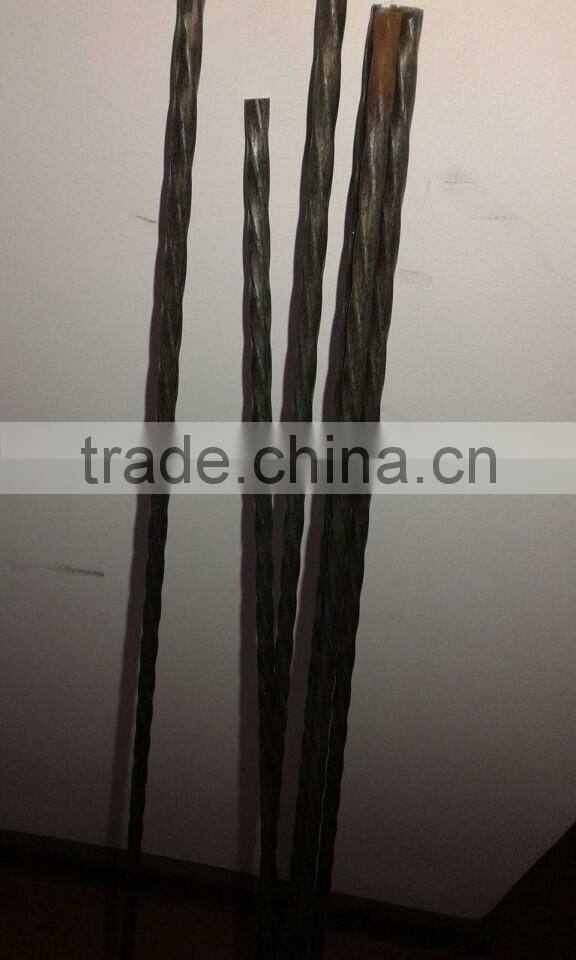

Finished products

Twisted square bar drawing machine production line

Rated machines

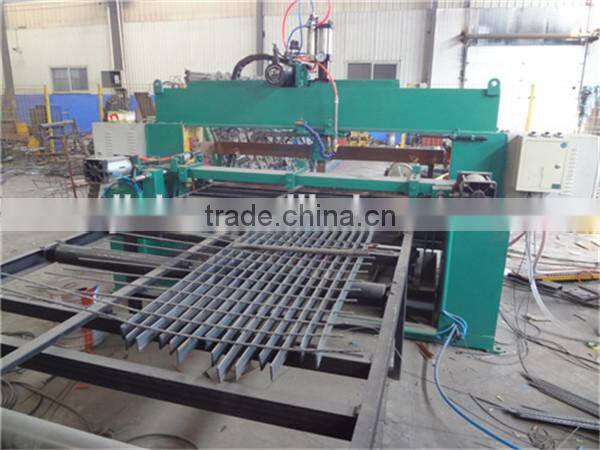

Wire straightening&cutting machines              Steel grating making machine



Twisted square bar drawing machine production line Twisted square bar drawing machine production line



Wire diameter :4-8mm                                   Twisted bar is used in this machine to weld

cut speed:35M/min                                         steel grating

Motor:4kw

weight:650kg

Our factory machine cataloges

Welded wire mesh machine ,                   fence mesh welding machine

Chicken cage welding machine               Electric welded mesh machine

Bird cage welding machine                     reinforcing mesh welding machine

Steel grating machine                             screen welding machine



Contact Person: Edson An
Skype: dapu-machine
QQ: 1596623208
Wechat: edson652113
Mobile: 86-15930180627(whatsapp)

Twisted square bar drawing machine production line
