low carbon steel simple pullery wire drawing equipment price
Working principle
1. Main part: main reducer motor, mould case, guiding wheel frame and general electrical motor control system.
2. Each pot has a reducer motor;
3. Droved by gears.
Suitable materials
low-carbon steel, copper, aluminum, etc.
Technical Parameter
One-set 4-pot wire drawing machine (6.5mm-3.7mm) | |||||||||
| 1st | 2nd | 3rd | 4th | |||||
Model size (mm) | 6.2+5.7 | 5.0 | 4.3 | 3.7 | |||||
Motor capacity (KW) | 15 | 11 | |||||||
Rotational speed (r/min) | 49 | 58 | 73 | 78 | |||||
Type of motor | 6-level motor | 4-level motor | |||||||
Productivity | 78*Dπ=135 (r/min) | ||||||||
One-set 5-pot wire drawing machine (3.7mm- 2.0mm) | |||||||||
| 1st | 2nd | 3rd | 4th | 5th | ||||
Model size (mm) | 3.3 | 2.9 | 2.6 | 2.3 | 2.0 | ||||
Motor capacity (KW) | 7.5 | ||||||||
Rotational speed (r/min) | 73 | 85 | 103 | 111 | 120 | ||||
Type of motor | 6-level motor | 4-level motor | |||||||
Productivity | 120*Dπ=207 (r/min) | ||||||||
Note: 1.The productivity of Simple Wire Drawing Machine: 312.5 kg/h 2. The rotational speed of 4-level motor: 1440r/min 3. The rotational speed of 6-level motor: 960r/min 4. The max. Diameter of inlet wire: 6.5mm 5. Suitable material: low-carbon iron wire. E.g. Q195, Q215, and Q 235 (annealing) 6. The productivity of Simple Wire Drawing Machine: 312.5kg/h | |||||||||

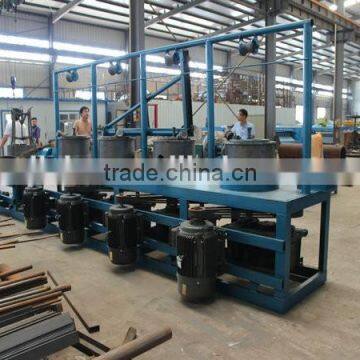

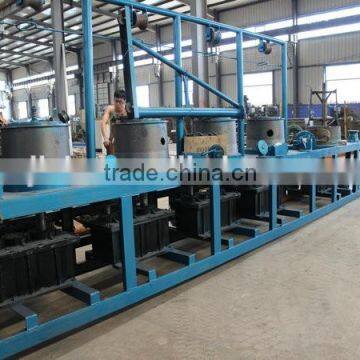

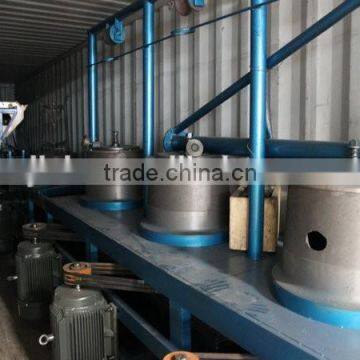

Simple pulley wire drawing machine

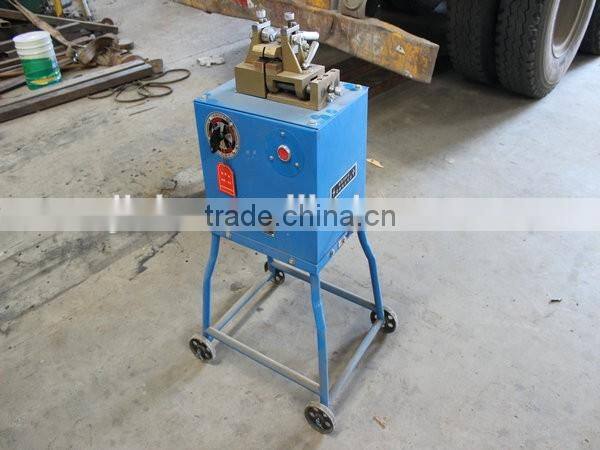

Auxiliary equipment 1.Butt-welding machine

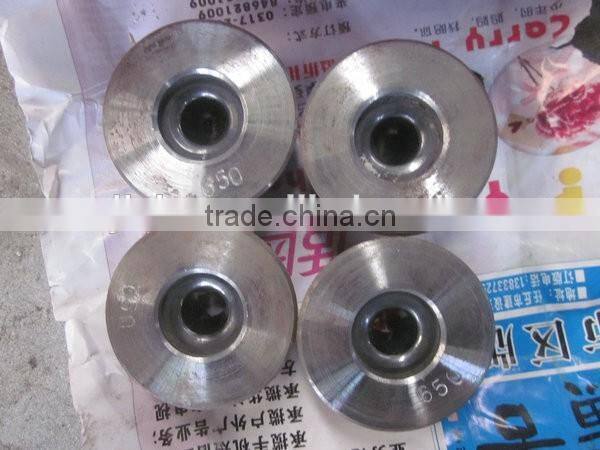

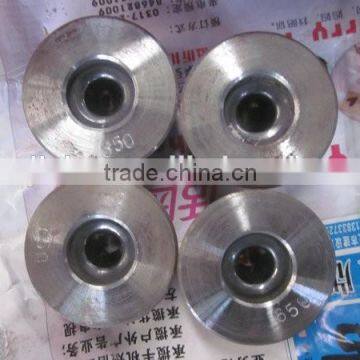

2.Descharging machine 3.Tip-roller 4.Drawing mould
Finished products Application
The product is extensively used to produce standard parts (e.g. welding rod, wire nail, screw, etc.).
1.high speed; 2.high productivity; 3.low noise; 4.low cost.
Product catalog
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
