Home > Products > Wire drawing machine > wire drawing machine with easy compaction
wire drawing machine with easy compaction
- 20 Set / Sets per Month
- Xingang port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
wire drawing machine with complete electrical system
-
Pulley Wire Drawing Machine with water seal cooling system
-
easy combination and high productivity pulley wire drawing machine
-
wire drawing machine for wire rope
-
wire drawing machine for welding rod
-
vertical drawing equipment for low carbon round bar wire
Product Details
| Place of Origin | Hebei, China | Brand Name | JIAKE | |
| Model Number | DLW-1-6/560 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

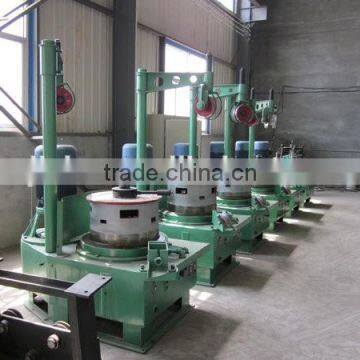

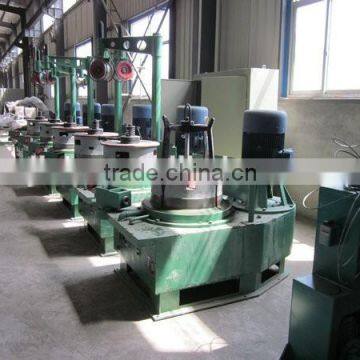

wire drawing machine with easy compaction
The machine has complete electrical system, perfect protection system and water seal cooling system.
Technical Parameter
| Model | DLW-1-6/560 |
| Strength tensile | Mpa ≥110kg/mm2 |
| Max.inlet Dia | 6.5mm |
| Mini. outlet Dia | 2.0mm |
| Drawing path | 1-8 |
| Pot Dia | 560 |
| Capacity | 422m/min |
| Total compress | 78-88.5% |
| Inverter | INVT |
| Unit motor | 18.5kw/22kw |
| Model size | Rotational speed (r/min) | Motor capacity (KW) | Type of motor | productivity |
1st | 6.2mm+5.7mm | 58 | 18.5 | 4-Level motor | 240*Dπ=377 |
2nd | 5.0mm | 78 | |||
3rd | 4.4mm | 100 | |||
4th | 3.8mm | 124 | |||
5th | 3.2mm | 150 | |||
6th | 2.7mm | 178 | |||
7th | 2.3mm | 208 | |||
8th | 2.0mm | 240 | |||
Note: 1. The rotational speed of 4-level motor: 1440r/min 2. The max. diameter of inlet wire: 6.5mm 3. Suitable material: low-carbon iron wire. E.g. Q195, Q215, and Q 235 (annealing) 4. 8mm high quality low-carbon iron wire could be drawn by Model 560 drawing machine with 9pots, and needs 6-level motor and the capacity (22KW). | |||||
Descaling machine
Feature:
Easy combination
High productivity
Convenient operation and management
Materials: low-carbon steel, copper, aluminum, etc.
Application: The product is extensively used to produce standard parts (e.g. welding rod, wire nail, screw, etc.).
Descharging machine
Drawing mould
Finished products
Processing

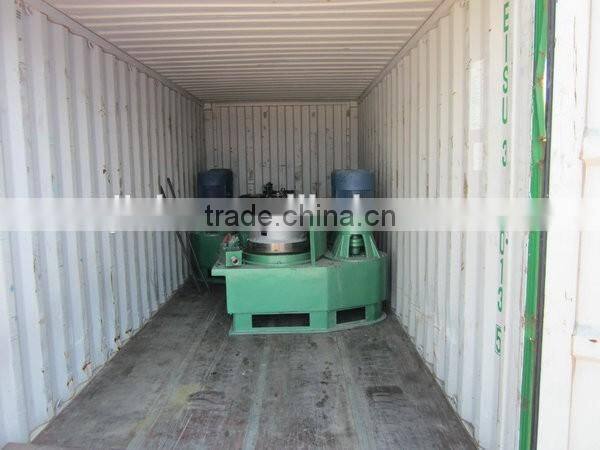

Packing
Product catalog
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
