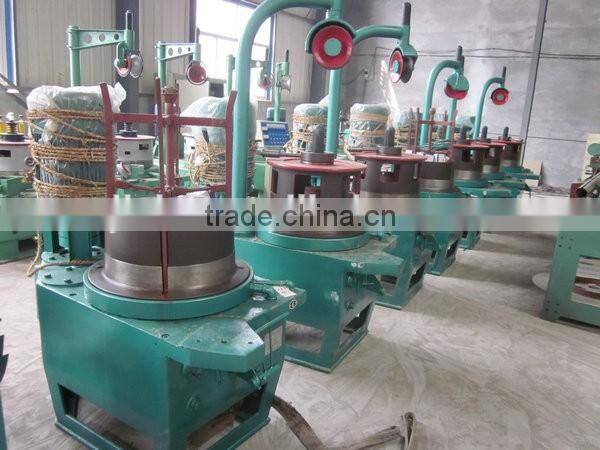

High capacity pulley wire drawing machine with annealer
Technical Parameter
|
Model size |
Rotational speed (r/min) |
Motor capacity (KW) |
Type of motor |
productivity |
1st |
6.2mm+5.7mm |
58 |
18.5 |
4-Level motor |
240*Dπ=377 |
2nd |
5.0mm |
78 |
|||
3rd |
4.4mm |
100 |
|||
4th |
3.8mm |
124 |
|||
5th |
3.2mm |
150 |
|||
6th |
2.7mm |
178 |
|||
7th |
2.3mm |
208 |
|||
8th |
2.0mm |
240 |
|||
|
Note: 1. The rotational speed of 4-level motor: 1440r/min 2. The max. diameter of inlet wire: 6.5mm 3. Suitable material: low-carbon iron wire. E.g. Q195, Q215, and Q 235 (annealing) 4. 8mm high quality low-carbon iron wire could be drawn by Model 560 drawing machine with 9pots, and needs 6-level motor and the capacity (22KW). | |||||
The machine has complete electrical system, perfect protection system and water seal cooling system.
Feature:
Easy combination
High productivity
Convenient operation and management
Materials: low-carbon steel, copper, aluminum, etc.
Application: The product is extensively used to produce standard parts (e.g. welding rod, wire nail, screw, etc.).

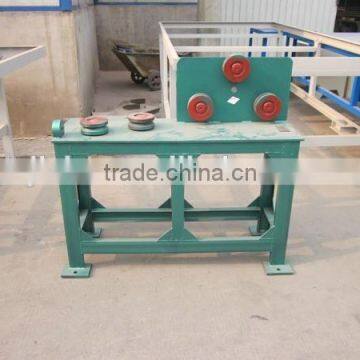

Descaling machine
Drawing mould

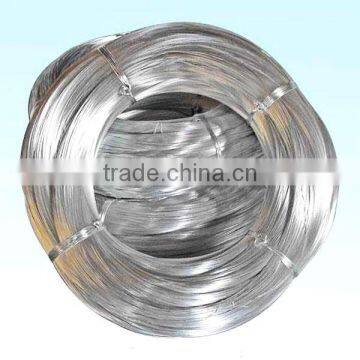

Finished products
Processing
Packing
Related products
Nail making machie
Product catalog
1. Guarantee period: 12 months (but no longer than 18 months since departure from Xingang Port)
2. Our engineers are available to install and maintain machine overseas.
3. Customized machine.
4. OEM support.
5. Fast delivery.
6. Moderate price.
7. Door to Door service or 24-hour email service.
Please feel free to contact us,we will reply within 24h!
We want to know:
1. quantity you need (set)
2. wire diameter from inlet to outlet
