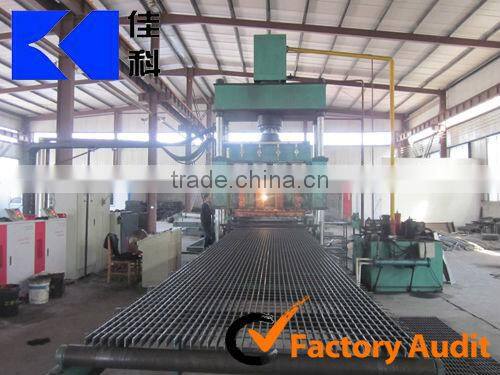

metal grating welding equipment
Metal grating welding machine use for finish flat-rolled steel and round steel (is it entangle square steel to sprain ) horizontal to weld automatic production line of shaping alternately while being vertical, the products can reach hundreds of kinds of specifications , apply to the platforms of such trades as petroleum , chemical industry , electricity , quay , municipal administration , environmental protection , national defence ,etc. , hang and carry , enclose the bar , walk etc. extensively.
24 meters long, 3.8 meters wide production line this, divide into person , welder person , cut according to process worker of end head person , finished product deposit engineering location, worker of material loading,. Material loading adopt artificial material loading (flat-rolled steel ), horizontal pole (round steel ) hands over the material automatically , then weld automatically, walk into automatically, is it cut location , worker of material , cut end head automatically , artificial to operate with draw material car hand over the finished product to the depositing area of the finished product to reach, then one is put automatically , pile up the platform to drop automatically , is full of until piling up the platform, operate and introduce the car artificially and put out the finished product one.
Main technical data:
Input power |
380V 50Hz |
|
Length of grating |
6000 mm |
|
Width of grating |
1000 mm |
|
Bearing flat bar |
thickness |
2.5 - 7 mm |
width |
25 - 75 mm |
|
Bearing flat bar space |
30 mm , 50 mm(customized) |
|
Cross bar dia. |
4-8 mm |
|
Cross bar space |
from 38mm to 160mm adjustable |
|
Max. pressure |
160 Ton |
|
Welding transformer |
1000KVA |
|
Welding frequency |
1000Hz—intermediate frequency |
|
Power transformer needed |
630KVA. |
|
|
Rated amount welding electric current |
AC 200KA |
|
|
Max amount welding electric current |
AC 300KA |
|
Welding speed |
6-9 times/minutes(weld 2 cross bar each time) |
|
Overall dimension |
18000*3800*4800mm |
|
Weight |
13000kg |
|
