Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Steel Grating Welding Machine
US$ 20,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Jiake
Model Number:
JK-1000B
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Grating Welding Equipment/metal Grating Welding Machine/grating Lattice Weld MachineUS$ 200,000 - 300,000MOQ: 1 Set -
Grating Spot Welding EquipmentUS$ 10,000 - 50,000MOQ: 1 Set
-
Steel Grating Welding EquipmentUS$ 200,000 - 300,000MOQ: 1 Set
-
Spot Grating Welding MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
Spot Grating Welding Machine FactoryUS$ 20,000 - 30,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
Jiake
Model Number
JK-1000B
Voltage
380V 50Hz
Current
150A
Rated Capacity
300KVA
Rated Duty Cycle
80%
Dimensions
16000mm x 2500mm x 1500mm
Weight
4000kg
Usage

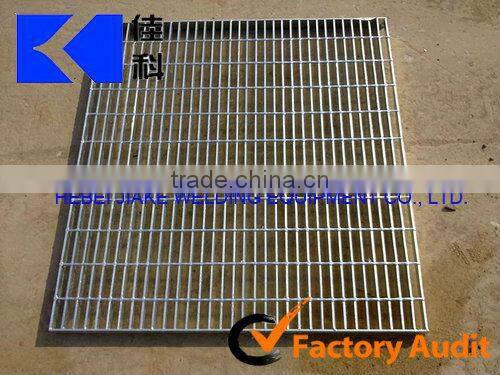

produce grating panels
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas

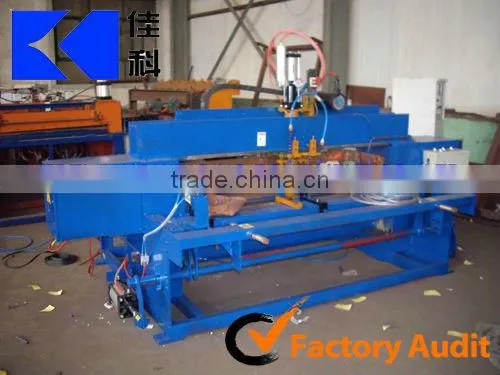

steel grating welding machine
This welding machine adopts technology of power electronic synchronous control, the welding time and separate-welding are combined by digital integrated circuits, the control precision are very accurate, operate smoothly and the welding is very firmly.
The transfer parts used imported pneumatic element, it has characteristic of pressure uniformity, few malfunction and long service life.
Main parameter:
Measurement(L x W x H):16000mm x 2500mm x 1500mm
Weight:4T
Rated voltage:380V,50HZ.
Power:300KVA
Welding diameter:
torsion angle iron diameter5-8mm, flat iron 3 x 20mm-5 x 65mm
Welding aperture:warp30mm or 40mm, weft 50mm or 100mm
Welding width:1000mm
