Electro Forged Steel Grating Welding Equipment

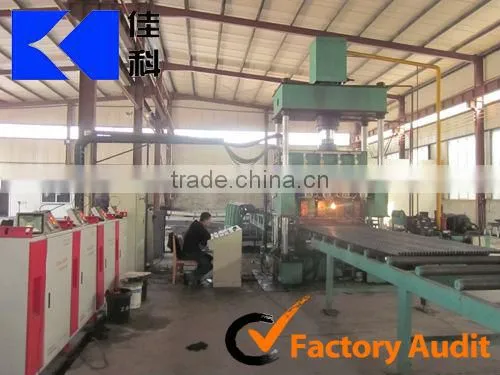

Electro forged steel grating welding equipment

Features:

Steel doses of board weld production line to finish flat-rolled steel and round steel (is it entangle square steel to sprain ) horizontal to weld automatic production line of shaping alternately while being vertical, the products can reach hundreds of kinds of specifications , apply to the platforms of such trades as petroleum , chemical industry , electricity , quay , municipal administration , environmental protection , national defence ,etc. , hang and carry , enclose the bar , walk etc. extensively.

24 meters long, 3.8 meters wide production line this, divide into person , welder person , cut according to process worker of end head person , finished product deposit engineering location, worker of material loading,. Material loading adopt artificial material loading (flat-rolled steel ), horizontal pole (round steel ) hands over the material automatically , then weld automatically, walk into automatically, is it cut location , worker of material , cut end head automatically , artificial to operate with draw material car hand over the finished product to the depositing area of the finished product to reach, then one is put automatically , pile up the platform to drop automatically , is full of until piling up the platform, operate and introduce the car artificially and put out the finished product one.

Main technical data:

Input the power : 3 phase  380V 50Hz
Specified input power: 1600KVA
Amount welds the electric current: 200KA
Weld the electric current the most largely: 350KA
Flat-rolled steel is wide 20 --75mm, thick 2.5 --7mm
Horizontal pole(diameter of cross rod):  4 , 5 , 6 , 8mm
Length: 6000mm
The width of the largest weldment: 1000 mm.
Pitch of flat-rolled steel : 30mm, 40mm, 50mm, 60mm (Minimum 25mm)
Pitch of cross rod: 50mm, 100mm (from 38mm to 160mm)
Welding speed: 15-25times/minute
