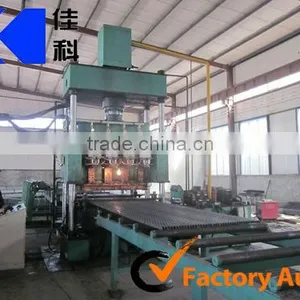

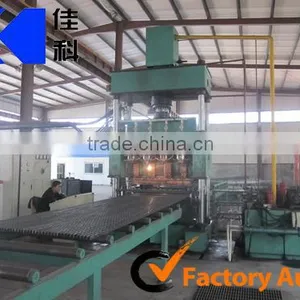

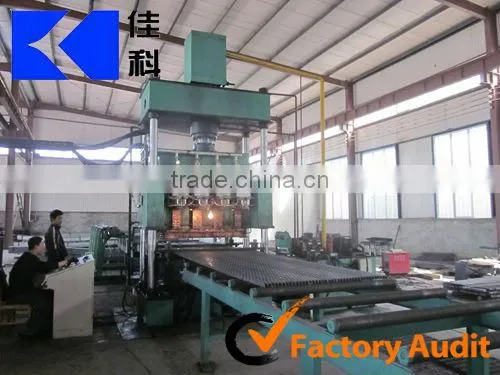

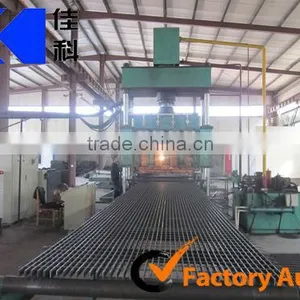

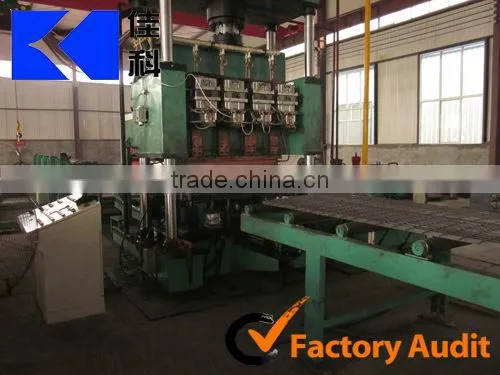

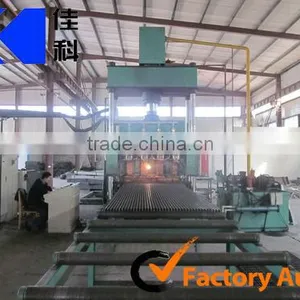

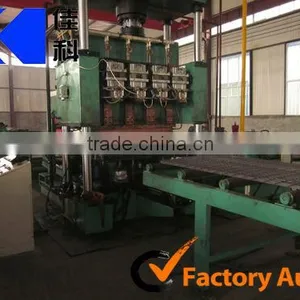

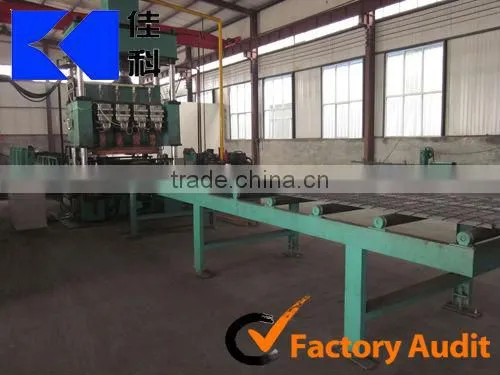

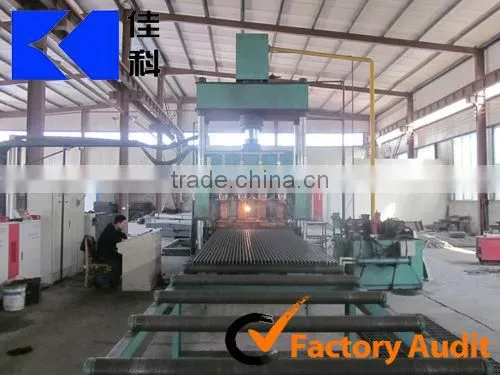

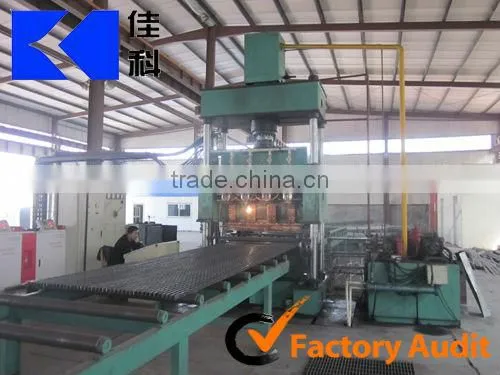

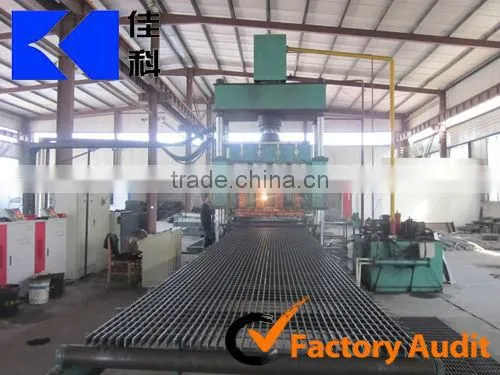

Steel grating welding equipment
Steel grating welding equipment is to finish flat bar and twisted (round, square) cross bar horizontal to be welded.
1. This machine adopts technology of power electronic synchronous control, the welding time and separate-welding are combined by digital integrated circuits, the control precision are very accurate, operate smoothly and the welding is very firm.
2. The transfer parts used imported pneumatic element, it has characteristic of pressure uniformity, few malfunction and long service life.
3. 24meters long, 3.8meters wide production line this, divided into portion, welder portion, cut according to process worker of end head portion, finished product deposit engineering location, worker of material loading.
4. Material loading adopt artificial loading(flat-rolled steel), horizontal pole(round steel) hands over the material automatically, then weld automatically, walk into automatically, it is cut location, worker of material, cut end head automatically, artificial to operate with draw material car hand over the finished product to the depositing area of the finished product to reach, then one is put automatically, pile up the platform to drop automatically, is full of until piling up the platform, operate and introduce the car artificially and put out the finished product one.
5. The mesh drawing part adopts air cylinder and the welding head is hydraulic cylinder. Meanwhile, the post processing contains galvanization; cutting and shape them as customers’ need.
Steel grating welding equipment Main parameter:
Wire diameter,flat iron:2.5*25~5*65mm(thickness*height) Twisted steel:5~8mm | Width of mesh: below 1m |
Length of mesh:6m | |
Welding aperture,weft:30mm,50mm,100mm (adjustable) Longitude:30mm,40mm,50mm(if need adjusted, should change the mould) | |
Transformer,150KW*2sets | Production:60~100 cubic meter/8hours |
Power supply,100KW(50m is better) | Weight:4T |
Rated voltage:380V,50Hz,3Phase(according to the customer’s requirement) | |
Accessorial parts: electric control cabinet; bracket; straightening and cutting machine; twisting drawing machine; carbon dioxide welding machine; manual cutting machine; air compressor.
1. Reinforcing Mesh Welding Machines
wire diameter: 5-12mm mesh width: max2.5m wire spacing: 100-300mm mesh length: max12m welding speed: 30-60 cross wires/min | | |
2. Fence Mesh Welding Machines
wire diameter:3-6mm mesh width:max 2.5m wire spacing:50-200mm welding speed: 45-75 cross wires/min | | |
3. Concrete Reinforcing Mesh Welding Machines
wire diameter:3-8mm mesh width: max2.5m wire spacing 100-300mm welding speed:45-75 cross wires/min | | |
4.Poultry Cage Mesh Welding Machines
wire diameter 1.8-3.5mm mesh width:1.2m wire spacing: 50-200mm welding speed:60-90cross wires/min | | |
5. Electric Welded Mesh Machines
wire diameter:0.45-0.85mm wire diameter:0.6-1.3mm wire diameter:0.8-1.6mm wire diameter:1.4-2.7mm mesh width: as required wire spacing: as required | | |
