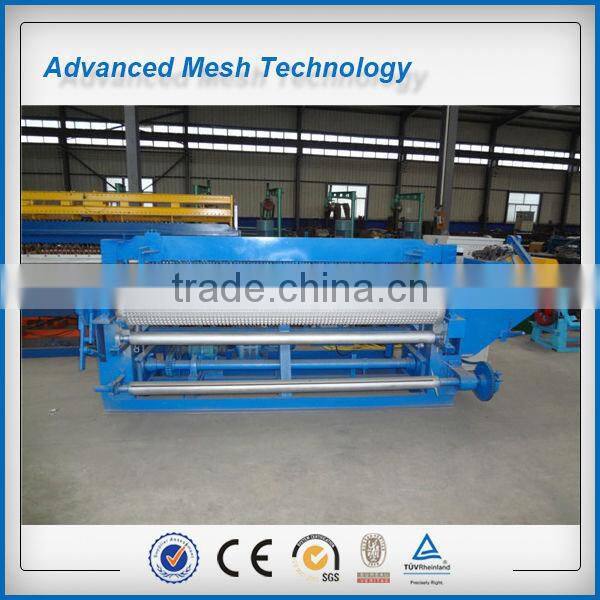

2015 New Products for Full Automatic Welded Wire Mesh Machines for Roll Mesh

Name: 2015 New Products for Full Automatic Welded Wire Mesh Machines for Roll Mesh
Brand: JIAKE
SKU: 140419652
Availability: InStock

US$ 25,000 - 60,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

JIAKE

Model Number:

JK-DNW-2

Hebei Jiake Welding Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name JIAKE

Model Number JK-DNW-2

Voltage 380V

Current 20

Rated Capacity 50KWA*4

Rated Duty Cycle 10

Dimensions 2350*1820*1700mm

Weight 2500kg

Usage construction mesh

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Automatic welded wire mesh machines

Product Description

Description of automatic welded wire mesh machines:

Wire feeding : both line wire and cross wire was feeding automatically from wire coils.
Raw material: low-carbon steel wire.
Easy to operate and electro-magnetism adjustable speed for welding.
Width: could be set according to customers’ requirement.

Technical Parameter

Parameter of automatic welded wire mesh machines:

Model	JK-DNW-2	JK-DNW-3
Wire diameter	0.65-1.8mm	1.0-2.2mm
Mesh width	1524mm(5’)	2133.6mm(7’)
Aperture /pitch/cell	25.4-101.6mm(1’-4”)	25.4-101.6mm(1”-4”)
Welding spot	30pcs (2”cell)	42pcs(2” cell)
Motor	2.2kw	4.0kw
Welded transformer capacity	60KVA*5	60KVA*7
Welding speed	120 cross wires/min	80 cross wires/min
Measurement	2.4m1.3m1.4m	2.9m1.3m1.4m
Weight	2.5T	3.5T
Voltage	380V 50HZ 3phase
Power transformer needed	120KVA 120mm²aluminum wire ≤100m between machines and transformer
