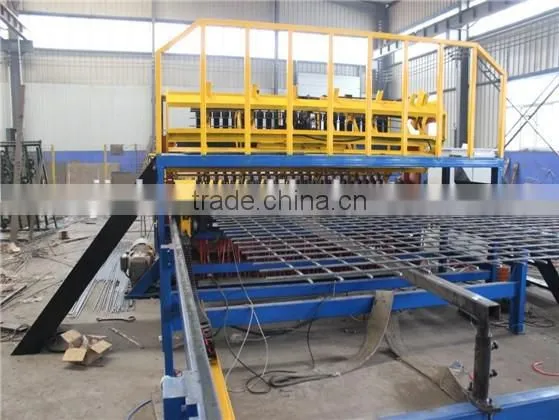

Reinforcing Rib Mesh Welding Making Machines for Bridge Mesh JIAKE Supplier
A.reinforcing rib mesh welding machines JK-RM-2500B
main parameter:
wire diameter:5-12mm
welding mesh width:max 2.5m adjustable or as required
welding mesh length: as required.
longitudinal wire pitch:100-300mm adjustable
cross wire pitch:50-300mm adjustable
main features:
1.HIM, plc, touch screen in client's native language, easy to iput and set all the parameter needed to weld the reinforcing mesh.
2. automaitc longitudinal wire input device with servo motor.
3. automatic cross wire input hopper with step motor
4. automaitc mesh out-put device with servo motor
5. with all the necessay machines to produce the end products.
B. reinforcing rib mesh welding machines JK-FM-2500S
main parameter:
wire diameter:3-6mm
welding mesh width:max 2.5m adjustable or as required
welding mesh length: as required, roll mesh or panel mesh
logitudinal wire pitch:50-200mm adjustable
cross wre pitch:25-200mm adjustable
| wire diameter | longitudinal wire pitch | cross wire pitch | mesh length | mesh width |
| 3-12mm | 50-300mm | 25-300mm | 2m-12m | 1m-3.3m |
