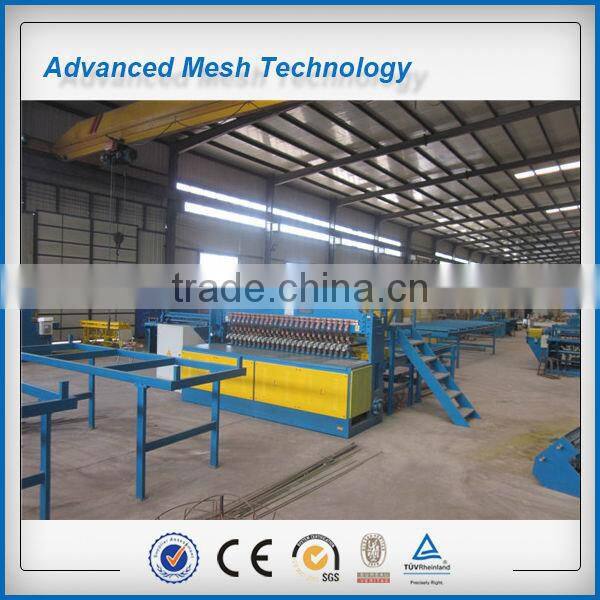

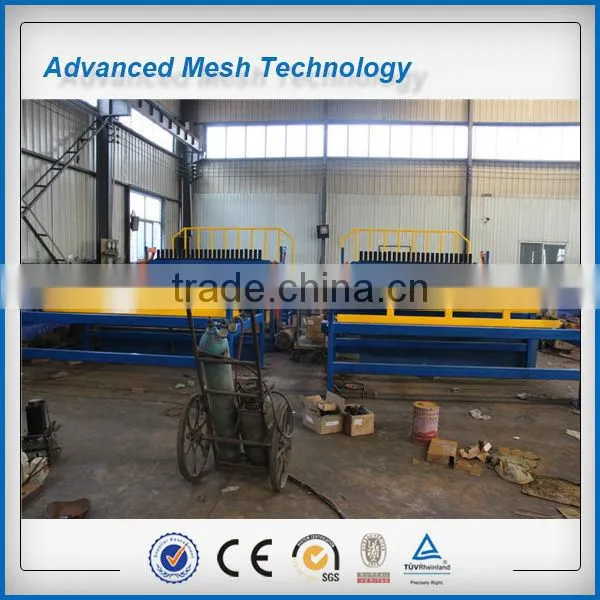

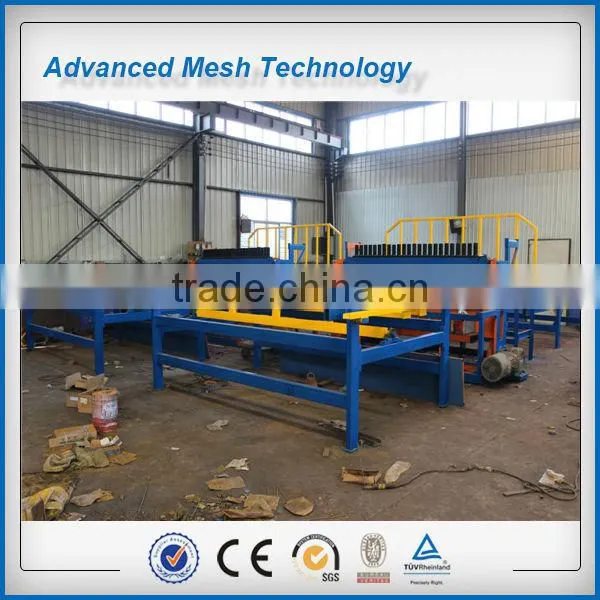

Automatic CNC Construction Reinforced Steel Bar Mesh Welding Machine JK-RM-2500B
US$ 60,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bridge Mesh Concrete Reinforcing Rib Mesh Production Lines Welding MachinesJIAKE SupplierUS$ 60,000 - 100,000MOQ: 1 Set -
Hot Rolled Ribbed Reinforcing Mesh Welding Making Machines JIAKE SupplierUS$ 60,000 - 100,000MOQ: 1 Set
-
Light Round Reinforcing Mesh Production Welding Machines for Baskets Bins Guards Enlosures Screen Racks Used Wire MeshUS$ 60,000 - 100,000MOQ: 1 Set
-
Automatic Coal Mine Reinforcing Mesh Production Welded Machines for Tunnel Support Wire MeshUS$ 60,000 - 100,000MOQ: 1 Set
-
Automatic Coal Mine Reinforcing Mesh Production Welded Machines Made in ChinaUS$ 60,000 - 100,000MOQ: 1 Set
Condition
New
Place of Origin
Hebei, China
Brand Name
JIAKE
Model Number
JK-RM-2500B
Usage
construction mesh
Voltage
380V
Current
12
Rated Duty Cycle
10
Rated Capacity
150kva*12
Dimensions
20m*3.2m*2.5m
Weight
8500kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
automatic CNC construction reinforced steel bar mesh welding machine JK-RM-2500B
about the steel wire mesh welding machines, it could be customized, such as the wire diameter, mesh width, aperture and so on.
Technical Parameter
Construction mesh welding machines main parameter
| model | JK-RM-2500B | JK-FM-2500S+ |
| wire diameter | 5-12mm | 4-8MM |
| mesh width or cross wire length | 2.5m or could be customized | 2.5m or ordered |
| mesh length or line wire length | could be customized | as required |
| aperture | 100*100-300*300mm could be adjusted | 100-300mm |
| welding spot | 24pcs or as required | 24pcs or ordered |
| welding transformer | 150kvaX12, one transformer with two welding spot | 125KVA*6 |
| Rated voltage | 380V 50HZ, 3phase or as client's requirement | as required |
| welding speed | 40-60cross wires/min | 45-75 cross wires/min |
| dimension | 20m*3.6m*2.5m | 8.5m*3.2m*1.8m |
| weight | 8500kg | 4500kg |
Product Description

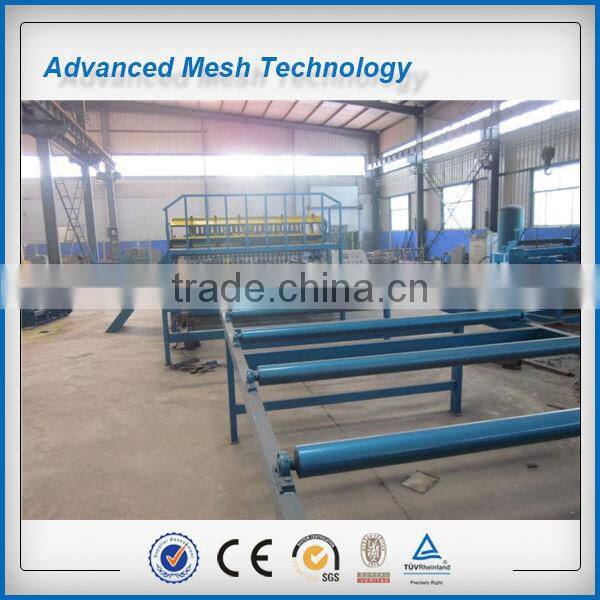

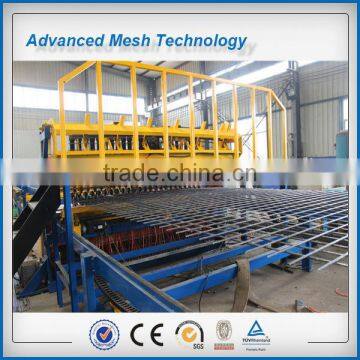

| mesh output side | |

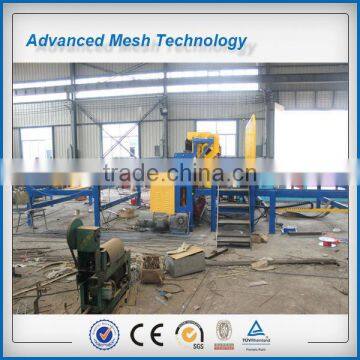

| line wire input side | |

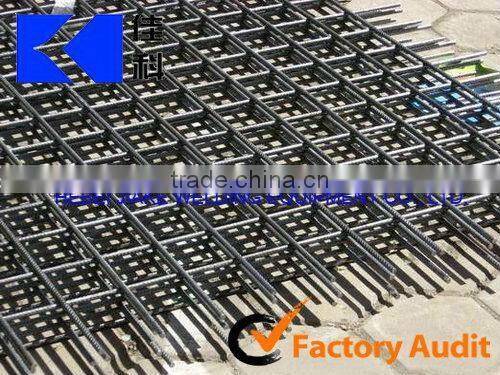

| end products |
Auxiliary Equipments

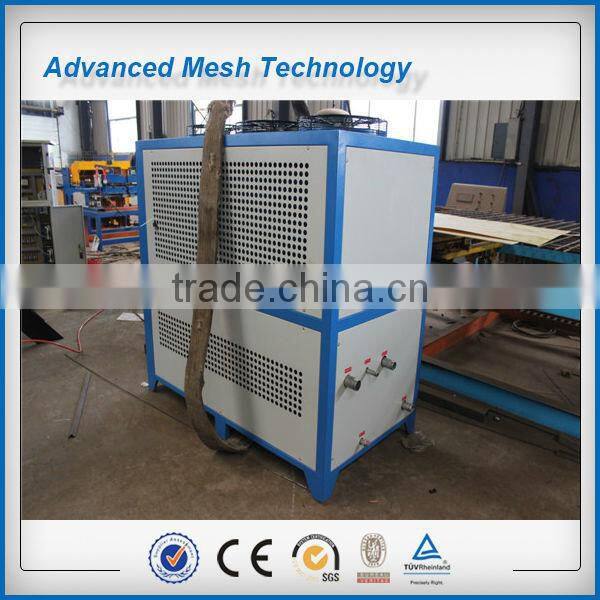

| water cooling system | |

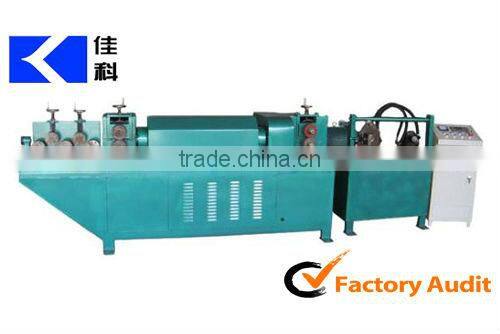

| wire straightening and cutting machine |
