Specifications
Electric welded wire mesh machine1.Wire diameter:1-2.5mm
2.Mesh width:4;5;6;7feet
3.CE

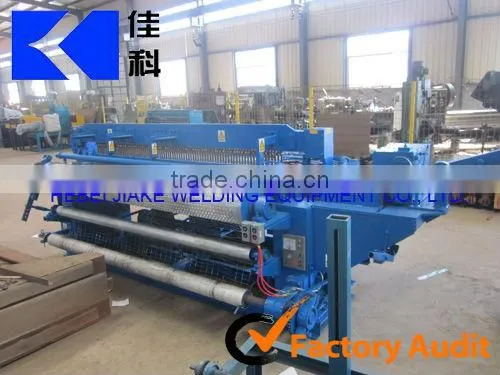

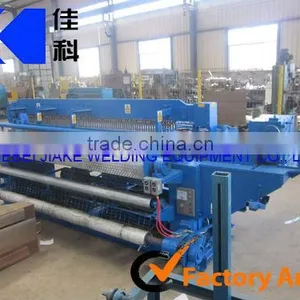

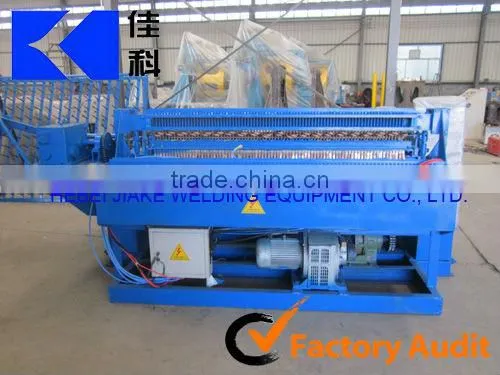

Electric welded wire mesh machine
Electric welded wire mesh machine main characteristics
Both longitude wire and cross wire are feeding from wire coils automatically.The raw material is appliable for low-carbon steel wire or stainless steel wire.It has advantage such as design reasonable,low noise,more stable,easier operate and Electro-Magnetism Adjustable speed for welding.The mesh size is precise and the machine can be set the width and length according to customer’s requirement.
It is made up of main welding machine ,electrical control cabinet,repairing table,repairing machine,bracket for longitude wires,wire rolling machine and plastic rollers.
Electric welded wire mesh machine technical parameters
Type |
DP-DNW-3 |
Mesh width |
1219.2mm;1524mm;1828mm;2133mm |
Aperture /pitch |
25.4mm-101.6mm |
Wire diametre |
1.0mm-2.2mm |
Motor |
2.2KW;4.0KW |
Welding speed |
<=80rows/min |
Measurement of machine |
2.5M*1.3M*1.4M 2.9M*1.3M*1.4M |
Weight |
2.0T;2.5T;3.0T;3.5T |
Welded transformer capacity |
60kw*4;60kw*5;60kw*6;60kw*7 |
Auxiliary equipments
Mesh repairing table;wire rolling machine;mesh repairing machine;bobbin stand-off

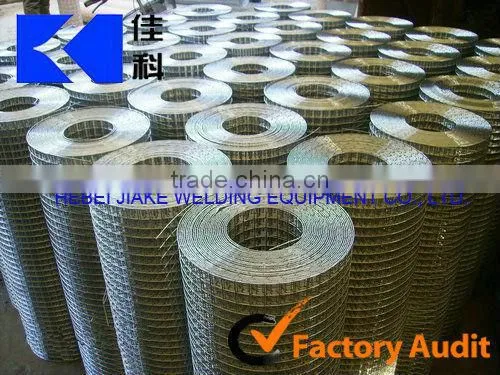

Products and application
Widely used in building network and farming network
