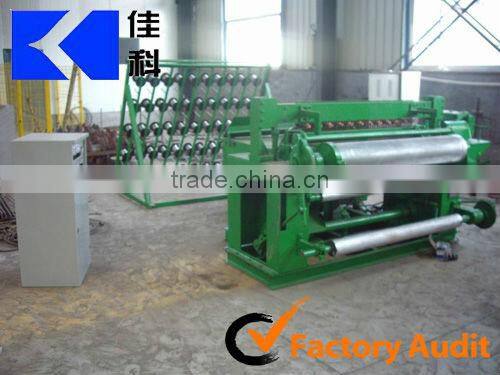

CNC automatic steel electric welded wire mesh machine
1.Description
The construction electric welded wire mesh machine is used to weld 0.4mm-2.2mm diameter metal mesh used in the small animal feeding It have faster speed , more less waste of the raw material,easy operation and can weld different size mesh panel or mesh roll .It can design according to your demand .
2.Technical parameter
ype | DP-DNW-1 | DP-DNW-2 | DP-DNW-3 | DP-DNW-4 |
Wire diameter | 0.4-0.65mm | 0.65-1.8mm | 1.0-2.2mm | 1.4-3mm |
Aperture/pitch | 6.35-12.7mm (1/4”-1/2”) | 12.7-101.6mm (1/2”-4”) | 25.4-101.6mm (1”-4”) | Min50mm |
Mesh width | 914.4mm; 1000mm | 1219.2mm;1524mm (4 feet; 5 feet) | 1219.2mm;1524mm;1828.8mm; 2133.6mm(4 feet; 5 feet; 6 feet; 7feet) | Max 2m |
Motor | 2.2kw | 2.2kw | 2.2kw;4.0kw | 4.0kw |
Welding speed | Max75 rows/min | Max120 rows/min | Max 80 rows/min | 45 times/min |
Measurement | 2.3*1.3*1.4m | 2.5*1.3*1.4m; 2.9*1.3*1.4m | 2.5*1.3*1.4m; 2.9*1.3*1.4m | 3.3*1.8*1.5m |
Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T | 3.5T |
Transformer capacity | 50kva*3 | 60kva*4; 60kva*5 | 60kva*4; 60kva*5; 60 kva*6; 60kva*7 | 60kva*5pcs |
3 Application
widely used in industry, agriculture, breeding, construction, transportation, mining, etc.
