Product Details
| Place of Origin: | Hebei, China | Brand Name: | JIAKE | Model Number: | CS-A B C |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic Hot-dipped Galvanized Steel Wires Twisted Barbed Wire Making Machines JIAKE Factory

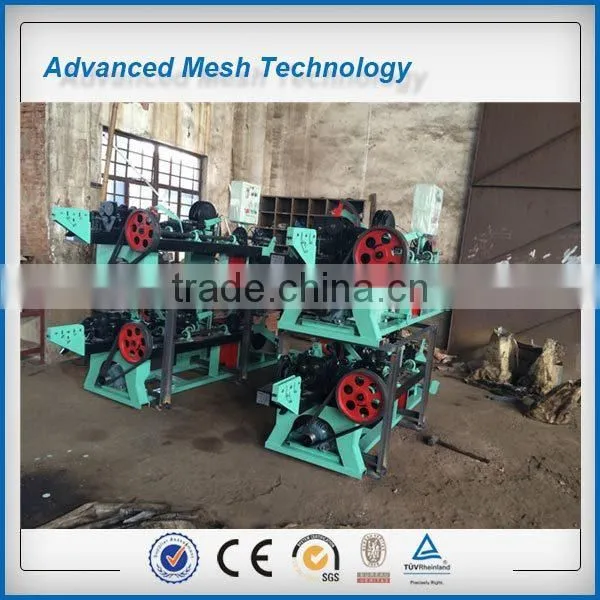

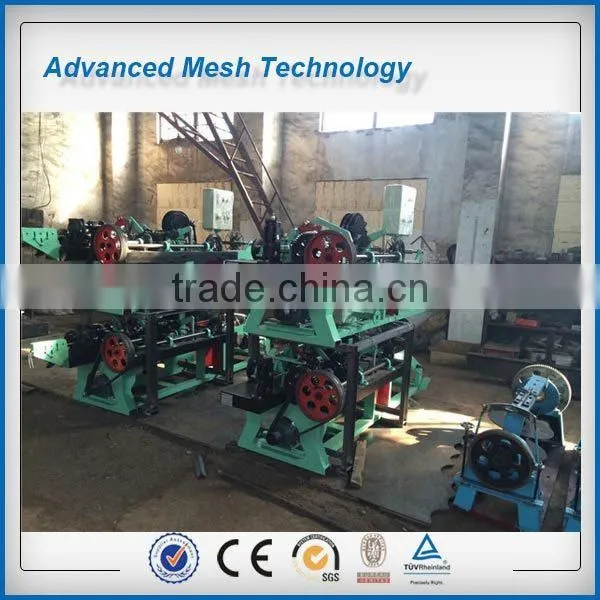

There are three types of barbed wire machines for your choice:
Type one CS-A type Barbed Wire Machine
| |

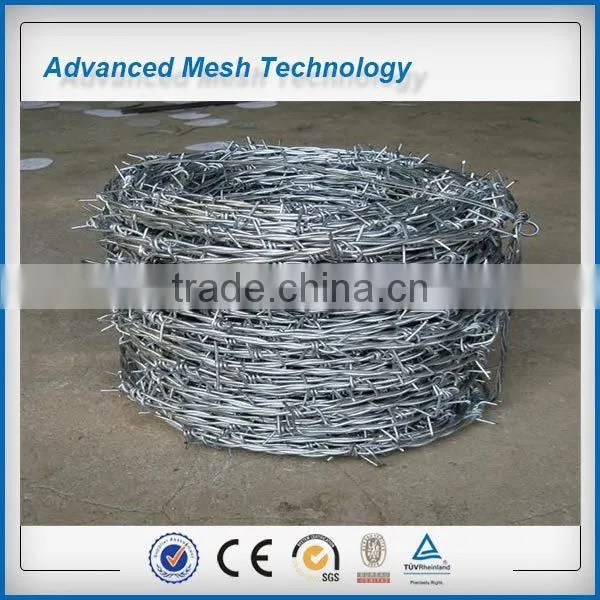

The materials used are general hot-dipped galvanized low carbon steel wire and plastic coated wire. The products are widely used in national defense, railway, highway, agriculture, animal husbandry and other industries.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 3 |
2 | Main drive shaft speed | r/min | 402 |
3 | Strand wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barb distance | Mm | 76(3”) 102(4”) 127(5”) |
6 | Twist number | Pcs | 3.5 |
7 | Theoretical output | Kg/h | 70 |
8 | Total weight | Kg | 1200 |
9 | Dimension of main part | mm | 1950*950*1300 |
10 | Dimension of take-twisting part | mm | 1760*550*760 |
Note: Special specification models can be customized according to customer requirements.
type two: CS-B type Single Strand Barbed Wire Machine
| |
The materials used are general hot-dipped galvanized low carbon steel wire and low-strength steel wire. Main feature: saving materials.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Strand wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barb distance | Mm | 102(4”) 127(5”) |
6 | Theoretical output | Kg/h | 40 |
7 | Total weight | Kg | 1000 |
8 | Dimension | mm | 3100*1000*1150 |
Note: Special specification models can be customized according to customer requirements.
Type three CS-C type Straight and Reverse Twisted Barbed Wire Machine
| |
The materials used are general hot-dipped galvanized low carbon steel wire and low-strength steel wire, using straight and reverse twist way for winded the twist. The barbed wire products has no rebound and winding phenomenon, so it is more beautiful compared with ordinary barbed wire.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Strand wire diameter | mm | 1.6-2.8 |
4 | Barbed wire diameter | mm | 1.6-2.2 |
5 | Barb distance | Mm | 102(4”) 127(5”) |
6 | Twist number | Pcs | 7 |
7 | Theoretical output | Kg/h | 40 |
8 | Total weight | Kg | 1000 |
9 | Dimension | mm | 3000*1000*1150 |
Note: Special specification models can be customized according to customer requirements.
