Specifications
Chicken poultry cage mesh welding machine1.Specially for poultry cages mesh making
2.For bottom cage mesh and top cage mesh
Chicken layer cage mesh welding machine

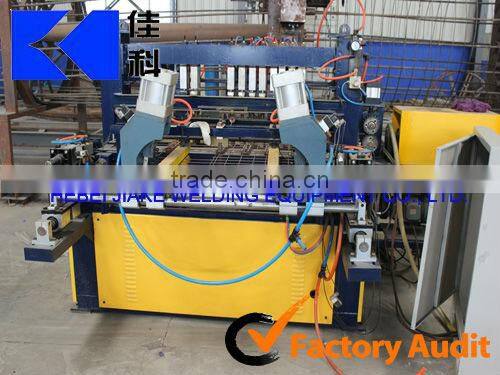

Poultry Cage Mesh Welding Machine for bottom mesh
1. The machine adopts electrical&electronic sychronous technique, both separate-phase welding and welding time is composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded spots and without welded tracks.
3. The machine eauips with precise equipment for weft cutting and position, so the length of wefts is identical and regular, it is uncessary to slice the side.
4. Mesh pulling system adopts elastic tension link and opening positioning mesh, it is easy to regulate the mesh hole and mesh opening size is rather accurate.
5. Welding aperture can adjust randomly within range.
Not only welding speed is fast but also it is easy to learn and operate. The machine only need one worker to finish the operation.
Chicken cage making machine
Wire Diameter | 1.8-3mm | Width of Mesh | 1200mm |
Longitude Wire Space | 50-200mm | Cross Wire Space | 25-200mm |
Welding Electrodes | 16 pcs | Welding Speed | 60 times/min |
Longitude Wire Feeding | From Wire Coils | Cross Wire Feeding | Dia.1.8-2.5mm From wire Coils; Dia.2.6-3.0mm Should be Pre-Cut |
Rated Electrical Power | 60kva*2 pcs | Rated Voltage | 3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size | 2.5*2.1*1.4m | Weight | 2500kg |
Poultry Cage Mesh Welding Machine for top mesh
Chicken cage making machine
Wire Diameter | 1.8-3mm | Width of Mesh | 1000mm |
Longitude Wire Space | 50-200mm | Cross Wire Space | 25-200mm |
Welding Electrodes | 12 pcs | Welding Speed | 60 times/min |
Longitude Wire Feeding | From Wire Coils | Cross Wire Feeding | Dia.1.8-2.5mm From wire Coils; Dia.2.6-3.0mm Should be Pre-Cut |
Rated Electrical Power | 60kva*2 pcs | Rated Voltage | 3-phase,380V/220V/415V/440V 50Hz or 60Hz |

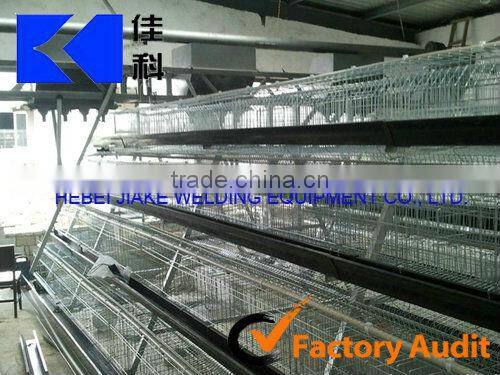

Chicken cage
We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine, chain link fence machine, hexagonal wire netting machine, gabion mesh machine, stone mesh machine, expanded metal mesh machine, barbed wire machine, razor barbed wire machine and so on, please do not hesitate to contact us.
