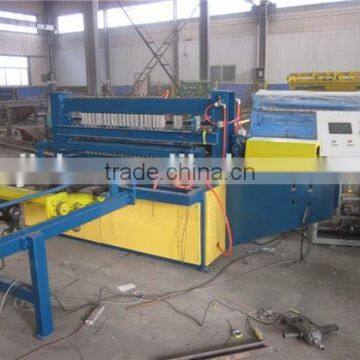

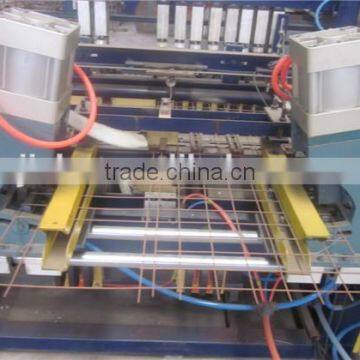

bird cage mesh welding machine(ANPING JIAKE FACTORY)
A.Product Model:Breeding Mesh Welding Machine
B.Function feature:
1. Adopts electrical & electronic synchronous control technique, both separate-phase welding and welding time composed of digital and integrated electric circuit, high precision, stable performance, solid welding joint and no burn marks.
2. Weft is pre-straightened and pre-cut, fed from hopper. The hopper is driven by stepper motor, accurately auto-feeding wire.
3. The warp is fed from coil. The mesh edge is regular, unnecessary to slice.
4. Mesh pulling system adopts elastic tension link and opening positioning equipment, the opening is easy to regulate accurately and can be adjusted freely within a certain range.
5. The finished products can be in coil or in panel.
6. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
C.Main parameter:
Wire diameter |
2.2-2.8mm |
Warp form |
continuous |
Weft spacing |
≥24mm |
Weft form |
Pre-cut wire |
Warp spacing |
≥25mm |
Rated voltage |
380V |
Width |
1200mm |
Rated power |
63KVA×2 |
Welding speed |
45times/min |
Dimension |
1800×2500×1800mm |
Welding spots |
16 |
Weight |
3.2T |
D.Products & Application:
Chicken cage, rabbit cage, mink cage, fox cage, pet cage and other breeding cages.
1. Reinforcing Mesh Welding Machines
|
wire diameter: 5-12mm mesh width: max2.5m wire spacing: 100-300mm mesh length: max12m welding speed: 30-60 cross wires/min |
|
|
2. Fence Mesh Welding Machines
|
wire diameter:3-6mm mesh width:max 2.5m wire spacing:50-200mm welding speed: 45-75 cross wires/min |
|
|
3. Concrete Reinforcing Mesh Welding Machines
|
wire diameter:3-8mm mesh width: max2.5m wire spacing 100-300mm welding speed:45-75 cross wires/min |
|
|
4.Poultry Cage Mesh Welding Machines
|
wire diameter 1.8-3.5mm mesh width:1.2m wire spacing: 50-200mm welding speed:60-90cross wires/min |
|
|
5. Electric Welded Mesh Machines
|
wire diameter:0.45-0.85mm wire diameter:0.6-1.3mm wire diameter:0.8-1.6mm wire diameter:1.4-2.7mm mesh width: as required wire spacing: as required |
|
|
Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1.Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2.Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.
Tell us your need, we will surprise you with best price, best quality and best service!
Note: We can also customize the machine based on our customers' special requirements.
We can customize the machine, please tell us your needs.
