Specifications
width:1200mmwire spacing:50-200mm
mechanical and pneumonia type
end products: seed bed, floor warm mesh, building roof mesh

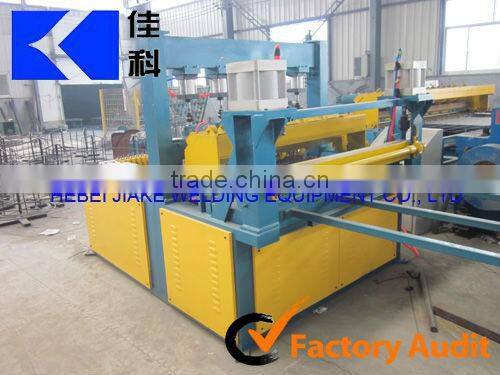

Main Features of Wire Mesh Welding Machines:
1.The Welding Machine welds the horizontal and vertical wires to form a steel wire mesh. Mesh Width: 1200mm, Grid size: 50 x 50mm or 50 x 100mm;
2. PLC control system to automatically straightens, welds and cuts the steel wire;
3. The A type machine has the mechanical transmission system;
4. The B type machine makes use of the integrated pneumatic system to ensure that the operation is stable, high reliability and long life span of the equipment.
5. The horizontal steel wires use the integrated straightening and cutting system to ensure stable operation and high accuracy;
6. The Automatic Alarm Device is easy to operate and maintenance;
7. Will automatically cut the steel wire mesh according the pre-set mesh length.
A type
technical data:
JK-120A-1 | JK-120A-2 | JK-120A-3 | |
Input power | 380V 50Hz | 380V 50Hz | 380V 50Hz |
Max. width | 1200mm | 1200mm | 1000mm |
Line wire space | 50-200mm | 50-200mm | 100-200mm |
Cross wire space | 50-200mm | 50-200mm | 50-200mm |
Wire diameter | 1.4-2.5mm | 1.4-2.5mm | 1.4-2.0mm |
Rated capacity | 56kva*3 | 56kva*2 | 56kva*1 |
Welding point No. | 25 | 25 | 11 |
Motor power | 2.2KW | 2.2KW | 2.2KW |
Feed line wire | Coil wire | Coil wire | Coil wire |
Feed cross wire | Coil wire | Coil wire | Coil wire |
Cutting mesh | Automatic & Manual | Automatic & Manual | Automatic & Manual |
Welding speed | 45 times/min | 45 times/min | 45 times/min |
Weight | 2500kg | 2000kg | 1700kg |
Dimension(L*W*H) | 2500*1800*1400mm | 2500*1800*1400mm | 2500*1800*1400mm |
B type one
technical data:
JK-120P-1 | JK-120P-2 | |
Input power | 380V 50Hz | 380V 50Hz |
Max. width | 1200mm | 1200mm |
Line wire space | 50-200mm | 50-200mm |
Cross wire space | 50-200mm | 50-200mm |
Line wire diameter | 2.0-3.0mm | 3.0-4.0mm |
Cross wire diameter | 2.0-3.0mm | 3.0-4.0mm |
Rated capacity | 75kva*3 | 85kva*3 |
Welding point No. | 25 | 25 |
Feed line wire | Coil wire | Coil wire |
Feed cross wire | Coil wire | Pre-cut wire |
Cutting mesh | Automatic | Automatic |
Welding speed | 25 times/min | 25 times/min |
Weight | 2000kg | 2300kg |
Dimension(L*W*H) | 2500*2100*1400mm | 2100*2100*1500mm |
end products:
We can customize the machine, please tell us your needs.
Contact: Daisy Lee
Hebei Jiake Welding Equipment Co.,Ltd
Mobile: :+86-318-15324391556
Fax:+86-0318-7565522
Skype:qq1815361000
