anti rust light steel structure

Specifications

anti rust light steel structure is low cost
high strength, durable
easy to assemble and disassemble
fire proof

Detailed specification of anti rust light steel structure:

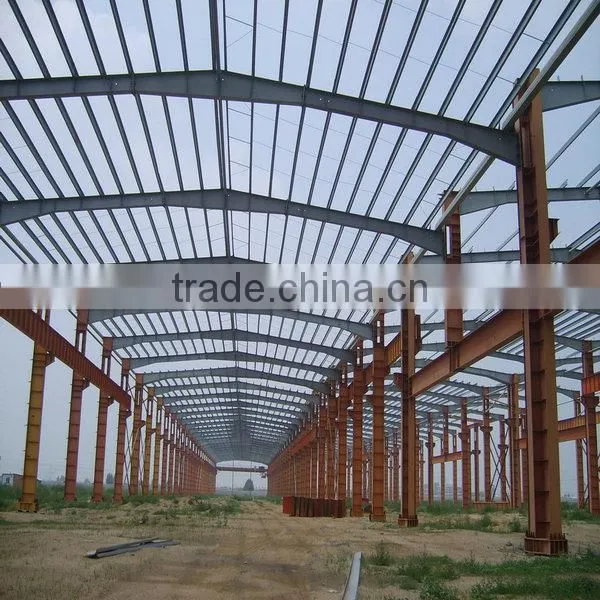

1. The main frame (columns and beams) is made of welded H-style steel or hot rolled steel H section. steel materials: Q345 & Q235;

2. The columns are connected with the foundation by pre-embedding anchor bolt.

3. The beams and columns, beams and beams are connected with high strength  bolts.

4. The envelop construction net is made of cold form C-style purlins.

5. Bracing System: Square Hollow Section and Circular Hollow Section;

6. Surface Treatment: Rust-proof Painting with 2-4 Layers;

7. Span: The max span is 50m between supporting bases.
8. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails. Also we can use rock wool, glass wool, EPS sandwich panels.

9. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type .

10.packing :main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ





Advantages of the product:



1).Large span for great strength with light deadweight;
2).Short finishing time and low cost;
3).Fire proof and rust proof;
4).Convenient to assemble or disassemble.



Specification:

Design Data	load on roof(KN/M2)   d speed(KM/H)   3.snow load (KG/M2) if have 4.earthquake load if have    5.crane (if have), lift height, lift capacity,
Size	1.width 2.length 3.eave height  4.roof slope
Type	1.single slope OR double slope        2.muti slope OR single span 3.double-span OR Multi-span         4.single floor OR two floors
Intercolumn	5m, or 6m….
Windows &Door	1.quantity    2.size   3.Location 4.PVC or aluminum
Column &Beam	straight cross-section OR Variable cross-section
Roof & Wall Panel	lorfull corrugated steel sheet   0.326~0.8mm thick ,YX28-205-820(820mm wide), 2.sandwich panel with EPS,ROCK WOOL,PU etc, insulation thickness around 30 ~300mm, 3.sheet+glass fiber(thick 50mm~200mm)
Purlin	1.C purlin size:120~C320,Z 2.purlin size100~Z200
Accessories	Do you need the skylight belts, Ventilators,down pipe, out gutter etc?
Surface Treatment	Shot blasting with anti rust paint or hot dip galvanize
