Specifications
steel structure warehouse1.Strictly quality control
2.Small quantity acceptable
3.Competitive price
We can supply all kind of prefabricated house, steel structure building for living room, shed, warehouse,workshop, plant,hangar,farm building,chicken house,poultry house, broiler house ,chicken shed , carport, shelter, garage,storage,barn,and also their components, the full range of metal building materials.
We owns a strength capacity, principle of credit, honesty ,high level product quality; based on multi-species operating characteristics and small profits, that bring the trust from worldwide clients.

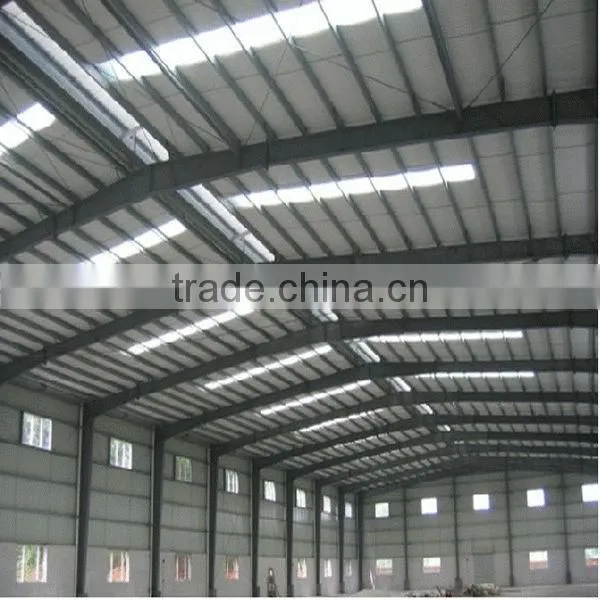

1. Steel structure warehouse :
2. If you want to buy a steel structure building, please answer the questions in the following sheet carefully.
esign Data |
load on roof(KN/M2) d speed(KM/H) 3.snow load (KG/M2) if have 5.crane (if have), lift height, lift capacity, |
Size |
1.width 2.length 3.eave height 4.roof slope |
Type |
1.single slope OR double slope 2.muti slope OR single span 4.single floor OR two floors |
Windows &Door |
1.quantity 2.size 3.Location 4.PVC or aluminum |
Column &Beam |
straight cross-section OR Variable cross-section |
Roof & Wall Panel |
lorfull corrugated steel sheet 0.326~0.8mm thick ,YX28-205-820(820mm wide), |
Purlin |
1.C purlin size:120~C320,Z 2.purlin size100~Z200 |
Accessories |
Do you need the skylight belts, Ventilators,down pipe, out gutter etc? |
Surface Treatment |
Shot blasting with anti rust paint or hot dip galvanize |
3. Materials
Main frame made from steel structures, connction by high strength bolts, surface with anti rust paint or galvanized.
Roof and wall materials will choose single color steel sheet or sandwich panel(EPS, PUR, GLASSWOOL, ROCKWOOL), depend on the environment and insulation requirement as well as the buyer's requirement.
(1)EPS sandwich panel
Thickness: |
50mm, 75mm, 100mm, 150mm |
Material of the panels |
composed of colorful steel sheets and EPS |
Unit Weight of Core Material |
8-16 kg/cbm |
Width of the panels |
950mm for wall and 960mm for roof |
Panels type |
Wall panel and Roof panel |
Surface Texture and Appearance |
Small wave, Flat, Embossment, Big rib |
Heat Insulating Material |
EPS (Polystyrene) |
Thickness of steel sheet |
0.4-0.8mm |
Color of the coating |
White grey, Sea Blue, Red, etc |
Type of sheet Coating |
PVDF, HDP, SMP, PE |
Type of Base steel sheet |
Hot-dip galvanized, Al-Zn coated |
PU sandwich panel
rock wool sandwich panel
EPS sandwhich panel
(2)corrugated sheet
single colorful corrugated steel sheet0.326~0.6mm thick ,YX26-205-820(820mm wide),
single colorful corrugated steel sheet0.326~0.6mm thick ,YX15-225-900(900mm wide),
single colorful corrugated steel sheet0.326~0.6mm thick ,YX35-125-750(750mm wide),
single colorful corrugated steel sheet0.376~0.6mm thick ,YX51-380-760(760mm wide),
single colorful corrugated steel sheet0.376~0.6mm
thick ,YX51-470(470mm wide),
(3) C purlin size from C100~C320,Z160~Z300
4. Under and finished installaion.
main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ
