light steel structure warehouse Detailed specification :

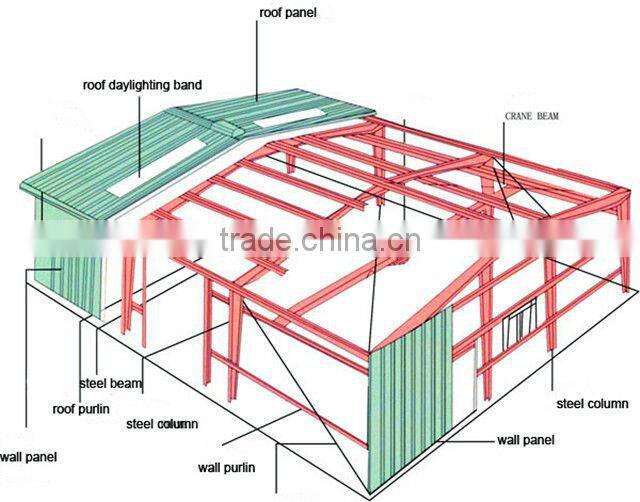

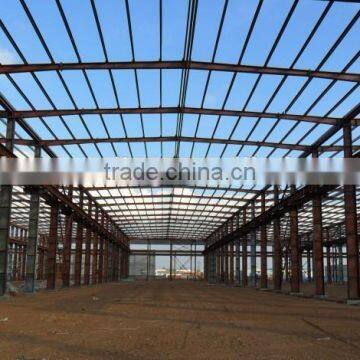

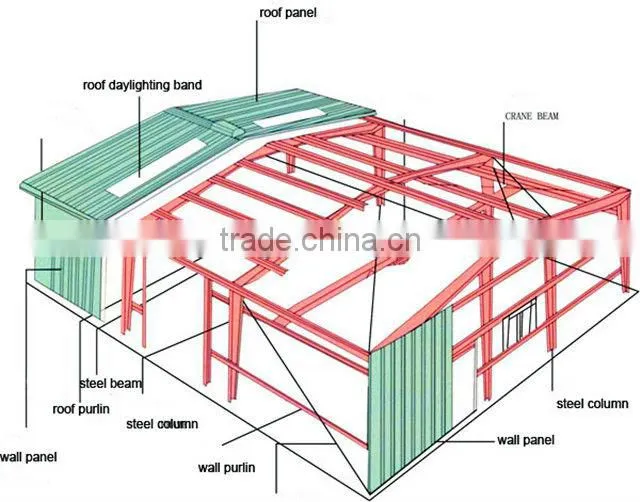

1. The main frame (columns and beams) is made of welded H-style steel or hot rolled steel H section. steel materials: Q345 & Q235;
2. The columns are connected with the foundation by pre-embedding anchor bolt.

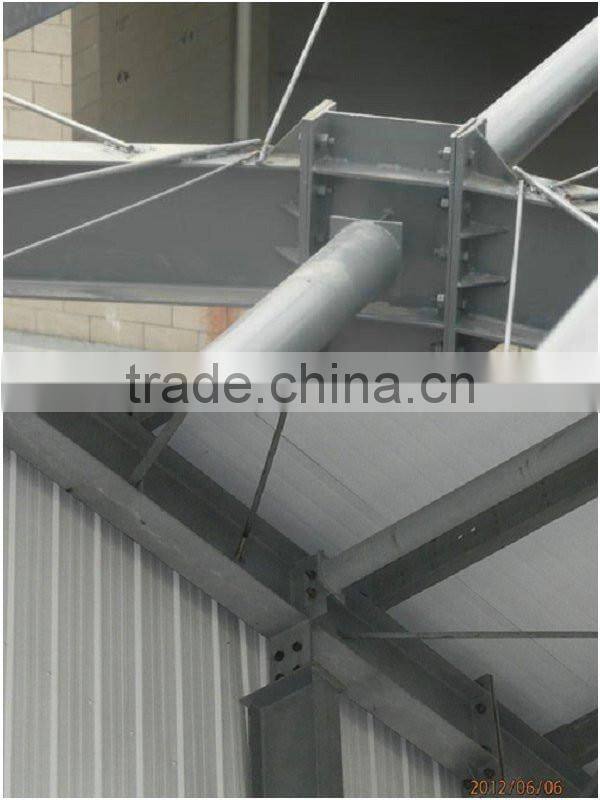

3. The beams and columns, beams and beams are connected with high strength bolts.
4. The envelop construction net is made of cold form C-style purlins.

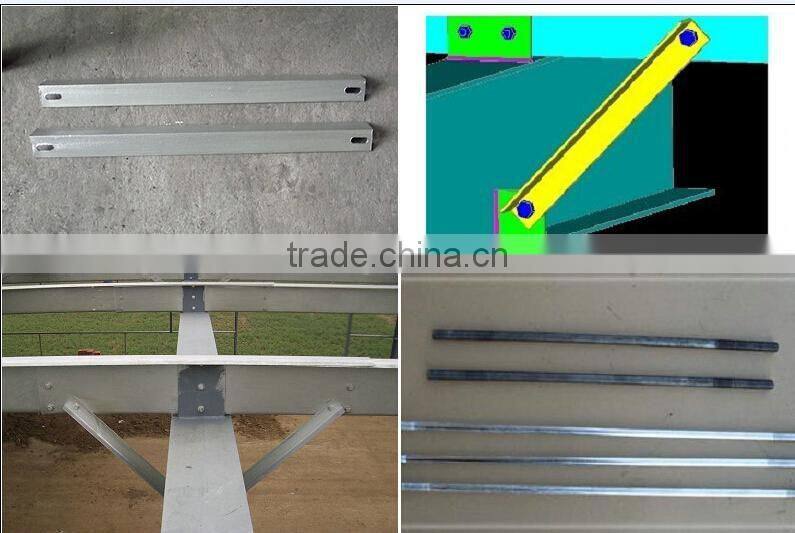

5. Bracing System: Square Hollow Section and Circular Hollow Section;
6. Surface Treatment: Rust-proof Painting with 2-4 Layers;
7. Span: The max span is 50m between supporting bases.
8. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails. Also we can use rock wool, glass wool, EPS sandwich panels.
9. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type .
10.packing :main steel frame without packing load in 40'OT,roof and wall panel load in 40'HQ
Advantages of the product:
1).Large span for great strength with light deadweight;
2).Short finishing time and low cost;
3).Fire proof and rust proof;
4).Convenient to assemble or disassemble.
Specification:
|
Design Data |
load on roof(KN/M2) d speed(KM/H) 3.snow load (KG/M2) if have 5.crane (if have), lift height, lift capacity, |
Size |
1.width 2.length 3.eave height 4.roof slope |
Type |
1.single slope OR double slope 2.muti slope OR single span 4.single floor OR two floors |
Intercolumn |
5m, or 6m…. |
Windows &Door |
1.quantity 2.size 3.Location 4.PVC or aluminum |
Column &Beam |
straight cross-section OR Variable cross-section |
Roof & Wall Panel |
lorfull corrugated steel sheet 0.326~0.8mm thick ,YX28-205-820(820mm wide), |
Purlin |
1.C purlin size:120~C320,Z 2.purlin size100~Z200 |
Accessories |
Do you need the skylight belts, Ventilators,down pipe, out gutter etc? |
Surface Treatment |
Shot blasting with anti rust paint or hot dip galvanize |
Professional design and manufacture warehouse light steel structure
1) Simple steel structure warehouse | ||
Main structure |
Single span shorter than 18m,lower than 6m |
|
Maintance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
Wall |
Colored steel sheet |
|
Door |
Simple steel rolling shutter(within 10m2) |
|
Window |
Very few |
|
Usage |
Warehouse,workshop |
|
Standard and suitable market |
Africa,mid-east,south america(no snow,wind load below 0.4kn/m2) |
|
| ||
(2) Standard steel structure warehouse | ||
Main structure |
Single span shorter than 24m,lower than 8m |
|
Maintance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
Wall |
Colored steel sheet or 50mm EPS sandwich board |
|
Door |
Wind resistance rolling door(within 15m2) |
|
Window |
Alu.alloy(can with skylight) |
|
Usage |
Warehouse,workshop,shopping mall,exhibition,supper market |
|
Standard and suitable market |
Snow loading below 0.5kn,wind loading below 0.5kn/m2 |
|
| ||
(3) Cold region(heavy snow)steel structure warehouse | ||
Main structure |
Single span shorter than 18m,lower than 6m |
|
Maintance system |
Roof |
EPS/rock wool/PU sandwich board |
Wall |
EPS/rock wool/PU sandwich board |
|
Door |
PU foamed rolling door |
|
Window |
Alu.alloy, Hollow glass |
|
Usage |
Warehouse,workshop,shopping mall,exhibition hall,supper market |
|
Standard and suitable market |
Cold region such as Norway,Russian,North Canada, Finland, Icelan Greenland, Sweden,etc.(snow loading below 3kn,wind load below 1KN/M2) |
|
| ||
(4)Steel structure warehouse with crane(5T,10T,20T) | ||
Main structure |
Single span shorter than 20m,lower than 10m |
|
Maintance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
Wall |
Colored steel sheet or sandwich board |
|
Door |
Wind resistance rolling door(within 15m2) |
|
Window |
Alu.alloy(can with skylight) |
|
Usage |
Warehouse,workshop |
|
Standard and suitable market |
Snow 0.5kn,wind load below 0.5kn/m2 |
|
