Professional design factory steel structure/prefabricated facrory building/steel structure workshop building

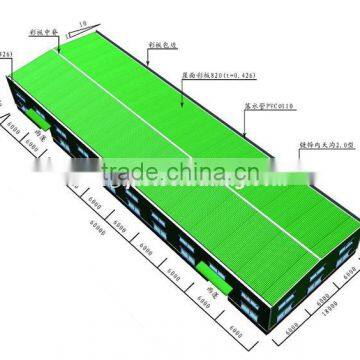

Size

Length* Width* Height

209.8m*79.8m*8m

Main

components

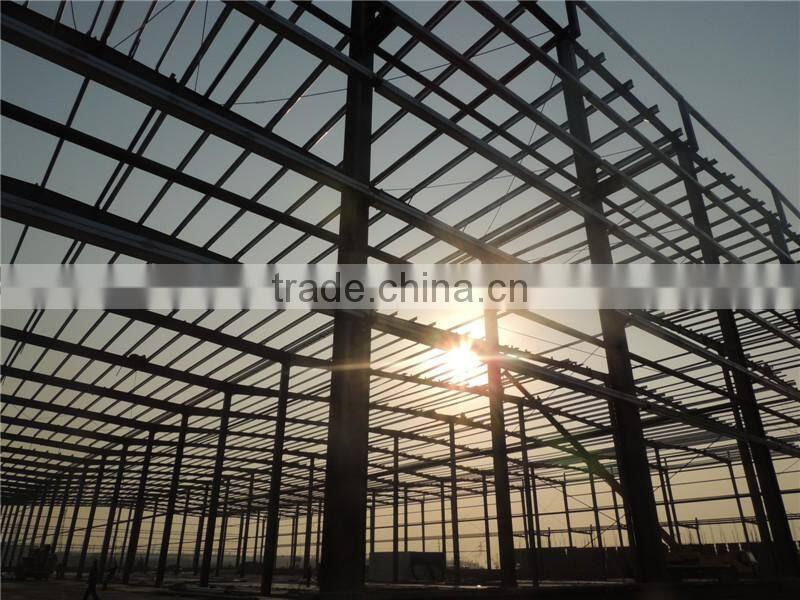

Primary Steel Structure

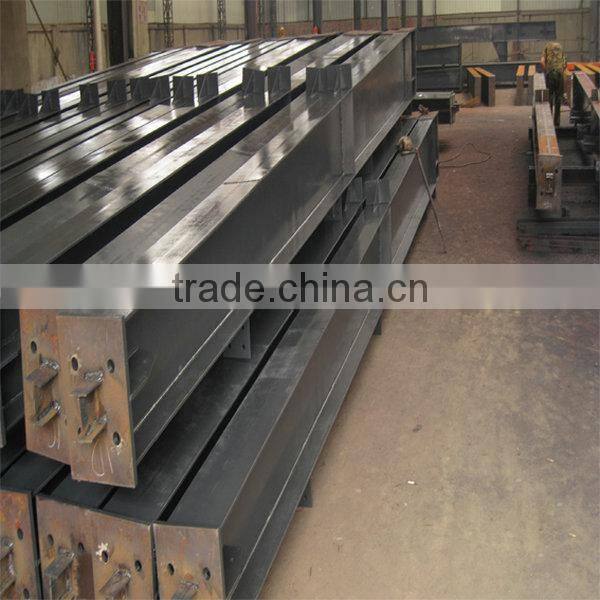

Column and Beam

Welded H section steel with primer and facing anti-rusting painting

Secondary Framing Purlin

Galvanized Z Purlin

Brace

 Round steel is supplied with knee bracing and other supporting parts

Roof Cladding

 0.6mm Steel Sheet+Glasswool Blanket with Aluminium-foil paper+Wire mesh

Wall Cladding

0.5mm Corrugated Steel Sheet in White

Door

Rolling Shutters with steel canopy

Window

Aluminium alloy Window+ Tinted Glass

 Lighting System

Skylight Panel

We can make quotation according to customer's drawing or requirement;  (size by length/width/height and wind speed), offering a free design  drawing and all detailed drawings for installation.

No

Conditions

Pictures

1

  All of the steel structure columns and the beams ends will be packed by the blanket to protect them from the collision during the shipping in the container.

2

Packed the purlins, in bundles and lift them with the crane into the containers.

3

All of the sandwich panel are packed by human to avoid the collision. Every level we will use the blanket to protect them.

4

All of the other materials, such as the windows, the covers, the doors are be carefully covered with the plastic foam for protection.
