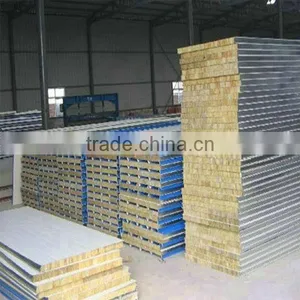

rockwool sandwich panel prepainted steel sheet

Specifications

1. rock wool sandwich panel
2. Insulative & Acoustic
3. Waterproof & Airtight
4. Durable
5. Best Quality & Service

rock wool sandwich panel

1. Effective width: 950/1150mm

2.Thickness for rockwool: 50-150mm, normal size is: 50/75/100mm

3.Thickness for steel sheet: 0.3-0.8mm (double faces)

4. Length: according to your request, less than 12000mm suitable for the transport

5. Rockwool density: 100-150kg/m3

6. Character:

1). Fireproof, heat insulation, water resistant, noise-absorbing, cheap in price.

2). Fire resistance rating: Grade A





Specification:

Effective width	Wall panel: 950mm 1150mm Roof panel: 950mm
Length	According to customer's request
Materials	Rock wool, Color steel sheet
Structure	Upper and lower layer: Color steel sheet
	Middle: Rock wool
Thickness	Color steel sheet: 0.3-0.8mm rock wool: 50mm 75mm 100mm 150mm 200mm
The Density of Rock Wool	100kg/m3 -150kg/m3
Conventional color	Ocean blue, whitegrey, etc
Character	Fireproof, heat insulation, green and environmental
Use	various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc.





Rock wool insulation performance



Density	Thickness	Width	Thermal Conductivity-K	Thermal Resistance-R
Kg/m3	mm	m	W/m.K	m2.K/W
60	50	1.2	0.044	1.14
60	75	1.2	0.044	1.71
60	100	1.2	0.044	2.27
80	50	1.2	0.044	1.14
80	75	1.2	0.044	1.71
80	100	1.2	0.044	2.27
100	50	1.2	0.043	1.16
100	75	1.2	0.043	1.74
100	100	1.2	0.043	2.33
120	50	1.2	0.043	1.16
120	75	1.2	0.043	1.74
120	100	1.2	0.043	2.33









The advantages of products :

1, section dimension precision is high using high-quality hot-rolled coil plate after welding section, the accuracy is fine, more convenient to assemble structure.

2, section excellent performance

Flange plate thickness and webs of aleatoric combination, than with rolling steel in weight, compared to the same conditions, can be made more big, section flexural performance of structures; higher performance In section performance diam-eter, components lighter.

3  the sectional dimension user requirements can be customized



Remarks:special sizes and density may be made according to customers' requirements.
