Help CenterGood Price 100mm Rockwool Sandwich Wall and Roof Panel From Factory
Related Products
-
pu Steel Sandwich Wall PanelUS$ 18 - 48MOQ: 600 Square Meters -
Steel Eps Sandwich PanelUS$ 5 - 20MOQ: 600 Square Meters
-
Sandwich Panel pu FoamUS$ 18 - 48MOQ: 600 Square Meters
-
Insulated Roof PanelsUS$ 5 - 20MOQ: 600 Square Meters
-
ISO Certificate Colorful Rock Wool Sandwich PanelUS$ 7 - 30MOQ: 600 Square Meters
Specifications
1. rock wool sandwich panel2. Insulative & Acoustic
3. Waterproof & Airtight
4. Durable
5. Best Quality & Service

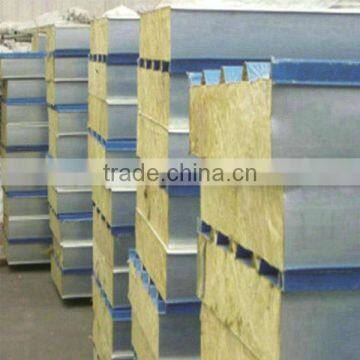

rock wool sandwich panel
1. Effective width: 950/1150mm
2.Thickness for rockwool: 50-150mm, normal size is: 50/75/100mm
3.Thickness for steel sheet: 0.3-0.8mm (double faces)
4. Length: according to your request, less than 12000mm suitable for the transport
5. Rockwool density: 100-150kg/m3
6. Character:
1). Fireproof, heat insulation, water resistant, noise-absorbing, cheap in price.
2). Fire resistance rating: Grade A
Specification:
| Effective width | Wall panel: 950mm 1150mm Roof panel: 950mm |
| Length | According to customer's request |
| Materials | Rock wool, Color steel sheet |
| Structure | Upper and lower layer: Color steel sheet |
| Middle: Rock wool | |
| Thickness | Color steel sheet: 0.3-0.8mm rock wool: 50mm 75mm 100mm 150mm 200mm |
| The Density of Rock Wool | 100kg/m3 -150kg/m3 |
| Conventional color | Ocean blue, whitegrey, etc |
| Character | Fireproof, heat insulation, green and environmental |
| Use | various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc. |
Rock wool insulation performance
| Density | Thickness | Width | Thermal Conductivity-K | Thermal Resistance-R |
| Kg/m3 | mm | m | W/m.K | m2.K/W |
| 60 | 50 | 1.2 | 0.044 | 1.14 |
| 60 | 75 | 1.2 | 0.044 | 1.71 |
| 60 | 100 | 1.2 | 0.044 | 2.27 |
| 80 | 50 | 1.2 | 0.044 | 1.14 |
| 80 | 75 | 1.2 | 0.044 | 1.71 |
| 80 | 100 | 1.2 | 0.044 | 2.27 |
| 100 | 50 | 1.2 | 0.043 | 1.16 |
| 100 | 75 | 1.2 | 0.043 | 1.74 |
| 100 | 100 | 1.2 | 0.043 | 2.33 |
| 120 | 50 | 1.2 | 0.043 | 1.16 |
| 120 | 75 | 1.2 | 0.043 | 1.74 |
| 120 | 100 | 1.2 | 0.043 | 2.33 |
The advantages of products :
1, section dimension precision is high using high-quality hot-rolled coil plate after welding section, the accuracy is fine, more convenient to assemble structure.
2, section excellent performance
Flange plate thickness and webs of aleatoric combination, than with rolling steel in weight, compared to the same conditions, can be made more big, section flexural performance of structures; higher performance In section performance diam-eter, components lighter.
3 the sectional dimension user requirements can be customized
Remarks:special sizes and density may be made according to customers' requirements.
