Specifications
1)Easy installation(2)High strength
(3)Low in costs
(4)Durable
(5)Nice appearance

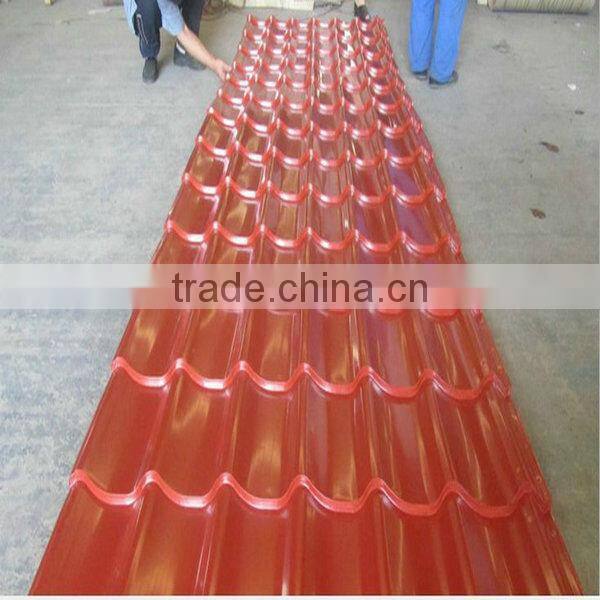

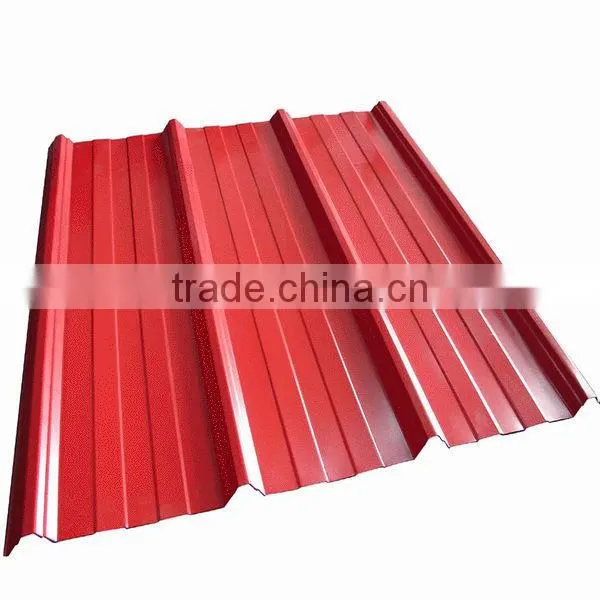

color metal roof sheet (also called pre painted corrugated steel sheet) is made from Pre-painted/Galvanized Steel Sheet/coil, it is a popular metal roofing material for both industrial and civil constructions
1 Raw materials
(1)Hot dipped galvanized steel sheet
(2)Pre galvanized steel sheet
(3)Galvalume steel sheet
(4)Pre painted galvalume steel sheet
2 Colors
Normal: Ocean blue (RAL5002); Grey white (RAL 9002)
Popular: Bright red
Special: Any other colors you request
3 Specification
Thickness: 0.2mm-0.7mm, min: 0.16mm; max: 1.5mm
Rib height: 25mm
Wave span:Depend on model you chose
Wave no.:Depend on model you chose
Effective Width: 320mm-1025mm
Length: No longer than 11800mm
4 Usage
(1)Roof
(2)Wall
(3)Ceiling
(4)Fence
5 Applications
(1) Gymnasium
(2) Warehouse
(3) Hospital
(4) Supermarket
(5) Shelter,
(6) Commercial facilities
(7) Industrial facilities
6 Available models | |||
YX8-130-910 |
YX10-112.5-900 |
YX10-110-880 |
YX14-65-850 |
YX15-140-840 |
YX16-225-900 |
YX16-80-850 |
YX18-63.5-825 |
YX25-210-840(SHEET) |
YX25-210-840(TILE) |
YX25-215-860 |
YX25-85-765 |
YX26-205-820 |
YX26-205-1025 |
YX28-150-750 |
YX28-150-900 |
YX28-280-840 |
YX32-130-780 |
YX35-125-750 |
HV51-380-760 |
HV51-410-820 |
HV66-394-788 |
YX130-300-600 |
As your design |
7 standard and certificate of insulated roof sheet | |||
(1) standard |
GB/T 12755-2008 |
||
8 Necessary information you shall advice for question | |||
Information you shall advice |
The default option |
||
(1) |
Model |
Above mentioned |
|
(2) |
Thickness |
0.3mm |
|
(3) |
Paint |
PE |
|
(4) |
Color |
Sea blue; grey white;red |
|
(6) |
Max length |
5800mm |
|
(7) |
Order quantity |
one full 20GP |
|
(8) |
Packing |
Normal as mentioned |
|
