Help CenterSilicon Nipple Mold Making/injection Mould Makers/injection Mould Manufacturer
Related Products
-
Silicone Necklace Mould Making/mold/mould/injection Molding ProductsUS$ 500 - 5,000MOQ: 1 Set -
Silicon Necklace Mold Making/injection Mould Makers/injection Mould ManufacturerUS$ 500 - 5,000MOQ: 1 Set
-
Silicone Bangle Mould Making/mold/mould/injection Molding ProductsUS$ 500 - 5,000MOQ: 1 Set
-
Silicone Necklace Mold Making/Silicone Products Mold MakingUS$ 500 - 5,000MOQ: 1 Set
-
Silicone Pendant Mould Making/mold/mould/injection Molding ProductsUS$ 500 - 5,000MOQ: 1 Set
Specifications
1.Silicon nipple mold making2.Material:S136,P20
3.Tolerance 0.002mm
4.Market:Europe, America, Australia
5.OEM&ODM

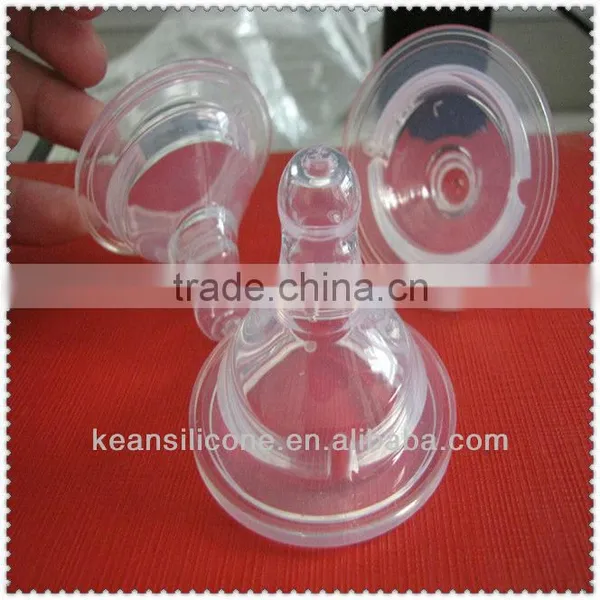

Silicon nipple mold making
Capacity ( Monthly )
Small Mold - 24 units(Width 200mm to 400mm)
Medium Mold - 12 units(Width 400mm to 600mm)
L/XL Mold - 5 units (Width 600mm to 1600mm)
Average 41 Mold per month of S, M and L size Mold.
Capable of handling up to 50 ton or fit to a 380 ton injection machine.
Unigraphics NX : - UG
Type of Molds
Capable of handling a complete program management and Mold matching based on final parts assembly specifications
. Single / Multi-cavitation Molds
. Precision Molds
. Insert Molds
. Double injection Molds
. Gas- assisted Molds
Using various type of auxiliary accessories such as Hot- runner system, insert molding
We can produce a series of Mold and Injection products. From Mold to Injection Parts. Including Plastic Injection Mold and Aluminum&Zinc Die casting Mold.
All range from Plastic Parts,Plastic Household Parts,Plastic Auto Parts,Plastic Electronic Parts,Precision Plastic Gear Parts,Double Color Injection Parts and so on.
We have injection machine from 50ton to 380ton, we can provide customers from molding, injection, silk screen to the assembly of chain services.
Special material:PSU,PEEK,ULTEMNylon+Carbon Nylon+Glass filter and so on;
PLASTIC INJECTION Mould standard | HASCO,DME,MEUSBURGER,JIS,CHINA LKM Standard |
Mould base | LKM&Hasco&DME standard (A,B plate 1730,2311,2312,P20 ) |
Material main core and cavity insert | DIN2312,2738,2344,718,S136,8407,NAK80,SKD61,H13 |
Hardness of steel | 46~56HRC |
Material for Slider ,Lifter and all sub insert use | 1.2767 HRC |
Cavity | Single-cavity ,Multi-cavity |
A surface request: | EDM & High Polish |
Gate | Cold runner,Yudo/DME/HASCO/Synventive Hot runner |
Maximum mould size | 1500*1500 mm |
Mould life time | 500000~+1,000,000 shots |
Quality | ISO9001-2008 certification |
Product material | PA,PA6/6+GF,ABS,POM,PC,PP,PET,TPE,PVC,HDPE etc |
Lead time | 4~7 Weeks |
Package | Wooden/Plywood case for tool ,PE bags add export carton for parts |
Payment terms | T/T |
Trade terms | FOB XIAMEN ,EXW ,CIF |
Export country | Europe countries,USA,Mexico,Australia ,Middle-east ,Asia etc |
Value-added service | Polish,texture,painting,screen printing,turnkey project |
Step
1. R&D | We do or customer offer & improve designs |
↓ |
|
2. Negotiation | Material ,price, delivery time, payment,quality |
↓ |
|
3. Place order | In accordance with our design or your suggestion |
↓ |
|
4. Mould | We prefer to send design to our customer for confirmation before production. After confirmed, then we will put it into production totally the same as customers’ demand. |
↓ |
|
5.Sample shoot | If the mould we produce can’t match what customer need, we will amend our design and put it into production until satisfy customer’s demand |
↓ |
|
6.Products in store | When the quantity exceed our storage limit, we will do the delivery |
↓ |
|
7. Delivery | Delivery goods by sea or air, according to the contract. |
