Specifications
steel bar meshReinforcing mesh
2>diameter :3.35-12mm
3>materials : low carbon steel wire
4>Australian standard

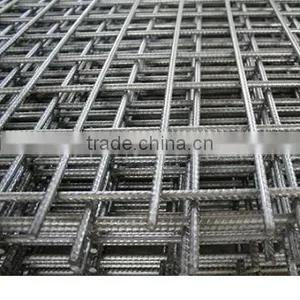

steel bar mesh
Standard Sizes
Reinforcing mesh is available in rolls (60m x 2,4m) and sheets (6m x 2,4m), manufactured according to standard sizes.
Wire diameters vary from 3,55mm to 12mm. Mesh aperture can be as small as 100mm x 100mm.
Special Mesh
Specialised machinery is used to produce weldmesh with non-standard aperture sizes. The spacing of wires in either
direction is variable between 25mm and 150mm. Customised mesh is available on request according to specifications
provided.
the Reinforcing Mesh Data Sheet
Standard sizes of welded mesh fabric
Specifications: Sheets: 6m x 2,4m or Rolls: 60m x 2,4m
Based on SABS 1024/2006 specifications for welded steel fabric for concrete reinforcement
| SHEETS ONLY | SHEET OR ROLLS | SHEETS ONLY | SHEETSORROLLS | ||||||||||||||||||||||||||||||||||||||||
MR Reference number | 888 | 746 | 617 | 500 | 395 | 311 | 245 | 193 | 100 | 156 | 200 | 1085 | 943 | 772 | 655 | 517 | 433 | 341 | 289 | 278 | 226 | 133 | ||||||||||||||||||||||
Mesh Size | Nominal | Main mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||||||||||||||
Cross mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 100 | 100 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 300 | 300 | 300 | ||||||||||||||||||||||
Wire Sizes | Main mm | 12 | 11 | 10 | 9 | 8 | 7,1 | 6,3 | 5,6 | 4,0 | 3,55 | 4,0 | 12 | 11 | 10 | 9 | 8 | 7,1 | 6,3 | 5,6 | 6,3 | 5,6 | 4,0 | |||||||||||||||||||||
Cross mm | 12 | 11 | 10 | 9 | 8 | 7,1 | 6,3 | 5,6 | 4,0 | 3,55 | 4,0 | 8 | 8 | 7,1 | 7,1 | 6,3 | 6,3 | 5,6 | 5,6 | 4,0 | 4,0 | 4,0 | ||||||||||||||||||||||
Cross Sectional Area | Main mm2 | 566 | 475 | 393 | 318 | 251 | 198 | 156 | 123 | 63 | 99 | 126 | 1131 | 951 | 786 | 636 | 503 | 396 | 312 | 246 | 312 | 246 | 126 | |||||||||||||||||||||
Cross mm2 | 566 | 475 | 393 | 318 | 251 | 198 | 156 | 123 | 63 | 99 | 126 | 251 | 251 | 198 | 198 | 156 | 156 | 123 | 123 | 42 | 42 | 42 | ||||||||||||||||||||||
Nominal Mass per m2 | kg | 8,88 | 7,46 | 6,17 | 5,00 | 3,95 | 3,11 | 2,45 | 1,93 | 1,00 | 1,56 | 2,00 | 10,85 | 9,43 | 7,72 | 6,55 | 5,17 | 4,33 | 3,41 | 2,89 | 2,78 | 2,26 | 1,33 | |||||||||||||||||||||
| SQUARE | GUNITE | STRUCTURAL | LONGITUDINAL | ||||||||||||||||||||||||||||||||||||||||
