Anping Stainless Steel Wire Mesh (Factory)

Anping Stainless Steel Wire Mesh (Factory) thumbnail-1
Anping Stainless Steel Wire Mesh (Factory) photo-1
US$ 5 - 20 MOQ: 500 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Weave Wire Mesh
Contact Supplier Request Quote Chat Now
Anping County Tianrui Metal Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Material Stainless Steel Wire
Type Weave Wire Mesh
Application Woven Wire Mesh
Weave Style Other, plain ,twill ,dutch
Wire Diameter 0.02-4mm
Technique Woven
Model Number 291
Brand Name TR

Specifications

Stainless steel wire mesh
ISO9001:2000 Certific
mesh/inch:2-400
wire diameter:0.025-4mm
material:ss304,304L,316,316L ,etc

                                                                     Stainless steel wire mesh



Hebei Anping TianRuui Wire Mesh Factory. produces a complete range of first-class stainless steel woven wire mesh and wire cloth products, including Square Opening Series Stainless Steel Wire Mesh (from 1mesh to 500mesh) and Cloth and Dutch Woven Series Stainless Steel Wire Cloth (from 12x64mesh to 400x2800mesh).
General Weaving Patterns of Stainless Steel Wire Mesh and Wire Cloth:

Stainless Steel Wire Mesh and Wire Cloth, Plain Weave
Stainless Steel Wire Mesh and Wire Cloth, Twill Weave
Stainless Steel Wire Mesh and Wire Cloth, Dutch Plain Weave
Stainless Steel Wire Mesh and Wire Cloth, Dutch Twill Weave

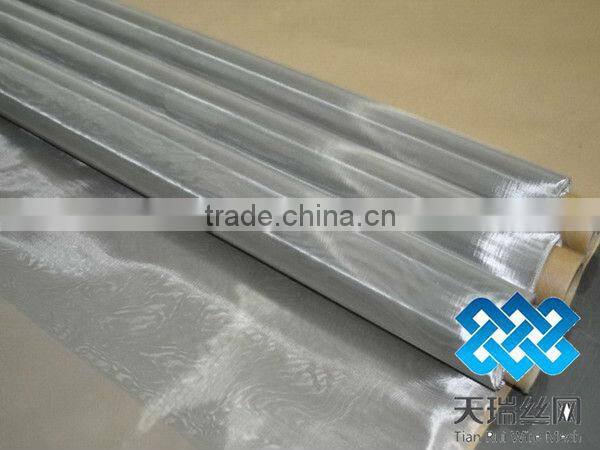

Anping Stainless steel wire mesh (Factory)



Materials:



Stainless steel wire materials in SUS302, 304, 316, 304L, 316L



Feature: Acid resistant,alkali resistant,heat resistant,corrosion resistant.



Applications:



In the condition of acidbase ,as sieving and filtering in oil,mining, petroleum, chemical, food, medicine, machinery manufacturing.



Product range:



usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per client’s requirement.

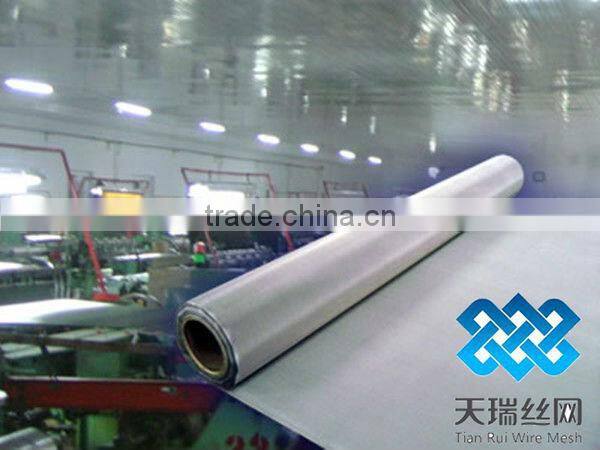

Anping Stainless steel wire mesh (Factory)

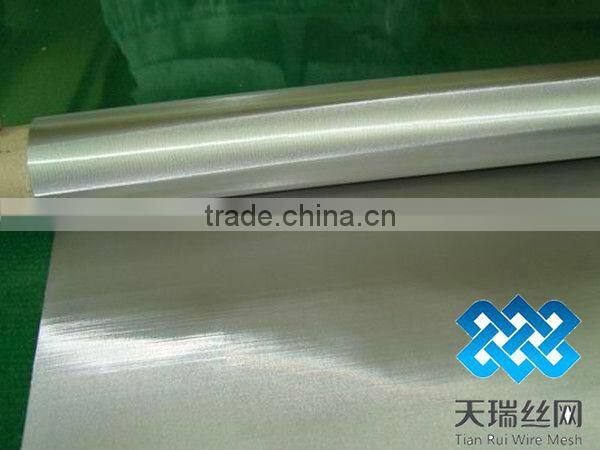

Anping Stainless steel wire mesh (Factory)

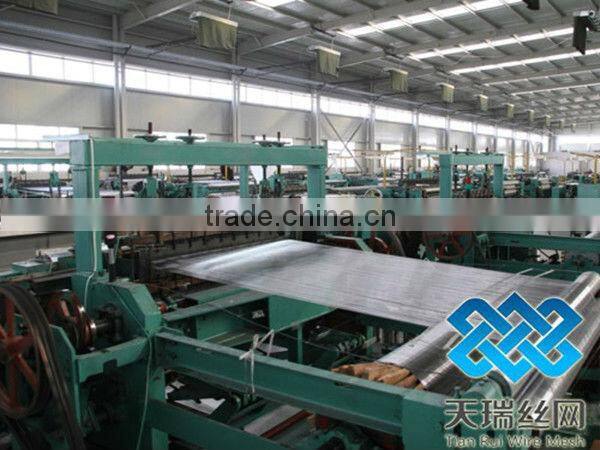

Anping Stainless steel wire mesh (Factory)

Specification:

Wire Gauge(SWG)

Mesh

Wire diameter

Aperture

Open Area

Weight(LB)/100 sq.foot

inch

mm

inch

mm

mm



14

3x3

0.054

1.37

0.279

7.09

70.1

56.7

16

4x4

0.047

1.19

0.187

4.75

65.9

57.6

18

5x5

0.041

1.04

0.159

4.04

63.2

54.9

20

10x10

0.025

0.64

0.075

1.91

56.3

41.2

38

50x50

0.009

0.229

0.012

0.31

30.3

28.4

42

80x80

0.0065

0.165

0.006

0.15

23.0

23.2

44

100x100

0.0045

0.114

0.0055

0.14

30.3

14.2

44

120x120

0.0037

0.094

0.0064

0.1168

30.7

11.6

46

160x160

0.0025

0.0635

0.0038

0.0965

36.4

5.94

47

200x200

0.0021

0.0533

0.0029

0.0737

33.6

6.2

48

250x250

0.0016

0.0406

0.0024

0.0610

36.0

4.4

49

300x300

0.0051

0.0381

0.0018

0.0457

29.7

3.04

49

325x325

0.0014

0.0356

0.0017

0.0432

30.0

4.4

50

400x400

0.0010

0.0254

0.0015

0.0370

36.0

3.3

50

500x500

0.0010

0.0254

0.0010

0.0254

25.0

3.8

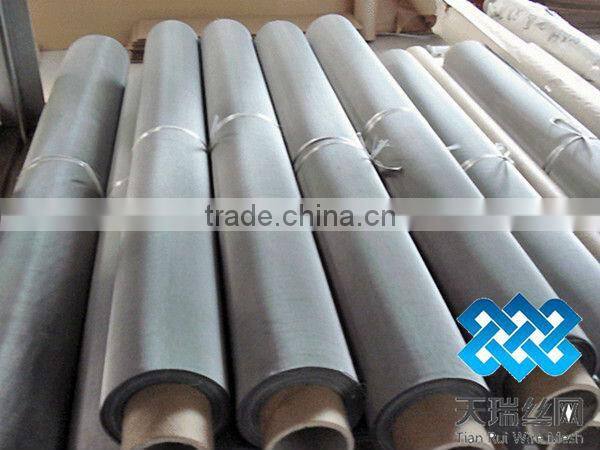

 Anping Stainless steel wire mesh (Factory)

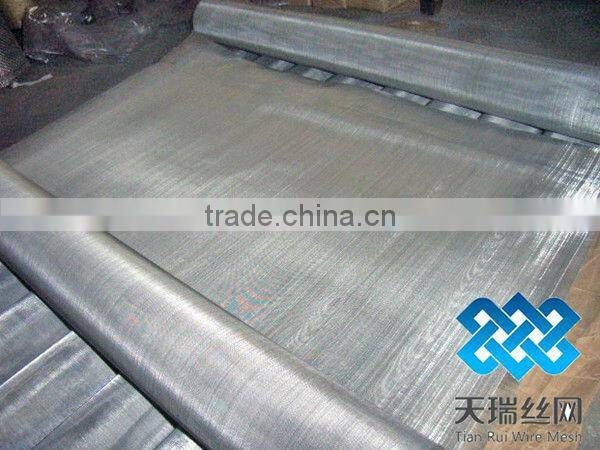

Anping Stainless steel wire mesh (Factory)



Anping Stainless steel wire mesh (Factory)

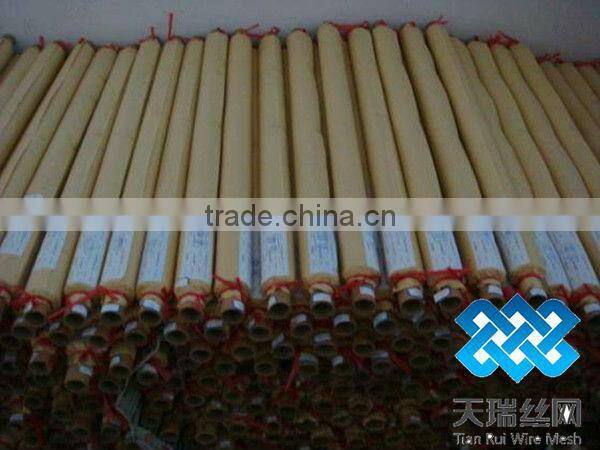

Packing Detail:

water-proof paper ,woven bag and also can be made as per client requirement

Anping Stainless steel wire mesh (Factory)



Anping Stainless steel wire mesh (Factory)





If you have any other enquire of the stainless steel wire mesh please contact us in your time, we are glad to give service to you.
