Help CenterHot Dip Galvanised Steel Bar Grating Steel Frame Lattice
Related Products
Specifications
1>hot dipped galvanized steel frame lattice2>ISO9001
3>direct manufacturer
4>high quality
5>various types

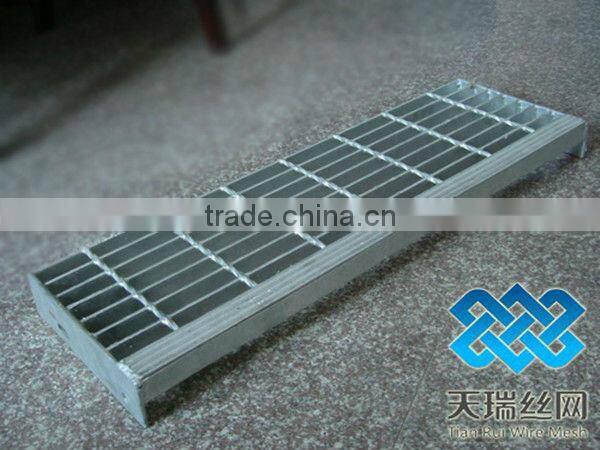

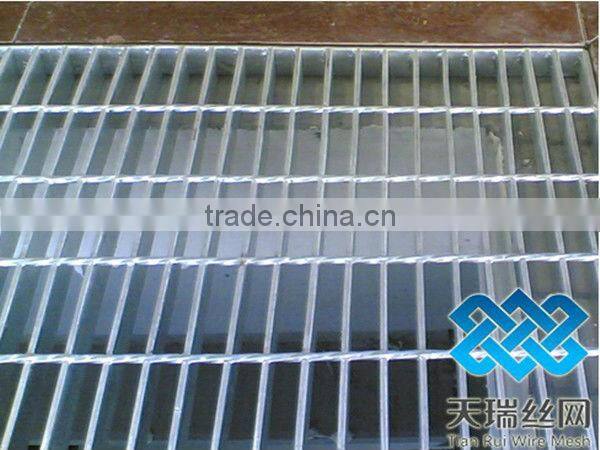

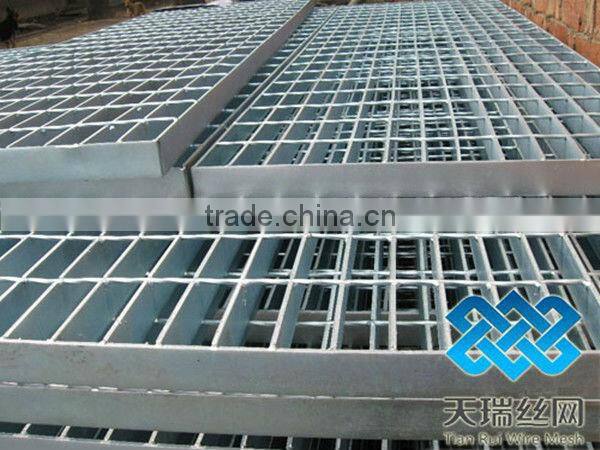

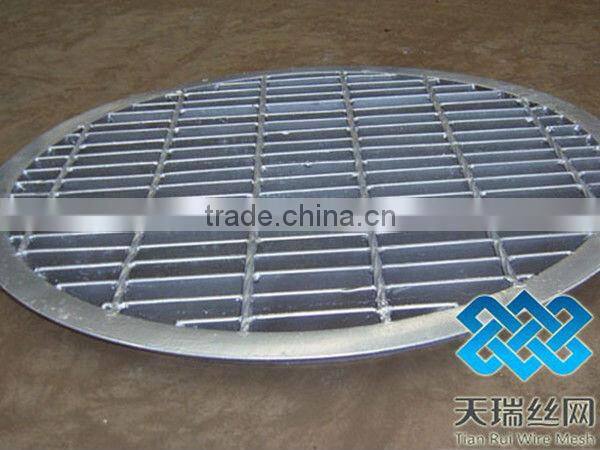

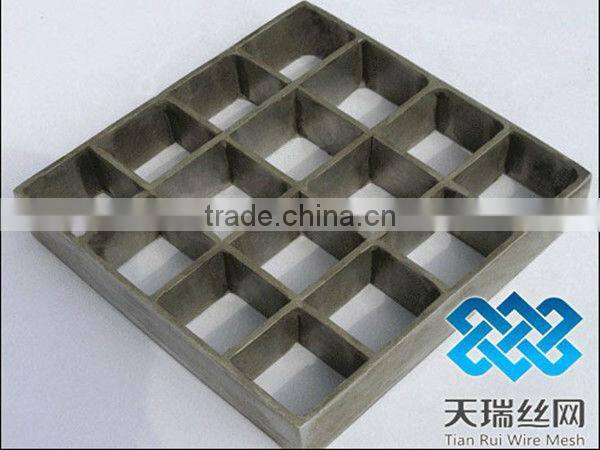

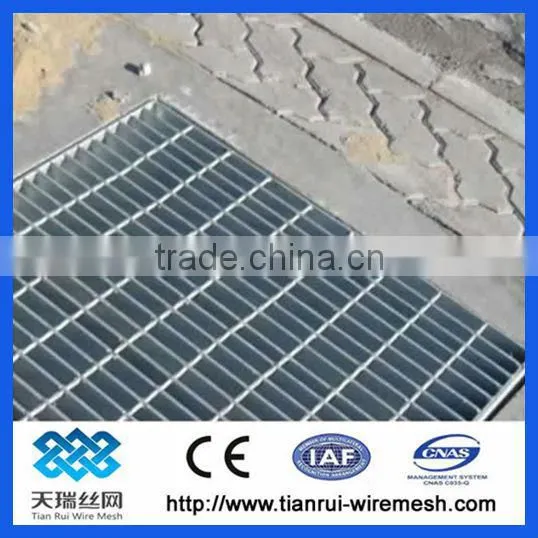

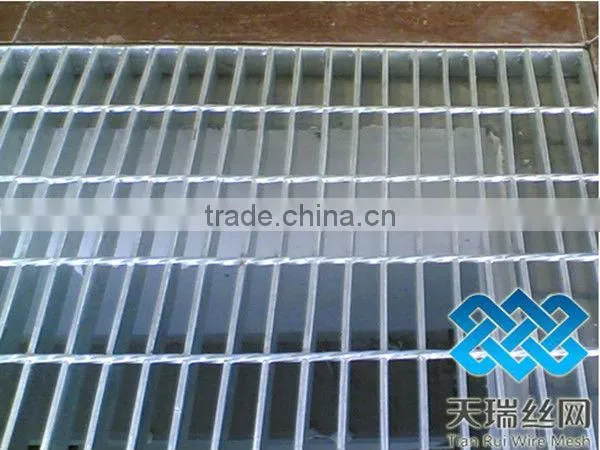

Steel frame lattice
Material:
high-intension carbon steel plate and galvanized iron plate
Characteristics:
light weight, high bearing capacity, safe and skid-proof, easily fixed and dismantled, economical ,long life and durable, ventilated and penetration of light, easily to be cleaned, beautiful in appearance.
Application:

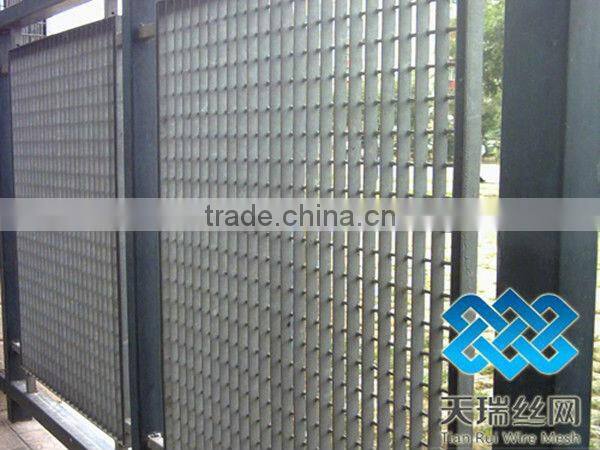

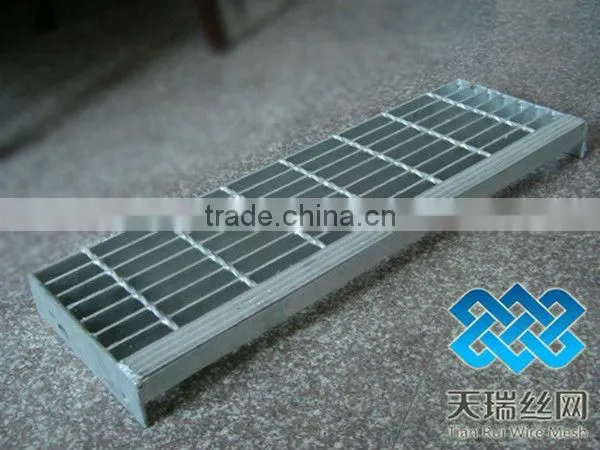

Widely used in electricity, petrochemical and chemical industry, metallurgy, machines, modeling, port, marine engineering, construction, papermaking, medicine, textile, food industry, transportation, municipal administration, parking-lot and some other fields. Also can be used as platform, floor, propylaea, stair step, trestle, fence wall and palisade, bilge limber board, well cover, suspended ceiling, ventilation and penetration of light, etc.
Specification:
Cross Rod Pitch |
load Bar Pitch |
load Bar Specification(Width×Thickness) |
|||||
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
||
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
|
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
|
60 |
50 |
- |
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
Cross Rod Pitch |
load Bar Pitch |
load Bar Specification(Width×Thickness) |
|||||
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
||
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
|
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
|
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |

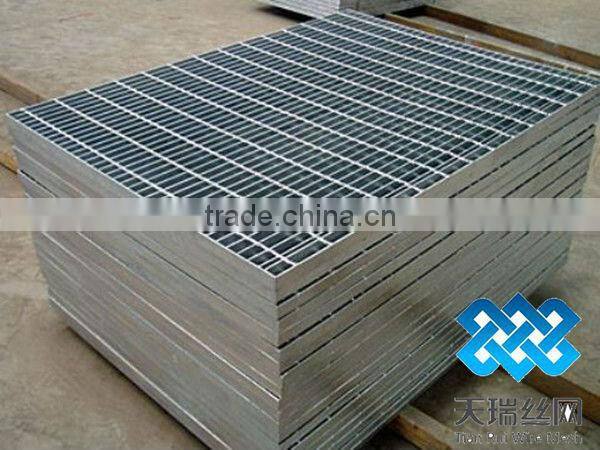

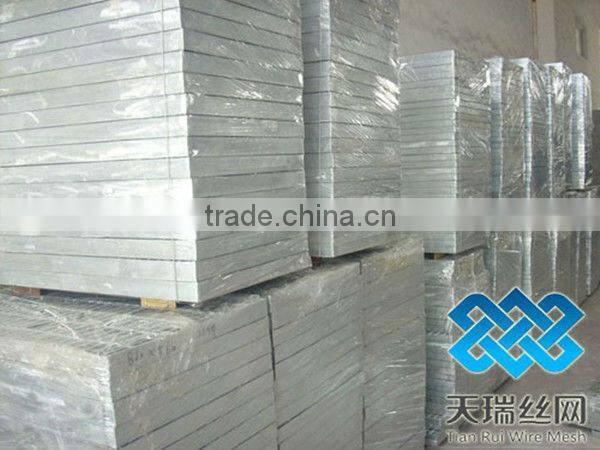

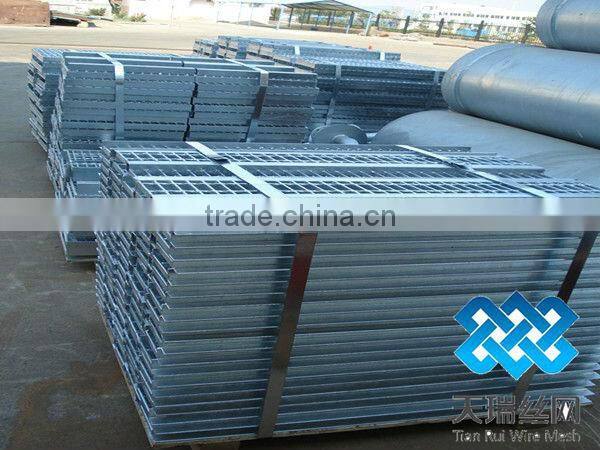

Packaging Detail:
normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane, or as customer requirement.
If you have any other enquire of the steel frame lattice please contact us in your time, we are glad to give service to you.
