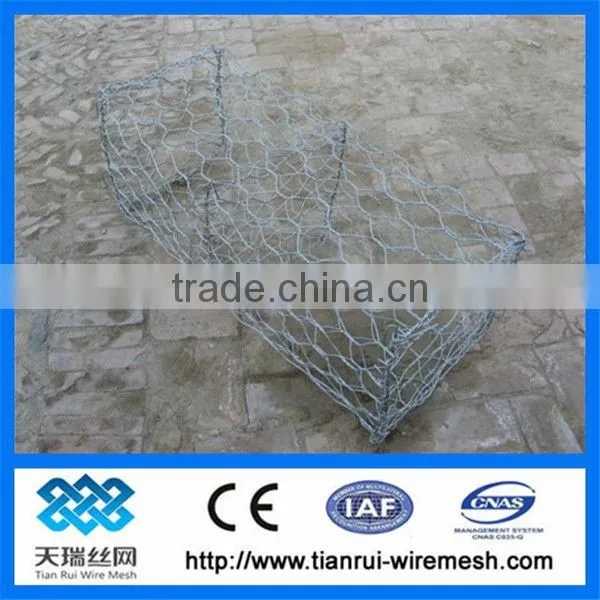

hexagonal wire mesh basket

Specifications

Specification :
1.Hole size :1/2''-4''
2.Width:0.5m 1m 1.5m 2m.
3.Length:1m-30m.
4.Diameter :BWG8---BWG26

                     Hexagonal wire mesh

1.Surface treatments(material):

1) Hot -dipped galvanized after weaving

2) Hot -dipped galvanized before weaving

3) Electro galvanized before weaving

4) PVC-coated

5)Stainless steel

5)Stainless steel

2.Material :

(1)Galvanized zinc coated





(2)PVC coated







(3)Stainless steel.









3.Introduce :



Hexagonal Wire Netting is also known as Chicken Netting, or Hexagonal Wire.It is made from low carbon steel wire, stainless steel wire Weaving pattern;straight twist, reverse twist, double-direction twist, Weaving before galvanized, weaving after galvanized. Electro galvanized, hot dipped, plastic-coated, stainless steel, PVC coated, etc.



4.Specification :





Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M) Mesh Wire Gauge (BWG) Inch mm 3/8" 10mm 27,26,25,24,23,22,21 1/2" 13mm 25,24,23,22,21,20, 5/8" 16mm 27,26,25,24,23,22 3/4" 20mm 25,24,23,22,21,20,19 1" 25mm 25,24,23,22,21,20,19,18 1-1/4" 32mm 22,21,20,19,18 1-1/2" 40mm 22,21,20,19,18,17 2" 50mm 22,21,20,19,18,17,16,15,14 3" 75mm 21,20,19,18,17,16,15,14 4" 100mm 17,16,15,14

Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M) Mesh Wire Gauge(BWG) Reinforcement Inch mm (BWG) Width(ft) Strand 1" 25mm 22,21,20,18 2' 1 1-1/4" 32mm 22,21,20,18 3' 2 1-1/2" 40mm 20,19,18 4' 3 2" 50mm 20,19,18 5' 4 3" 75mm 20,19,18 6' 5

Hex. wire netting PVC-coated (width of 0.5M-2.0M) Mesh Wire Dia(mm)   Inch mm 1/2" 13mm 0.9mm,0.1mm 1" 25mm 1.0mm,1.2mm,1.4mm 1-1/2" 40mm 1.0mm,1.2mm,1.4mm,1.6mm 2" 50mm 1.0mm,1.2mm,1.4mm,1.6mm

DIN1200, EN 10233-Z:1997, BS1485:1993)











5.Applications:



used for feeding Chicken, ducks, gooses, rabbits and the fence of zoo,machinery protection, speedway's fencing, stadium' purse net, the evanescence belt protection mesh on the road. If we use the mesh to make container box-like, then fill the container with riprap, it could be used for protecting and holding out the sea wall, hillside, bridge and other related civil engineering, it is the superior material for flood control













6.packing :









Welcome to send inquiry to me :
