Bird Cage Hexagonal Wire Mesh

Anping County Tianrui Metal Products Co., Ltd.

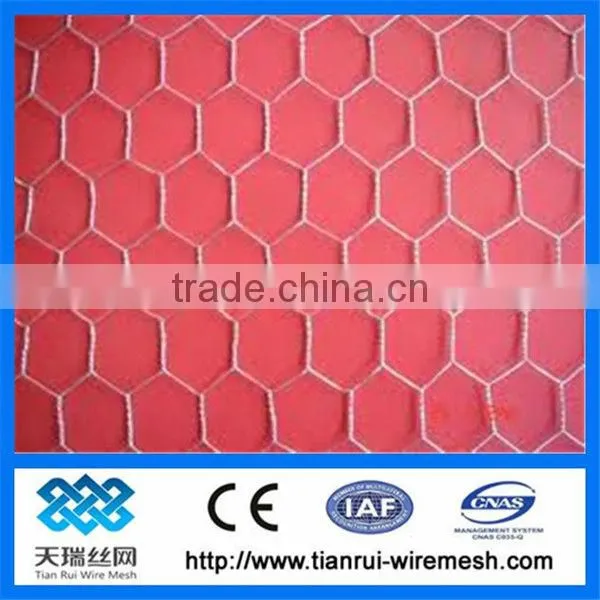

Bird Cage Hexagonal Wire Mesh thumbnail-1
Bird Cage Hexagonal Wire Mesh photo-1
US$ 8.26 - 26.94 MOQ: 30 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
tianrui
Model Number:
YCM--0127
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name tianrui
Model Number YCM--0127
Material Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire
Type Welded Mesh
Application Cages
Hole Shape Hexagonal
Aperture 1/2''-4''
Wire Gauge BWG8-26

Specifications

Specification :
1.Hole size :1/2''-4''
2.Width:0.5m 1m 1.5m 2m.
3.Length:1m-30m.
4.Diameter :BWG8---BWG26

                     Hexagonal wire mesh

1.Surface treatments(material):

1) Hot -dipped galvanized after weaving

2) Hot -dipped galvanized before weaving

3) Electro galvanized before weaving

4) PVC-coated

5)Stainless steel

5)Stainless steel

2.Material :

(1)Galvanized zinc coated

bird cage hexagonal wire mesh



bird cage hexagonal wire mesh



bird cage hexagonal wire mesh

(2)PVC coated



bird cage hexagonal wire mesh



bird cage hexagonal wire mesh



bird cage hexagonal wire mesh

(3)Stainless steel.



bird cage hexagonal wire mesh



bird cage hexagonal wire mesh





3.Introduce :



Hexagonal Wire Netting is also known as Chicken Netting, or Hexagonal Wire.It is made from low carbon steel wire, stainless steel wire Weaving pattern;straight twist, reverse twist, double-direction twist, Weaving before galvanized, weaving after galvanized. Electro galvanized, hot dipped, plastic-coated, stainless steel, PVC coated, etc.



4.Specification :





Galvanized hex. wire netting in normal twist (width of 0.5M-2.0M)

Mesh

Wire Gauge (BWG)

Inch

mm

3/8"

10mm

27,26,25,24,23,22,21

1/2"

13mm

25,24,23,22,21,20,

5/8"

16mm

27,26,25,24,23,22

3/4"

20mm

25,24,23,22,21,20,19

1"

25mm

25,24,23,22,21,20,19,18

1-1/4"

32mm

22,21,20,19,18

1-1/2"

40mm

22,21,20,19,18,17

2"

50mm

22,21,20,19,18,17,16,15,14

3"

75mm

21,20,19,18,17,16,15,14

4"

100mm

17,16,15,14





Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M)

Mesh

Wire Gauge(BWG)

Reinforcement

Inch

mm

(BWG)

Width(ft)

Strand

1"

25mm

22,21,20,18

2'

1

1-1/4"

32mm

22,21,20,18

3'

2

1-1/2"

40mm

20,19,18

4'

3

2"

50mm

20,19,18

5'

4

3"

75mm

20,19,18

6'

5





Hex. wire netting PVC-coated (width of 0.5M-2.0M)

Mesh

Wire Dia(mm)



Inch

mm

1/2"

13mm

0.9mm,0.1mm

1"

25mm

1.0mm,1.2mm,1.4mm

1-1/2"

40mm

1.0mm,1.2mm,1.4mm,1.6mm

2"

50mm

1.0mm,1.2mm,1.4mm,1.6mm





DIN1200, EN 10233-Z:1997, BS1485:1993)











5.Applications:



used for feeding Chicken, ducks, gooses, rabbits and the fence of zoo,machinery protection, speedway's fencing, stadium' purse net, the evanescence belt protection mesh on the road. If we use the mesh to make container box-like, then fill the container with riprap, it could be used for protecting and holding out the sea wall, hillside, bridge and other related civil engineering, it is the superior material for flood control





bird cage hexagonal wire mesh



bird cage hexagonal wire mesh



bird cage hexagonal wire mesh





6.packing :



bird cage hexagonal wire mesh



bird cage hexagonal wire mesh





Welcome to send inquiry to me :





bird cage hexagonal wire mesh
