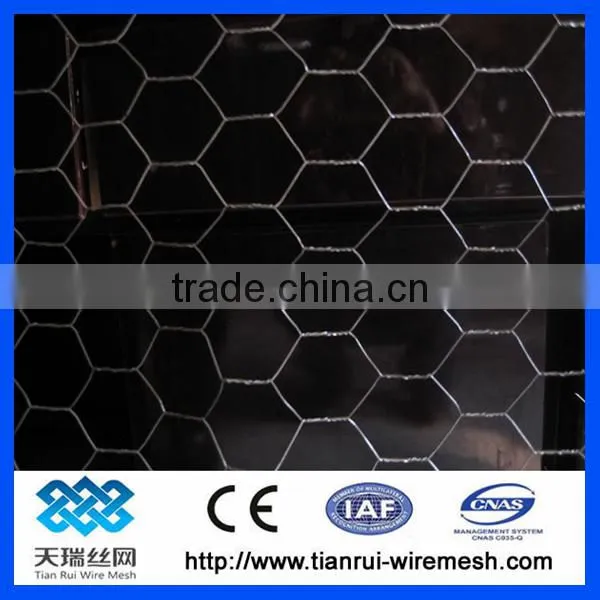

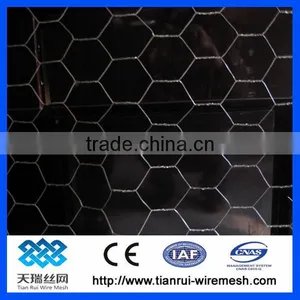

hexagonal wire mesh & hexagonal wire netting & chicken wire mesh Material:low carbon steel wire,stainless steel wire etc.Weaving Patterns: Straight twist, reverse twist, double twist.Process: Galvanized after weaving or galvanized before weaving.Finish: Electric galvanizing, hot-dip zinc plating, stainless steel or PVC coated.
Characteristics:Have good corrosion resistance and oxidation resistanceApplication:It is extensively used in building as reinforcement of the roof and floor, it is also used as fence for poultry cage, fish garden and children playground.
Characteristics:
1.Straight twist, reverse twist, double twist.
2.PVC coated hexagonal wire mesh is coated PVC with galvanized wire surface then weaved to various specification hexagonal mesh. The protect of PVC can increase the mesh's life, UV Resistance, aging resistance and weather resistance .Different color choices, it can be integrated with the surrounding natural environment
3.Galvanized hexagonal wire netting use of low carbon steel wire weave,the steel wire of tensile strength of not less than 20kg/m2,steel wire diameter can reach 0.3mm-2.0mm,the surface tratement we can choose of electric galvanizing and hot
dip zinc plating to protect, the thickness of galvanized protect we can make it as clients requires.
The Zinc-coating we can maked to 300g/ m²
Application
(1) Fixed the construction wall surface, heat preservation, heat insulation
(2) The power plant grips the pipeline, to maintain warmth the boiler, heat preservation(3) Frostproof, housing protection, botanical garden afforestation protection(4)Raises chicken and the duck, isolates chicken and duck shed, Protects Poultry.(5) To protect the seawall, hillsides, road ,bridge projects and so on.
Data Sheet:
Specification |
Wire Gauge(BWG) |
Note |
1.5CM1/2" |
22 |
width limit:2M,single or double edge |
24 | ||
2CM3/4" |
20 |
width limit:2M,single or double or strong edge |
22 | ||
24 | ||
1.8CM5/8" |
21 |
width limit:4',single or double edge |
23 | ||
25 | ||
2.5CM1" |
19 |
width limit:2M,straight or reversed twist |
21 | ||
23 | ||
3CM1.25" |
19 |
width limit:2M,straight or reversed twist |
21 | ||
4CM1.5" |
18 |
width limit:2M |
20 | ||
22 | ||
5CM2" |
18 |
width limit:2M |
20 | ||
22 | ||
Weaving pattern |
straight twist, reverse twise, and double-direction twist |
|
Others |
PVC Hexagonal wire netting (Green,white,grey etc.) |
|
Products Display:
Contact Information:
At your service at any time! High quality,reasonable in price!
...
