Specifications
1.Wire diameter:2-4mm2.Mesh size : 60x80mm, 80x100,80x120,100x120,120x150
3.Gabion size :2x1x1,3x1x1, 4x1x1 ,2x1x0.5, 4x1x0.5
Gabion mesh
1.Introduction: Gabion is made of hexagonal wire mesh, the wire diameter is basis on the different sizes of hexagon. If the wire is zinc coated, the wire diameter should be 2.0mm to 4.0mm, if it is PVCcoated, the wire should be 3.0mm to 4.5mm, Then the edge wire should be thicker one size wire guage than the hexagonal mesh wire.
2.Material:
1.galvanized wire: low carbon still wire with diameter ranging from 2.0mm to 4.0mm, tensile strength≥380mpa, the wire surface is galvanized, the thickness of zinc layer is customizable , the max zinc content is 300g/m2
2.zinc-5% aluminum-mixed mischmetal alloy steel wire: a new-type material with diameter ranging from 2.0mm to 4.0mm, tensile strength≥380mpa. it offers as more than three times the corrosion resistance of pure zinc
3.galvanized steel wire, PVC or PE coated: PVC or PE coating will provide great protection to the gabion wire mesh, especially in a high-pollution environment.
4.zinc-5%aluminmixed mischmetal alloy steel wire, PVC or PE coated: the steel wire is coated with a PVC or PE protective layer, which provides protection against pollution and can be available in various colors.
3.Specifications:
1. Standard Gabion Size
Standard Gabion Size | |||
Length(m) | Width(m) | Height(m) | Cells |
1.0 | 1.0 | 1.0 | 1 |
1.5 | 1.0 | 1.0 | 1 |
2.0 | 0.5 | 0.5 | 2 |
2.0 | 1.0 | 0.5 | 2 |
2.0 | 1.0 | 1.0 | 2 |
3.0 | 1.0 | 0.5 | 3 |
3.0 | 1.0 | 1.0 | 3 |
4.0 | 1.0 | 1.0 | 4 |
4.0 | 1.0 | 1.0 | 4 |
Custom sizes are also available | |||
2. Leno Mattress Specification:
Length(m) | Width(m) | Height(m) | Mesh(m) |
3m | 2m | 0.15-0.20-0.25 | 5x7 |
4m | 2m | 0.15-0.20-0.25 | 5x7 |
5m | 2m | 0.15-0.20-0.25 | 5x7 |
6m | 2m | 0.15-0.20-0.25 | 5x7 |
3m | 2m | 0.17-0.23-0.30 | 6x8 |
4m | 2m | 0.17-0.23-0.30 | 6x8 |
5m | 2m | 0.17-0.23-0.30 | 6x8 |
6m | 2m | 0.17-0.23-0.30 | 6x8 |

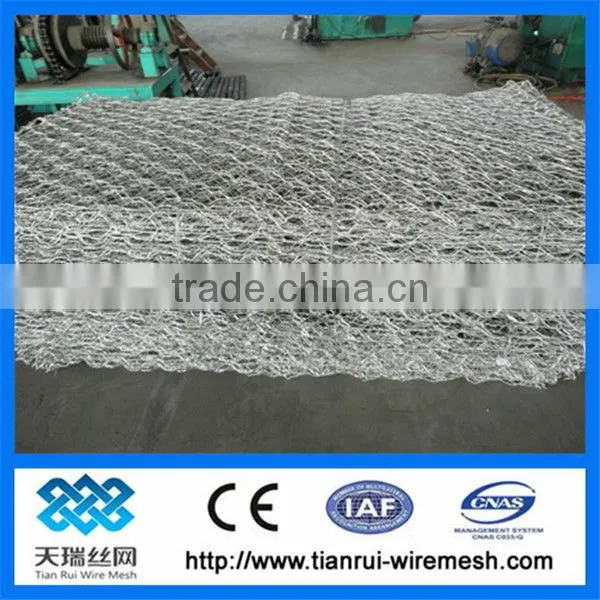

4.Galvanized gabion mesh :
5.PVC Coated gabion mesh :
6. Application:
Gabion boxes applications:Control and guide of water or flood .Flood bank or guiding bank Preventing of rock breakingWater and soil protection
Bridge protection Strengthening structure of soilProtection engineering of seaside area.
7.Features:
1.Economical. you just need to put stones in the mesh and then seal it
2.Flexible. corrosion resistant and can stand up to extreme weather
3.Simple struction , requiring no special technique
4.the silt between the wire mesh and stone contributes to plant grows. this makes the gabion mesh harmonious with the surrounding natural environment
5.Good permeability of the mesh prevents damage caused by hydrostatic force, thus helping ensure the stability of hillside and beach
6.the gabion mesh folding and can be assembled on side, which saves on transport costs
8. Machine making process:
9. Packing :
50-100gabion meshes per bundle, wrapped with 2-4 steel strips
