Alkali-resistant Fiberglass mesh is a glass fiber woven fabric as a substrate by immersion coating polymer latex resistance. Which has good resistance to alkaline, as well as the latitude and longitude to a high degree of flexibility, tensile strength, can be widely used in building internal and external wall insulation, waterproofing, anti-crack and so on.
Specifications:
1. Opening: 5mm×5mm(standard),4mm×4mm
2. Each square meter gram:75g-----180g
3. Each roll length: 50m ,100or 200m
4. Width:1m-2m
5. Color: white(standard) blue, green, and other colors
6. Packaging: Each roll plastic bag packaging, four volumes, or six volumes of a carton, a 40-foot cabinet can be mounted 80,000-150,000 square meters.
7. Special specification according to customer's requirement .
3.Technical date sheet
| Item Number | Yarn(Tex) | Mesh(mm) | Density Count/25mm | Finish Weight(g/m2) | Tensile Strength × 20cm | Woven Structure | Content of resin%(≥) | ||||
| Warp | Weft | Warp | Weft | Warp | Weft | Warp | Weft | ||||
| 5x5-70 | 45×2 |
200 | 5 | 5 | 5 | 5 | 70 | 550 | 850 | Leno | 16 |
| 5x5-80 | 67×2 |
200 | 5 | 5 | 5 | 5 | 80 | 700 |
850 | Leno | 16 |
| 5x5-90 | 67×2 |
250 | 5 | 5 | 5 | 5 | 90 | 700 | 1050 | Leno | 16 |
| 5x5-110 | 100×2 |
250 | 5 | 5 | 5 | 5 | 110 | 800 | 1050 | Leno | 16 |
| 5x5-125 | 134×2 |
250 | 5 | 5 | 5 | 5 | 125 | 1200 | 1300 | Leno | 16 |
| 5x5-135 | 134×2 |
300 | 5 | 5 | 5 | 5 | 135 | 1300 | 1400 | Leno | 16 |
| 4x4-135 | 100×2 |
250 | 4 | 4 | 6 | 6 | 135 | 1000 | 1300 | Leno | 16 |
| 5x5-145 | 134×2 |
360 | 5 | 5 | 5 | 5 | 145 | 1200 | 1300 | Leno | 16 |
| 4x5-150 | 134×2 |
300 | 4 |
5 | 6 | 5 | 150 | 1300 | 1300 | Leno | 16 |
| 5x5-160 | 134×2 |
400 | 5 | 5 | 5 | 5 | 160 | 1450 | 1600 | Leno | 16 |
| 4x4-160 | 134×2 |
300 | 4 | 4 | 6 | 6 | 160 | 1550 | 1650 | Leno | 16 |
| 4x5-165 | 134×2 |
350 | 4 | 5 | 6 | 5 | 165 | 1300 | 1300 | Leno | 16 |

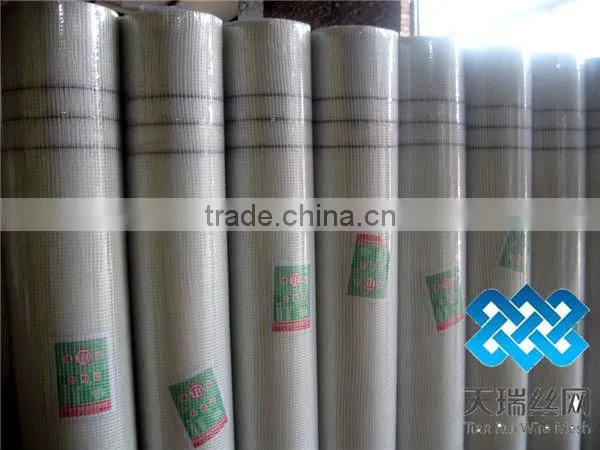

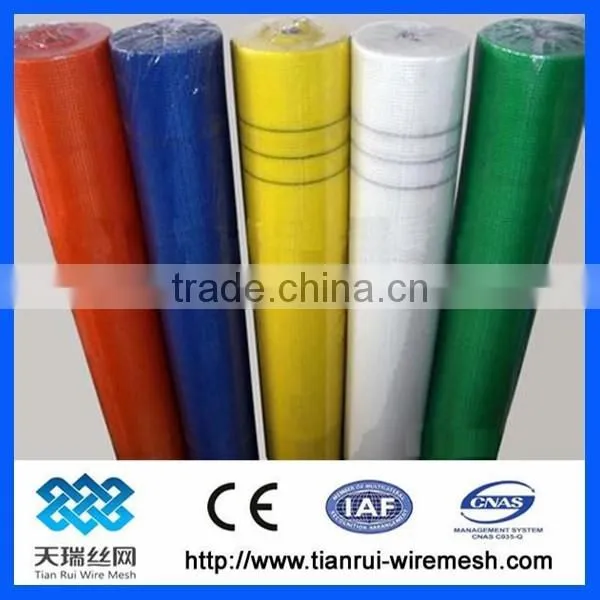

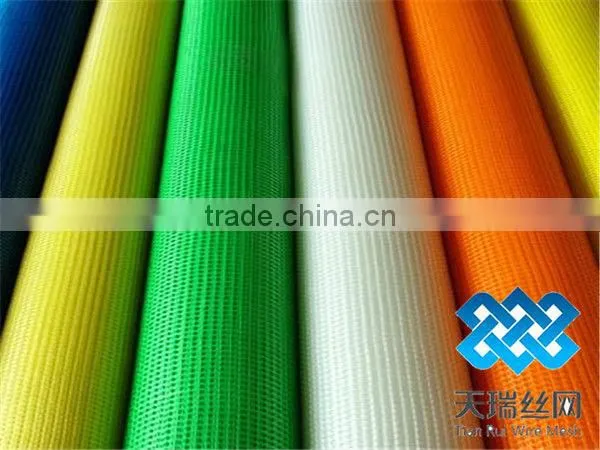

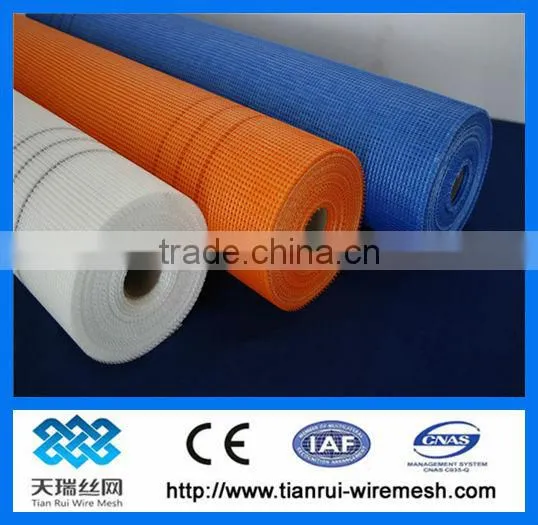

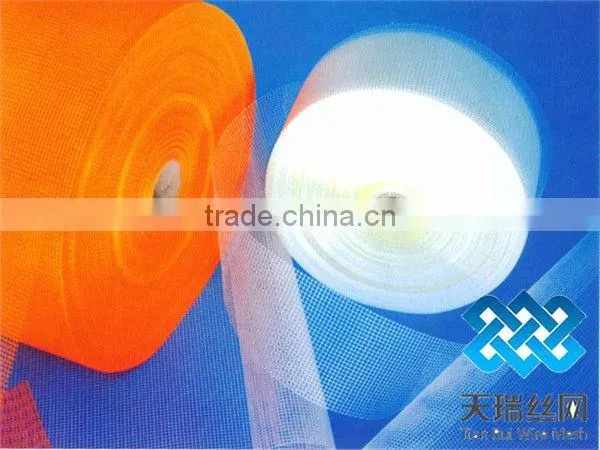

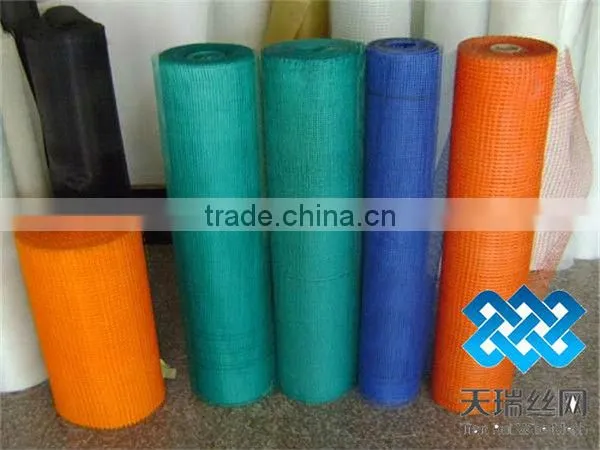

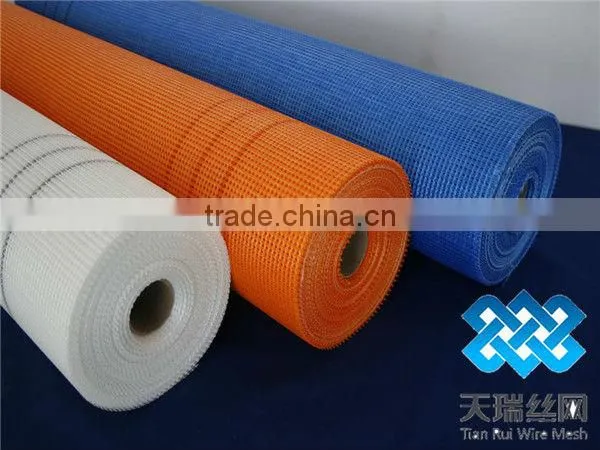

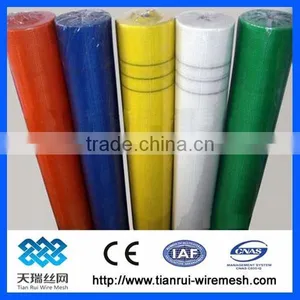

pictures :
