Home > Chemicals > Fiberglass Products > Fiberglass Mesh > Glass Fiber Mesh Cloth

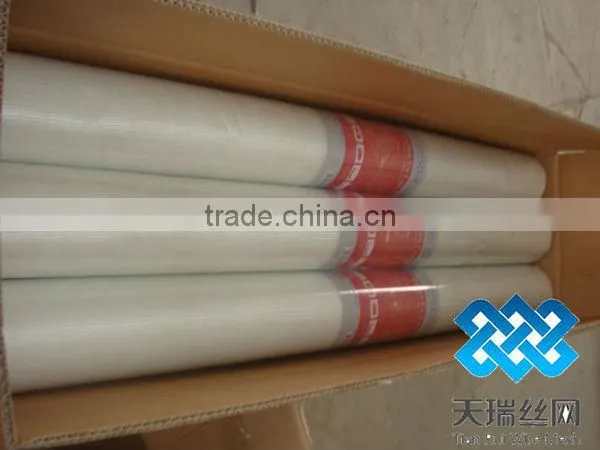

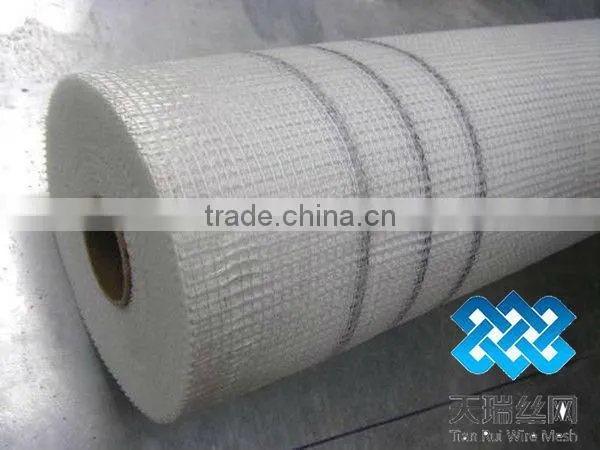

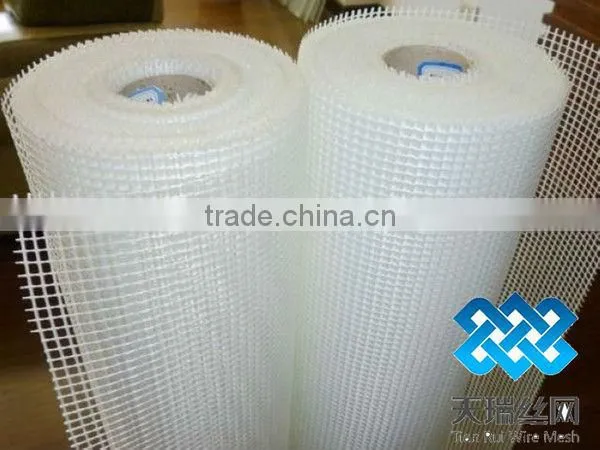

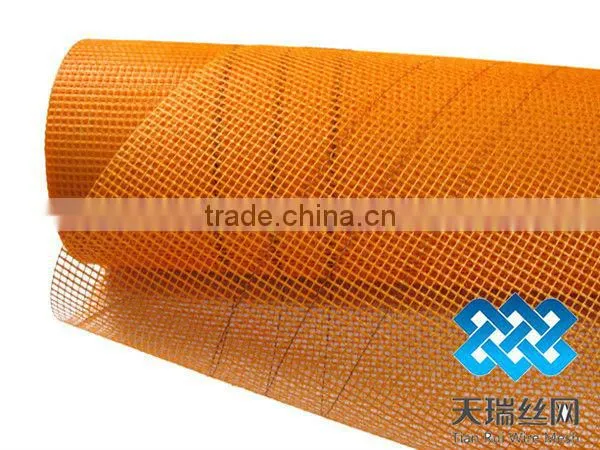

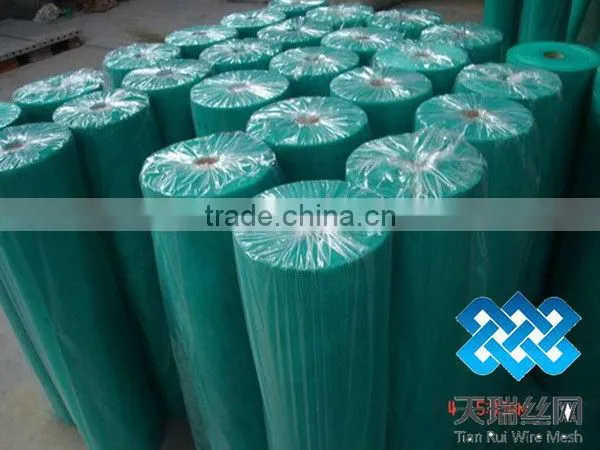

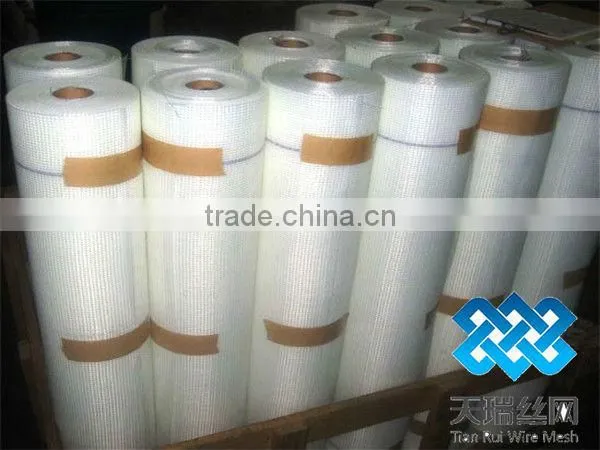

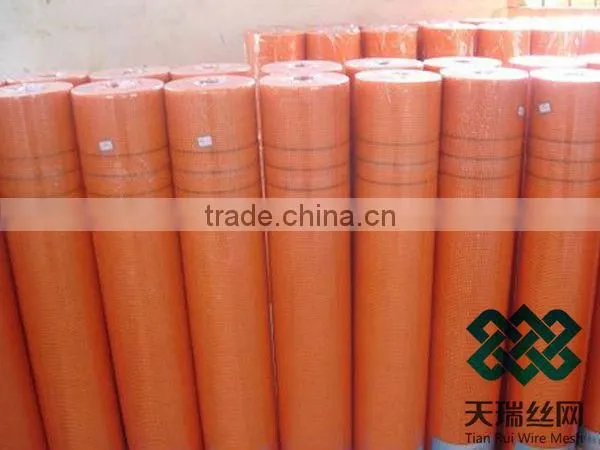

Glass Fiber Mesh Cloth

US$ 8 - 28 MOQ: 100 Rolls

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

Model Number:

166

Contact Supplier Request Quote Chat Now

Anping County Tianrui Metal Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name TR

Model Number 166

Application Wall Materials

Weight 70-160g

Width 1-3m

Mesh Size 50-200m

Weave Type Plain Woven

Yarn Type E-Glass

Alkali Content Medium

Standing Temperature 300

Fiberglass mesh

mainly alkali-resistant fiberglass fabric, it made of the C or E glass fiber yarn (main ingredient is a silicate, good chemical stability) through a special weaving technique, then coated by the anti-alkali and reinforcing agent and treated by high temperature heat finishing. It’s ideal engineering material in construction and decoration industry

Application:

1. Wall reinforced material (such as fiberglass wall mesh, GRC wall panels, EPS insulation with the wall board, gypsum board, bitumen etc)

2. Reinforced cement products.

3. Used for Granite, mosaic, marble back mesh etc.

4.Waterproof membrane fabric, asphalt roofing.

5. Framework material for reinforced plastics, rubber products,.

6. Fire board.

7. Grinding wheel base fabric.

8. Road surface with geogrid

9. Construction caulking tape etc.

Useage:

1. 75g / m2 or less: Used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.

2.110g / m2 or about: Widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .

3.145g/m2 or about: Used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).

4.160g / m2 or about: Used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.

Specifications:

1. 16x16 mesh, 15x14 mesh, 12x12 mesh, 10x10 mesh, 9x9 mesh, 8x8 mesh, 6x6 mesh, 5x5 mesh, 5x4 mesh, 4x4 mesh, 3x3 mesh, 2.5x2.5 mesh, 1x1 mesh and so on

2. Weight/ter: 40g—800g

3. Each roll length: 10m,20m,30m,50m—300m

4. Width: 1m—2.2m

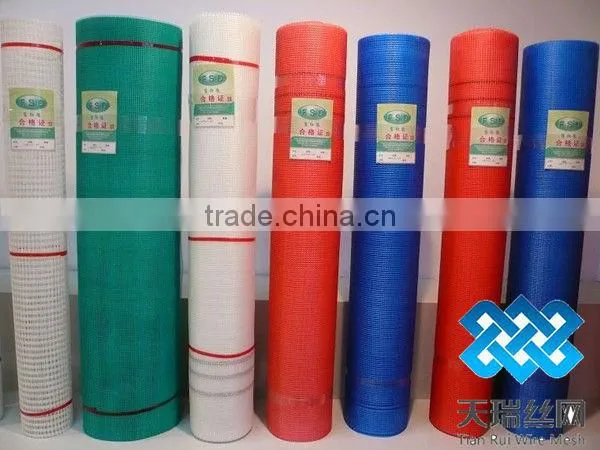

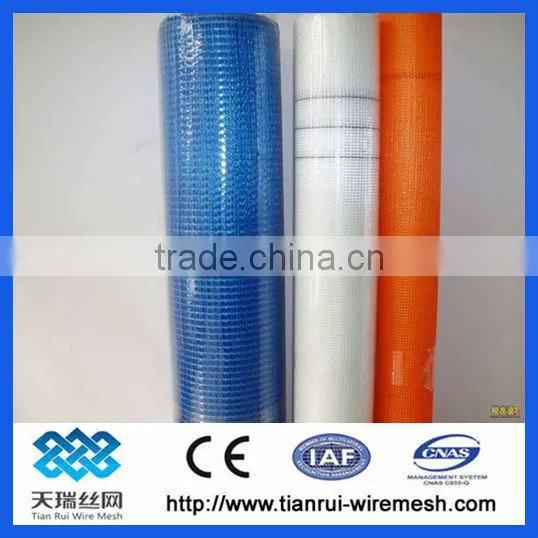

5. Color: White (standard) blue, green, orange, yellow and others.

6. We can produce many specifications and use different packaging according to customers’ requests.

Technical date sheet

Item Number	Yarn(Tex)		Mesh(mm)		Density Count/25mm		Finish Weight(g/m2)	Tensile Strength × 20cm		Woven Structure	Content of resin%(≥)
Item Number	Warp	Weft	Warp	Weft	Warp	Weft	Finish Weight(g/m2)	Warp	Weft	Woven Structure	Content of resin%(≥)
5x5-70	45×2	200	5	5	5	5	70	550	850	Leno	16
5x5-80	67×2	200	5	5	5	5	80	700	850	Leno	16
5x5-90	67×2	250	5	5	5	5	90	700	1050	Leno	16
5x5-110	100×2	250	5	5	5	5	110	800	1050	Leno	16
5x5-125	134×2	250	5	5	5	5	125	1200	1300	Leno	16
5x5-135	134×2	300	5	5	5	5	135	1300	1400	Leno	16
4x4-135	100×2	250	4	4	6	6	135	1000	1300	Leno	16
5x5-145	134×2	360	5	5	5	5	145	1200	1300	Leno	16
4x5-150	134×2	300	4	5	6	5	150	1300	1300	Leno	16
5x5-160	134×2	400	5	5	5	5	160	1450	1600	Leno	16
4x4-160	134×2	300	4	4	6	6	160	1550	1650	Leno	16
4x5-165	134×2	350	4	5	6	5	165	1300	1300	Leno	16
