heavy duty expanded metal mesh /small hole expanded metal mesh

Specifications

1Sheet thickness:0.5-6mm
2Aluminum, stainless steel. Galvanized iron
3Variety: small medium and heavy
4Shape:diamond hexagoal

                 Expand metal mesh

Material:

ordinary plate rolling,galvanized plate,aluminum plate,steel plate,Ti plate,Ni plate. Our products with high quality.

Variety:

small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh,

expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening

 in the shape of diamond, hexagonal or special shape.

Use:

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering

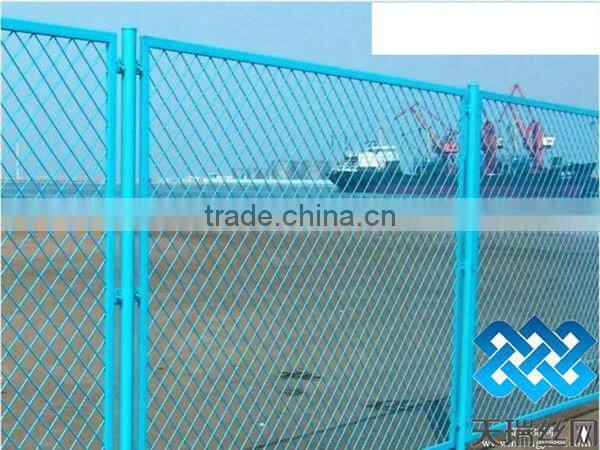

screen for first class sound case. Also fencing for super highway,

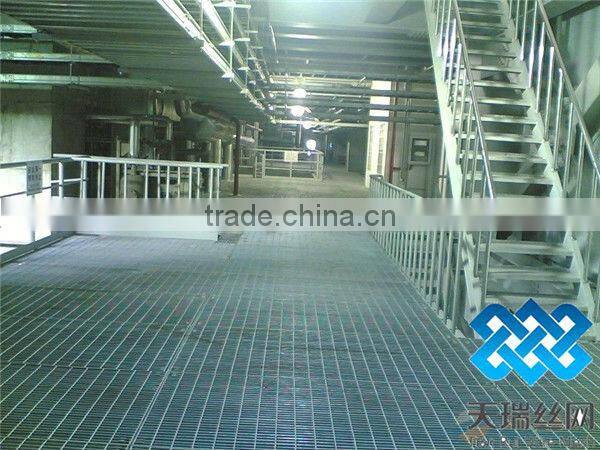

studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking

road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing

bar in construction, railway and bridges.

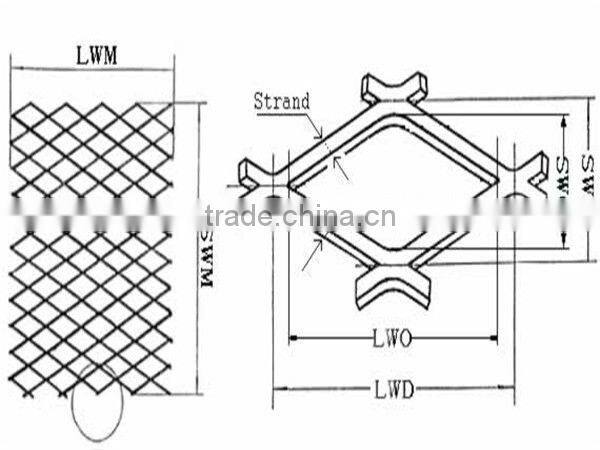

Sizes:

•Long way of mesh: TB: 12.5-200mm •Short way of mesh: 5-80mm •Thickness: d: 0.5-8mm •Expanded metal mesh at length from 600-4000mm and width from 600-2000mm

Specification :



specifications				width (m)	length (m)	weight (kg/m2)
mesh thickness(mm)	distance short(mm)	distance long(mm)	strip(mm)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

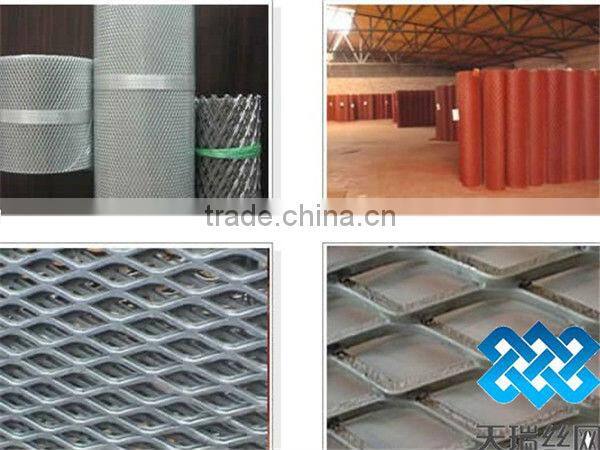

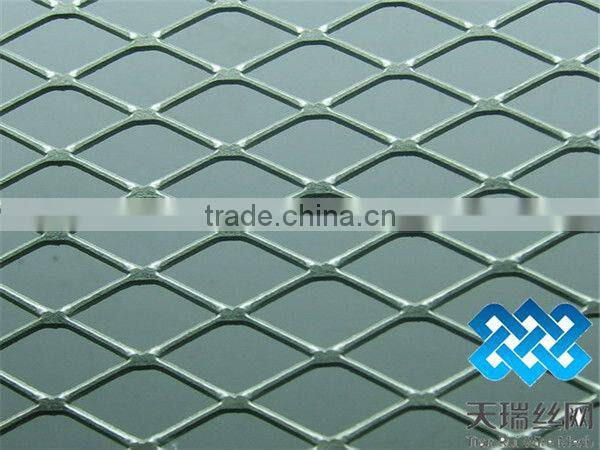

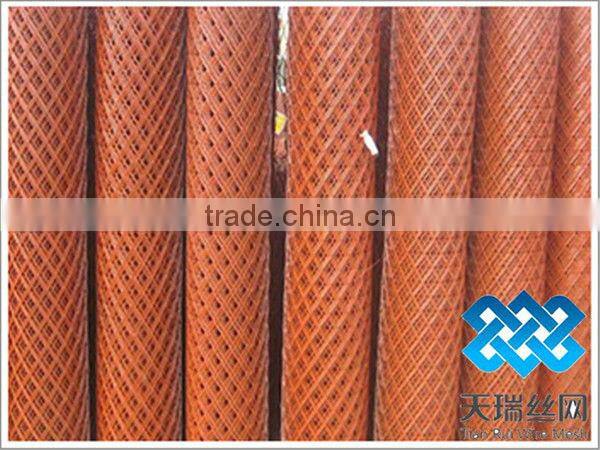

expand metal mesh products:

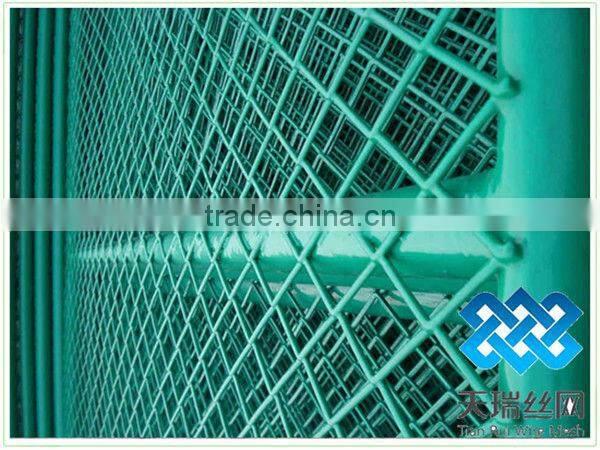

expandmetal mesh application :





welcome to send inquire to me :
